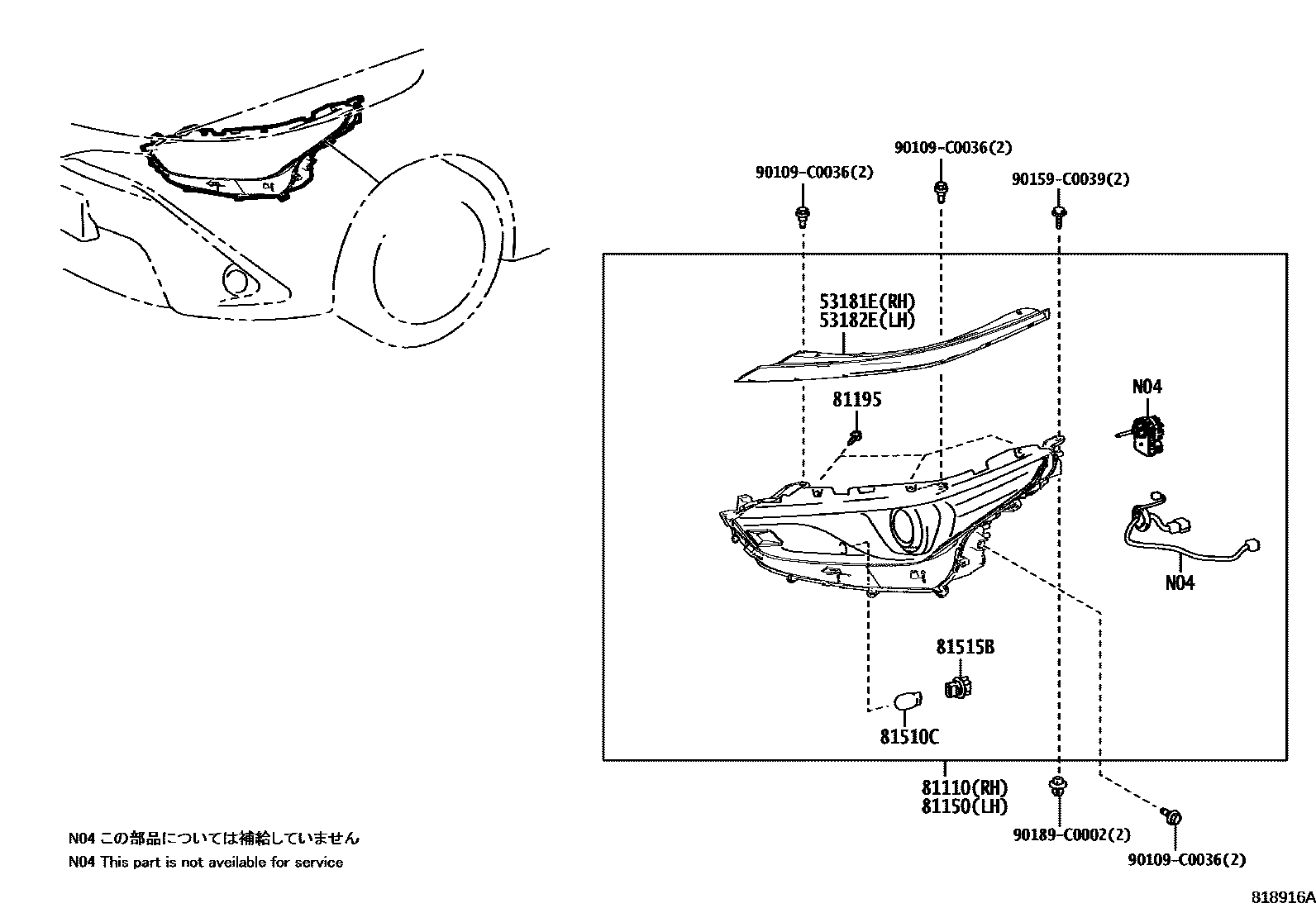

HEADLAMP

53181ECOVER, HEADLAMP, RH

main81116-02V30iZWE183201904

53182ECOVER, HEADLAMP, LH

main81156-02V30iZWE183201904

81110HEADLAMP ASSY, RH

main81110-02V30iZWE183201904-202012

main81110-02V31iZWE183202012

81150HEADLAMP ASSY, LH

main81150-02V30iZWE183201904-202012

main81150-02V31iZWE183202012

81195SCREW, HEADLAMP

main90075-02063iZWE183201904

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iZWE183201904

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iZWE183201904

90109C0036

main90109-C0036

90159C0039

main90159-C0039

90189C0002

main90189-C0002

10 parts on this diagram · 1 diagram in section
