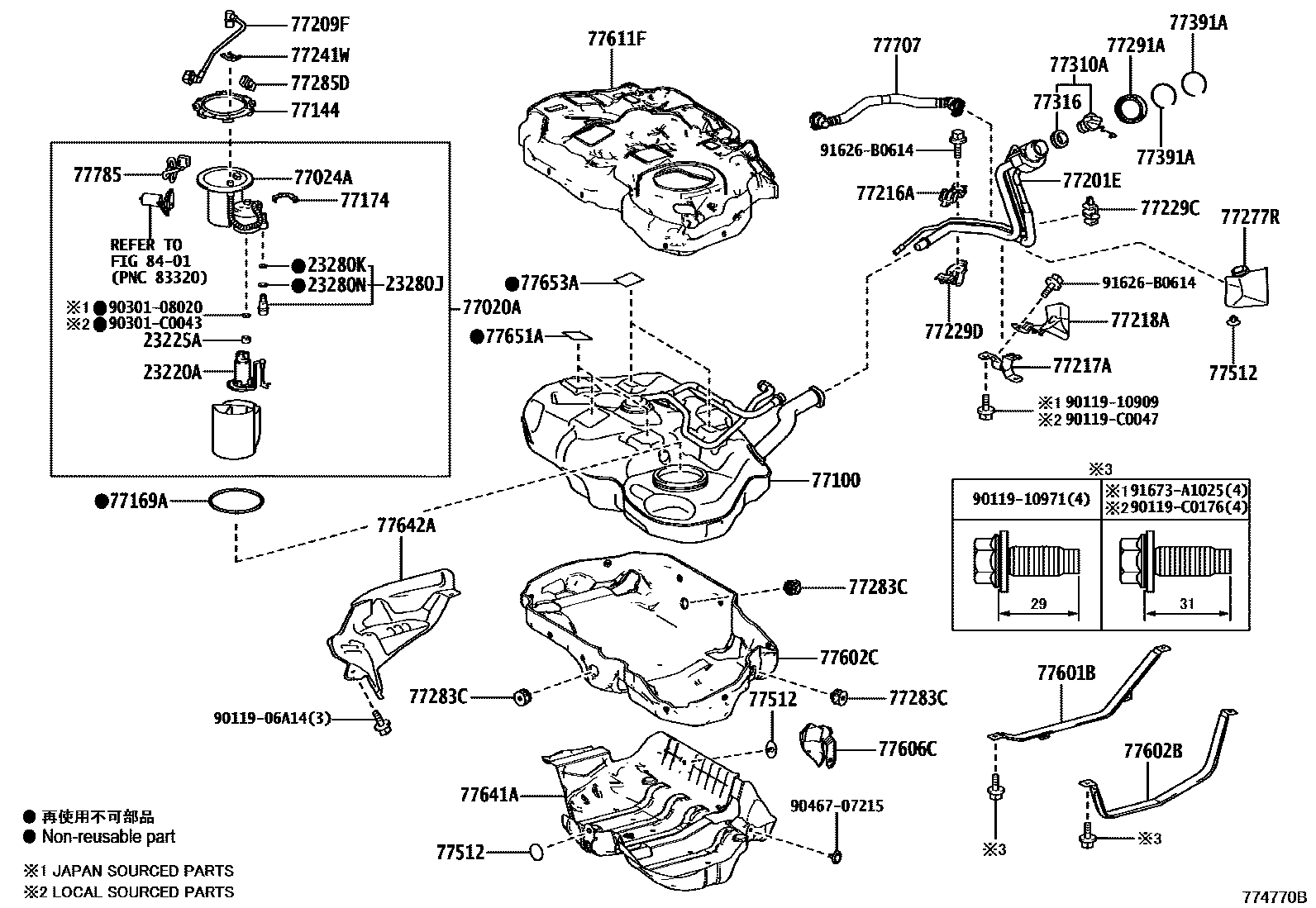

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1CHARCOAL CANISTER 0004 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0M070i8ZRFXE..ZWE183201904

23225ASPACER, FUEL PUMP

main23225-0H020i8ZRFXE..ZWE183201904

(L)

main23225-21020i8ZRFXE..ZWE183201904

(J)

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i8ZRFXE..ZWE183201904

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i8ZRFXE..ZWE183201904

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i8ZRFXE..ZWE183201904

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02C70iZWE183201904-202204

sub77020-02C71

main77020-02C71iZWE183202205

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02560iZWE183201904

77100TANK ASSY, FUEL

main77001-02B10iZWE183201904

77144RETAINER, FUEL PUMP GAUGE

main77144-F4010iZWE183201904-201906

main77144-F4020iZWE183201907

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iZWE183202009-202012

(L)

main77169-47030iZWE183202009

(J)

main77169-F4050iZWE183201904-202008

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0F010iZWE183201904

(L)

main77174-75010iZWE183201904

(J)

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-02570iZWE183201904

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02360iZWE183201904

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-06120iZWE183201904

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02170iZWE183201904

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-02040iZWE183201904

77229CCLAMP, BREATHER TUBE

main77229-02060iZWE183201904

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-02050iZWE183201904

77241WCLIP, TUBE JOINT

main77241-02020iZWE183202009

main77241-33011iZWE183201904-202008

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-47050iZWE183201904

77283CBRACKET, FUEL TANK PROTECTOR

main77283-47010iZWE183201904

77285DCLAMP, FUEL TUBE, NO.1

main77285-47090iZWE183201904

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02230iZWE183201904

77310ACAP ASSY, FUEL TANK

main77300-06110iZWE183202109

main77300-11010iZWE183201904-202108

77316GASKET, FUEL TANK CAP

main77316-75020iZWE183201904

77391ARING, FUEL INLET BOX

main77391-0R080iZWE183202007

(L)

main77391-12020iZWE183201904-202007

main77391-12020iZWE183202007

(J)

77512BRACKET, FUEL TANK, REAR

main77512-06040iZWE183202009

(L)

main77512-35140iZWE183201904-202009

main77512-35140iZWE183202009

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-02190iZWE183201904

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02170iZWE183201904

77602CCOVER SUB-ASSY, FUEL TANK, LOWER

main77602-47080iZWE183201904

77606CPROTECTOR, FUEL TANK, NO.2

main77642-47040iZWE183201904

77611FCOVER, FUEL TANK, UPPER

main77611-47060iZWE183201904

77641APROTECTOR, FUEL TANK, NO.1

main77641-47050iZWE183201904

77642APROTECTOR, FUEL TANK, NO.2

main77641-02260iZWE183201904

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZWE183201904

77653ACUSHION, FUEL TANK, NO.3

main77653-02020iZWE183202009

main77653-36010iZWE183201904-202008

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-02040iZWE183201904

77785HARNESS, FUEL PUMP

main77785-0F031iZWE183201904

(L)

main77785-12010iZWE183201904

(J)

8401

9011906A14

main90119-06A14

9011910909

main90119-10909

9011910971

main90119-10971

90119C0047

main90119-C0047

90119C0176

main90119-C0176

9030108020

main90301-08020

90301C0043

main90301-C0043

9046707215

main90467-07215

91626B0614

main91626-B0614

91673A1025

main91673-A1025
