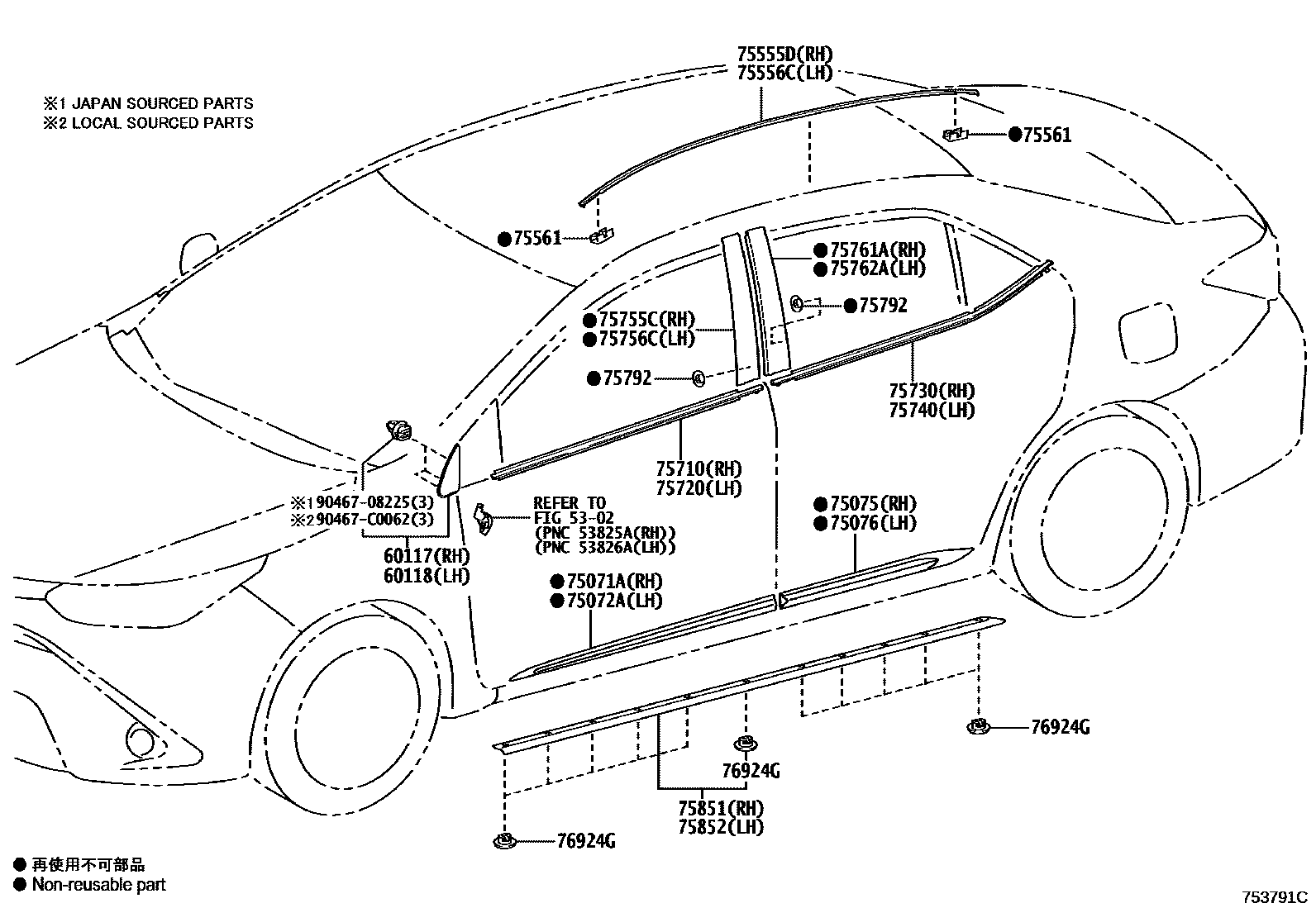

SIDE MOULDING

5302

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02180iZWE183201904

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02180iZWE183201904

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-02090iZWE183201904

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-02090iZWE183201904

75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH

main75075-02090iZWE183201904

75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH

main75076-02090iZWE183201904

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02280iZWE183201904

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02270iZWE183201904

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030iZWE183201904

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02440iZWE183201904

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02440iZWE183201904

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02420iZWE183201904

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02420iZWE183201904

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-02100iZWE183201904

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-02090iZWE183201904

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-02100iZWE183201904

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-02100iZWE183201904

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0D030iZWE183201904

75851MOULDING, ROCKER PANEL, RH

main75851-02220iZWE183201904

75852MOULDING, ROCKER PANEL, LH

main75852-02220iZWE183201904

76924GRETAINER, ROCKER PANEL MOULDING

main76924-52021iZWE183201904

9046708225

main90467-08225

90467C0062

main90467-C0062

24 parts on this diagram · 1 diagram in section
