BATTERY CARRIER

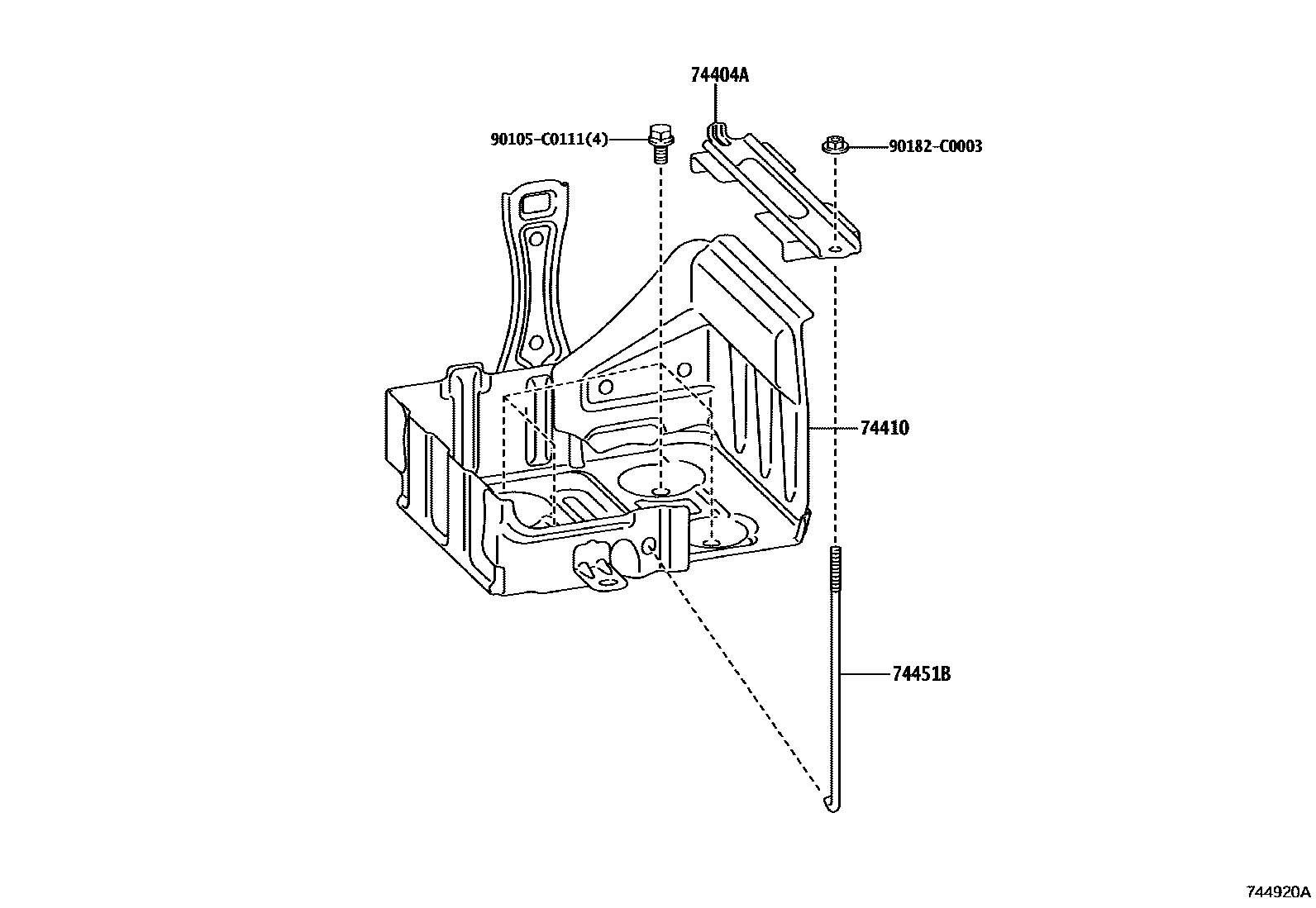

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-02720i201904

74410CARRIER ASSY, BATTERY

main74410-02250i201904

74451BBOLT, BATTERY CLAMP

main74451-02170i201904

90105C0111

main90105-C0111

90182C0003

main90182-C0003

5 parts on this diagram · 1 diagram in section
