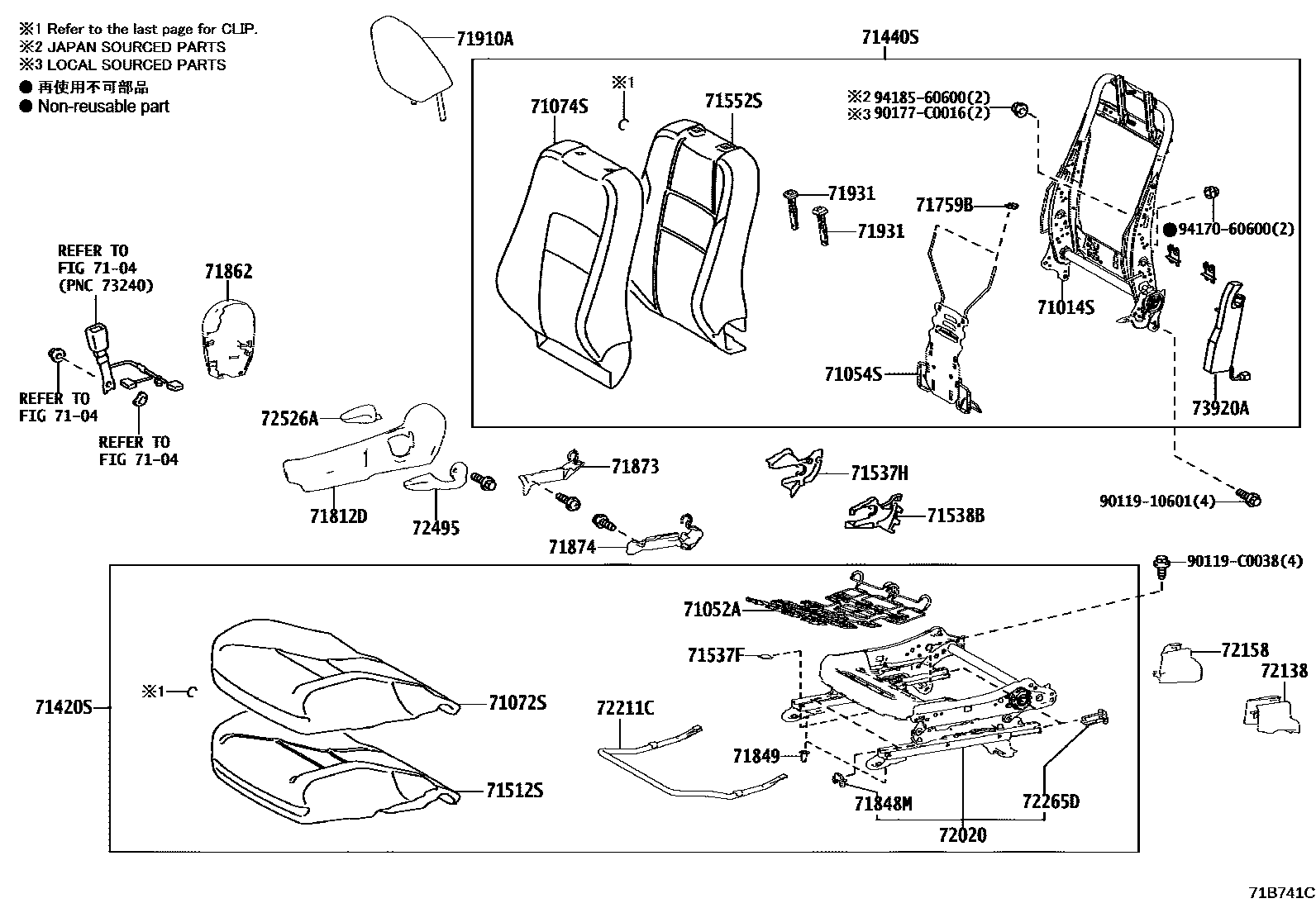

FRONT SEAT & SEAT TRACK

0001 1LH SEAT 0002 1RH SEAT 0003 1CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-02250iZWE183201904

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-0P030iZWE183201904

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-02240iZWE183201904

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0ZB90-C3iZWE183..E,G201904

BLACK,TRIM2#

main71072-0ZB90-E0iZWE183..E,G201904

SADDLE TAN,TRIM4#

main71072-0ZU70-C1iZWE183..V201904

BLACK,TRIM2#

main71072-0ZU70-E0iZWE183..V201904

SADLLE TAN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0ZM90-C2iZWE183..V201904

BLACK,TRIM2#

main71074-0ZM90-E2iZWE183..V201904

SADLLE TAN,TRIM4#

main71074-0ZS00-C0iZWE183..E,G201904

BLACK,TRIM2#

main71074-0ZS00-E1iZWE183..E,G201904

SADDLE TAN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-02D60-C6iZWE183..E,G201904

BLACK,TRIM2#

main71420-02D60-E0iZWE183..E,G201904

SADDLE TAN,TRIM4#

main71420-0ZF50-C0iZWE183..V201904

BLACK,TRIM2#

main71420-0ZF50-E0iZWE183..V201904

SADDLE TAN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0ZR90-C0iZWE183..V201904

BLACK,TRIM2#

main71440-0ZR90-E0iZWE183..V201904

SADDLE TAN,TRIM4#

main71440-0ZX90-C1iZWE183..E,G201904

BLACK,TRIM2#

main71440-0ZX90-E0iZWE183..E,G201904

SADDLE TAN,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-02700iZWE183..V201904

main71512-02810iZWE183..E,G201904

71537FPROTECTOR, FRONT SEAT CUSHION, NO.2

main71537-02340iZWE183201904

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-02250-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main71537-02250-C0iZWE183..E,G201904

BLACK,TRIM2#,4#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-02180-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main71538-02180-C0iZWE183..E,G201904

BLACK,TRIM2#,4#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-02870iZWE183..V201904

main71552-02A30iZWE183..E,G201904

71759BHOOK, FRONT SEATBACK

main71759-47011iZWE183201904

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02800-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main71812-02800-C0iZWE183..E,G201904

BLACK,TRIM2#,4#

71848MCAP, SEAT ADJUSTER COVER, FRONT UPPER

main71848-0D130iZWE183201904

71849CAP, SEAT ADJUSTER COVER, LH

main71848-02050iZWE183201904

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-02340-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main71862-02340-C0iZWE183..E,G201904

BLACK,TRIM2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06440iZWE183201904

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06520iZWE183201904

71910AHEADREST ASSY, FRONT SEAT

main71910-02P82-C4iZWE183..V201904

BLACK,TRIM2#

main71910-02P82-E1iZWE183..V201904

SADLLE TAN,TRIM4#

main71910-02P92-B0iZWE183..E,G201904

GRAY,TRIM4#

main71910-02P92-C3iZWE183..E,G201904

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0D160-C0iZWE183201904

W(LOCK),BLACK,TRIM2#,4#

main71931-0D170-C0iZWE183201904

W/O(LOCK),BLACK,TRIM2#,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-02790iZWE183201904

72138COVER, SEAT TRACK, OUTER LH

main72138-02310-C0iZWE183201904

BLACK,TRIM0#,2#,4#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-02320-C0iZWE183201904

BLACK,TRIM0#,2#,4#

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-02300iZWE183201904

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-0D020iZWE183201904

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0D070-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main72495-0D070-C0iZWE183..E,G201904

BLACK,TRIM2#,4#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0P020-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main72526-0P020-C0iZWE183..E,G201904

BLACK,TRIM2#,4#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-02250iZWE183201904

9011910601

main90119-10601

90119C0038

main90119-C0038

90177C0016

main90177-C0016

9417060600

main94170-60600

9418560600

main94185-60600

35 parts on this diagram · 3 diagrams in section
