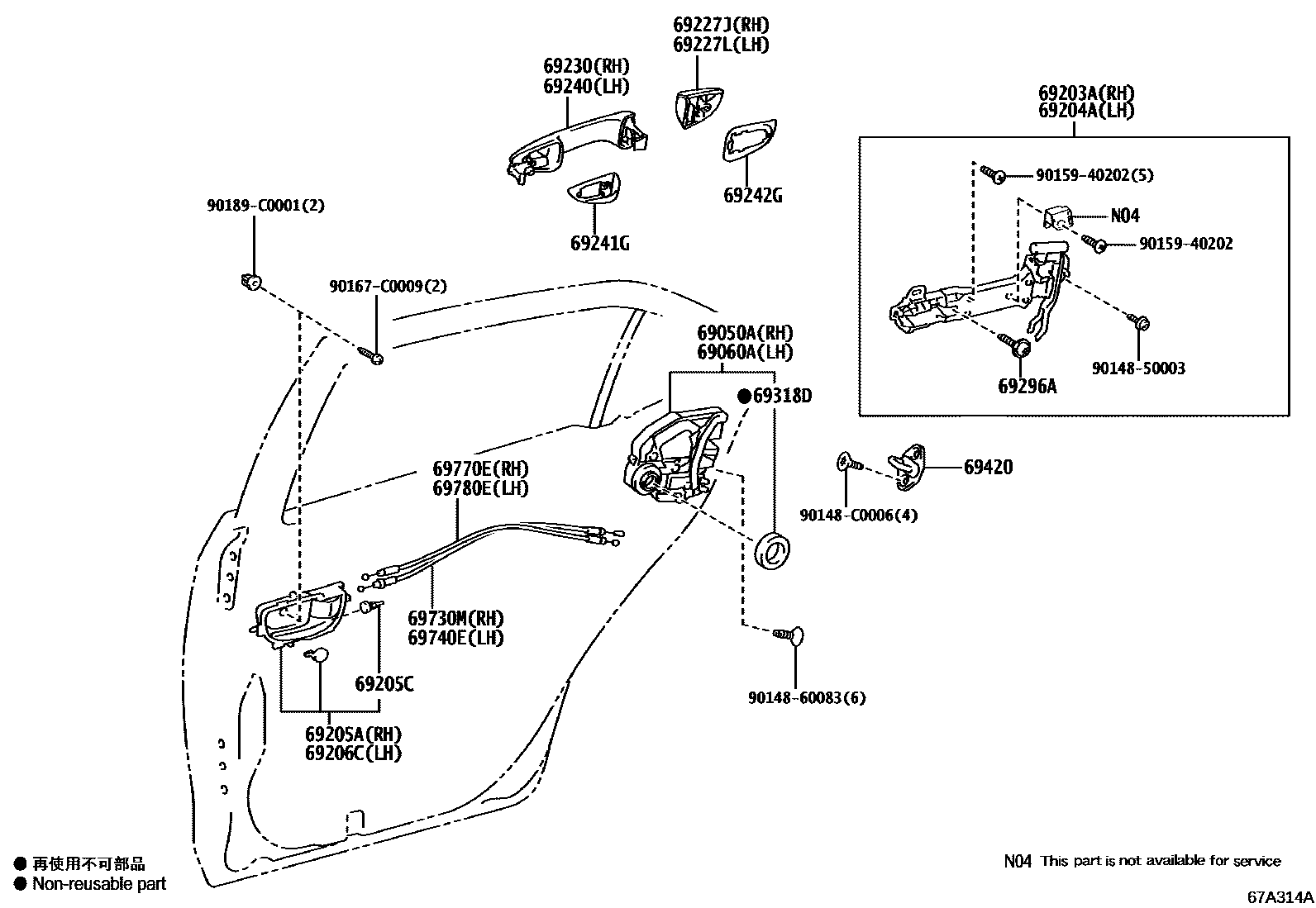

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-06111iZWE183201904

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-06111iZWE183201904

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02510iZWE183201904

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02510iZWE183201904

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02340-C0iZWE183201904

BLACK,TRIM2#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iZWE183201904

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02330-C0iZWE183201904

BLACK,TRIM2#,4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02320-A0iZWE183..E,G201904-202012

WHITE PEARL CS.,070

main69227-02320-A1iZWE183..E,G202012

PLATINUM WHITE PEARL MC.,089

main69227-02320-B0iZWE183..E,G201904

SILVER ME.,1D4

main69227-02320-C0iZWE183..E,G201904-202012

ATTITUDE BLACK MC.,218

main69227-02320-C1iZWE183..E,G202012

BLACK MC.,209

main69227-02320-D0iZWE183..E,G201904

RED M.M.,3R3

main69227-02320-H0iZWE183..E,G201904

SPIRITED AQUA ME.,791

main69227-02320-J1iZWE183..E,G201904

BLUE ME.,8X7

main69227-02320-K0iZWE183..E,G201904

DEEP AMETHYST M.M.,9AH

main69250-02170-A0iZWE183..V201904-202012

WHITE PEARL CS.,070

main69250-02170-A1iZWE183..V202012

PLATINUM WHITE PEARL MC.,089

main69250-02170-B0iZWE183..V201904

SILVER ME.,1D4

main69250-02170-C0iZWE183..V201904-202012

ATTITUDE BLACK MC.,218

main69250-02170-C1iZWE183..V202012

BLACK MC.,209

main69250-02170-D0iZWE183..V201904

RED M.M.,3R3

main69250-02170-H0iZWE183..V201904

SPIRITED AQUA ME.,791

main69250-02170-J1iZWE183..V201904

BLUE ME.,8X7

main69250-02170-K0iZWE183..V201904

DEEP AMETHYST M.M.,9AH

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-02120-A0iZWE183..E,G201904-202012

WHITE PEARL CS.,070

main69228-02120-A1iZWE183..E,G202012

PLATINUM WHITE PEARL MC.,089

main69228-02120-B0iZWE183..E,G201904

SILVER ME.,1D4

main69228-02120-C0iZWE183..E,G201904-202012

ATTITUDE BLACK MC.,218

main69228-02120-C1iZWE183..E,G202012

BLACK MC.,209

main69228-02120-D0iZWE183..E,G201904

RED M.M.,3R3

main69228-02120-H0iZWE183..E,G201904

SPIRITED AQUA ME.,791

main69228-02120-J1iZWE183..E,G201904

BLUE ME.,8X7

main69228-02120-K0iZWE183..E,G201904

DEEP AMETHYST M.M.,9AH

main69250-02180-A0iZWE183..V201904-202012

WHITE PEARL CS.,070

main69250-02180-A1iZWE183..V202012

PLATINUM WHITE PEARL MC.,089

main69250-02180-B0iZWE183..V201904

SILVER ME.,1D4

main69250-02180-C0iZWE183..V201904-202012

ATTITUDE BLACK MC.,218

main69250-02180-C1iZWE183..V202012

BLACK MC.,209

main69250-02180-D0iZWE183..V201904

RED M.M.,3R3

main69250-02180-H0iZWE183..V201904

SPIRITED AQUA ME.,791

main69250-02180-J1iZWE183..V201904

BLUE ME.,8X7

main69250-02180-K0iZWE183..V201904

DEEP AMETHYST M.M.,9AH

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-02220-A0iZWE183..V201904-202012

WHITE PEARL CS.,070

main69210-02220-A1iZWE183..V202012

PLATINUM WHITE PEARL MC.,089

main69210-02220-B0iZWE183..V201904

SILVER ME.,1D4

main69210-02220-C0iZWE183..V201904-202012

ATTITUDE BLACK MC.,218

main69210-02220-C1iZWE183..V202012

BLACK MC.,209

main69210-02220-D0iZWE183..V201904

RED M.M.,3R3

main69210-02220-H0iZWE183..V201904

SPIRITED AQUA ME.,791

main69210-02220-J1iZWE183..V201904

BLUE ME.,8X7

main69210-02220-K0iZWE183..V201904

DEEP AMETHYST M.M.,9AH

main69211-02320-A0iZWE183..E,G201904-202012

WHITE PEARL CS.,070

main69211-02320-A1iZWE183..E,G202012

PLATINUM WHITE PEARL MC.,089

main69211-02320-B0iZWE183..E,G201904

SILVER ME.,1D4

main69211-02320-C0iZWE183..E,G201904-202012

ATTITUDE BLACK MC.,218

main69211-02320-C1iZWE183..E,G202012

BLACK MC.,209

main69211-02320-D0iZWE183..E,G201904

RED M.M.,3R3

main69211-02320-H0iZWE183..E,G201904

SPIRITED AQUA ME.,791

main69211-02320-J1iZWE183..E,G201904

BLUE ME.,8X7

main69211-02320-K0iZWE183..E,G201904

DEEP AMETHYST M.M.,9AH

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69212-02170-A0iZWE183..E,G201904-202012

WHITE PEARL CS.,070

main69212-02170-A1iZWE183..E,G202012

PLATINUM WHITE PEARL MC.,089

main69212-02170-B0iZWE183..E,G201904

SILVER ME.,1D4

main69212-02170-C0iZWE183..E,G201904-202012

ATTITUDE BLACK MC.,218

main69212-02170-C1iZWE183..E,G202012

BLACK MC.,209

main69212-02170-D0iZWE183..E,G201904

RED M.M.,3R3

main69212-02170-H0iZWE183..E,G201904

SPIRITED AQUA ME.,791

main69212-02170-J1iZWE183..E,G201904

BLUE ME.,8X7

main69212-02170-K0iZWE183..E,G201904

DEEP AMETHYST M.M.,9AH

main69220-02160-A0iZWE183..V201904-202012

WHITE PEARL CS.,070

main69220-02160-A1iZWE183..V202012

PLATINUM WHITE PEARL MC.,089

main69220-02160-B0iZWE183..V201904

SILVER ME.,1D4

main69220-02160-C0iZWE183..V201904-202012

ATTITUDE BLACK MC.,218

main69220-02160-C1iZWE183..V202012

BLACK MC.,209

main69220-02160-D0iZWE183..V201904

RED M.M.,3R3

main69220-02160-H0iZWE183..V201904

SPIRITED AQUA ME.,791

main69220-02160-J1iZWE183..V201904

BLUE ME.,8X7

main69220-02160-K0iZWE183..V201904

DEEP AMETHYST M.M.,9AH

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02220iZWE183201904

RH

main69242-02210iZWE183201904

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-02230iZWE183201904

RH

main69242-02220iZWE183201904

LH

69296ASCREW, DOOR INSIDE HANDLE

main69296-0R010iZWE183201904

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iZWE183201904

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020iZWE183201904

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-02450iZWE183201904

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-02450iZWE183201904

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-02550iZWE183201904

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-02550iZWE183201904

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

9015940202

main90159-40202

90167C0009

main90167-C0009

90189C0001

main90189-C0001

26 parts on this diagram · 1 diagram in section
