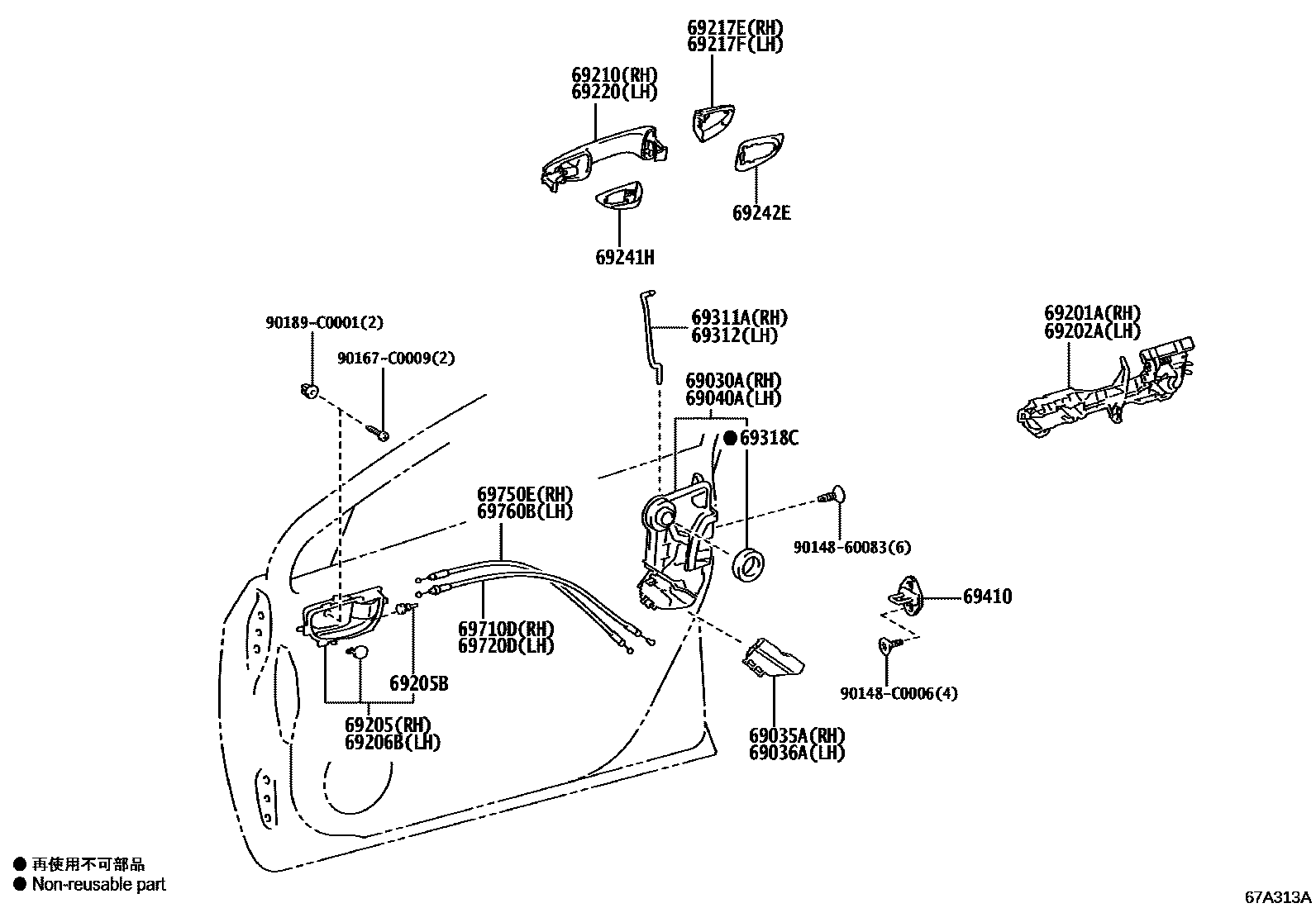

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
SPIRITED AQUA ME.,791
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
SPIRITED AQUA ME.,791
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
SPIRITED AQUA ME.,791
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
SPIRITED AQUA ME.,791
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
SPIRITED AQUA ME.,791
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
SPIRITED AQUA ME.,791
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
SPIRITED AQUA ME.,791
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
BLACK MC.,209
RED M.M.,3R3
SPIRITED AQUA ME.,791
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0009
main90167-C0009
90189C0001
main90189-C0001
27 parts on this diagram · 1 diagram in section
