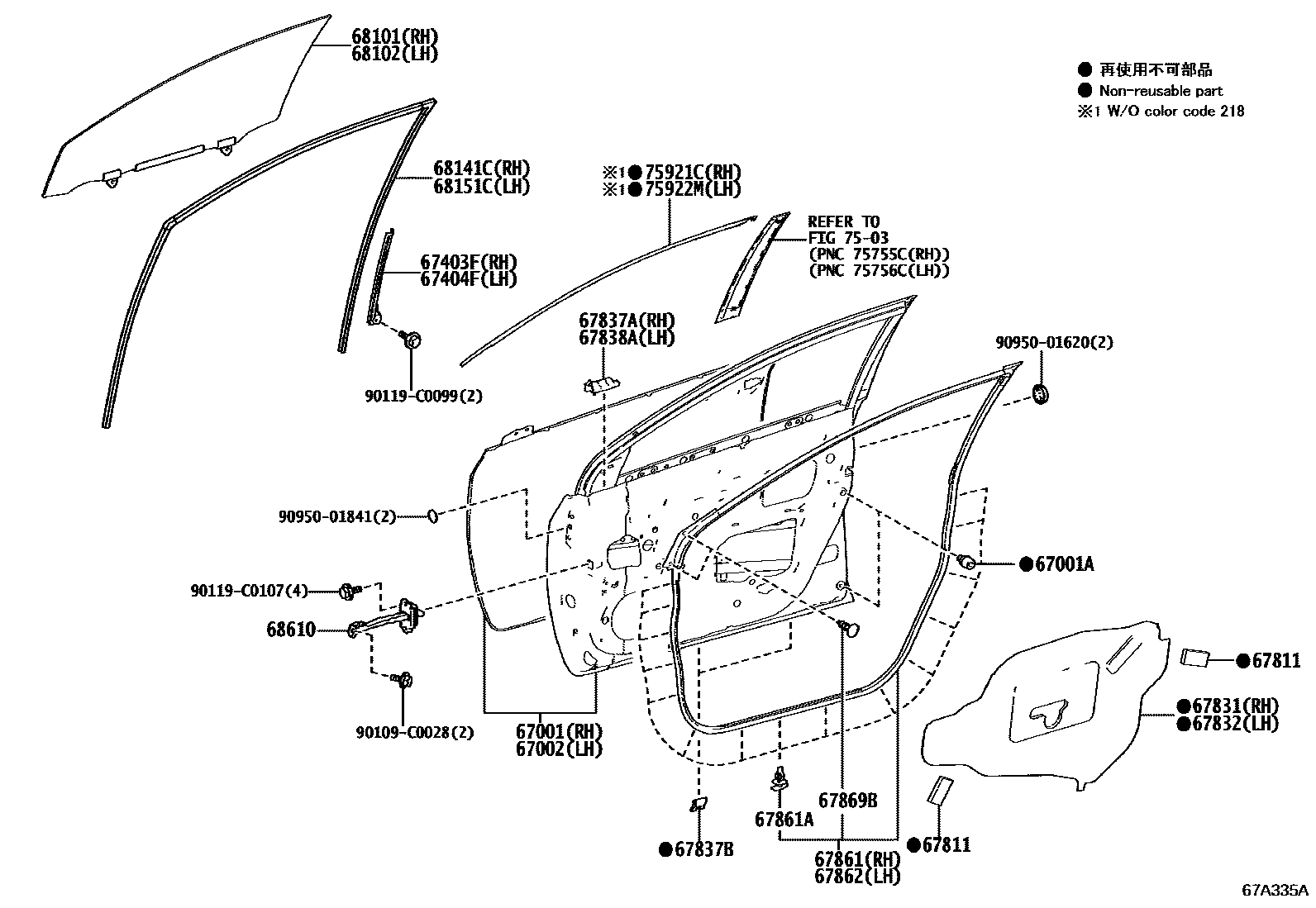

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02630iZWE183201904

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iZWE183201904

(J)

main90541-C0003iZWE183201904

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02620iZWE183201904

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02230iZWE183201904

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02230iZWE183201904

67811PAD, FRONT DOOR SILENCER

main67811-02400iZWE183201904

60 X 120

main67811-0D010iZWE183201904

70 X 120

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02430iZWE183201904

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02430iZWE183201904

67837ASEAL, FRONT DOOR VENT, RH

main67837-02110iZWE183201904

67837BSEAL, FRONT DOOR DUST PROOF

main67837-02230iZWE183201904

(L)

main67837-48050iZWE183201904

(J)

67838ASEAL, FRONT DOOR VENT, LH

main67838-02080iZWE183201904

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02310iZWE183201904

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150iZWE183201904

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02310iZWE183201904

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iZWE183201904

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02540iZWE183201904

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02540iZWE183201904

68141CRUN, FRONT DOOR GLASS, RH

main68141-02360iZWE183201904

68151CRUN, FRONT DOOR GLASS, LH

main68151-02350iZWE183201904

68610CHECK ASSY, FRONT DOOR

main68610-02330iZWE183201904

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02251iZWE183201904

0 OR 1PIECE,REF.ILL.

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02251iZWE183201904

0 OR 1PIECE,REF.ILL.

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

9095001620

main90950-01620

9095001841

main90950-01841

28 parts on this diagram · 2 diagrams in section
