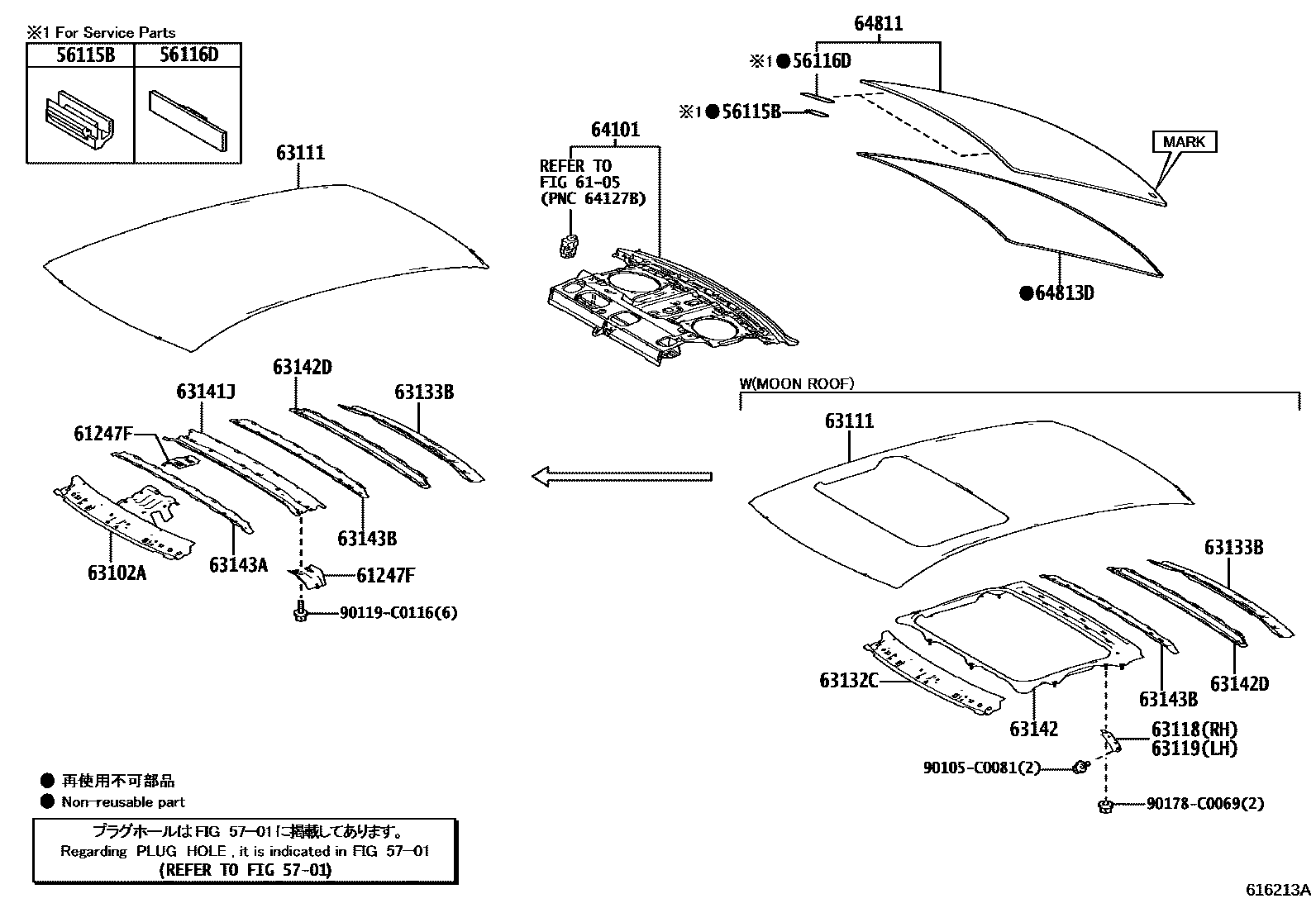

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iZWE183201904

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iZWE183201904

5701

6105

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-02210iZWE183..E201904

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02400iZWE183..E201904

63111PANEL, ROOF

main63111-02550iZWE183..G,V201904

main63111-02610iZWE183..E201904

63118SUPPORT, ROOF PANEL, RH

main63118-02100

63119SUPPORT, ROOF PANEL, LH

main63118-02100

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-02230iZWE183..G,V201904

63133BFRAME, BACK WINDOW

main63133-02180iZWE183201904

63141JREINFORCEMENT, ROOF PANEL

main63141-02220iZWE183..E201904

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-02110iZWE183..G,V201904

63142DREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63127-02130iZWE183201904

63143AREINFORCEMENT, ROOF PANEL

main63143-02200iZWE183..E201904

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-02230iZWE183..E201904

main63148-02100iZWE183..G,V201904

64101PANEL SUB-ASSY, UPPER BACK

main64101-02660iZWE183201904

64811GLASS, BACK WINDOW

main64801-02320iZWE183201904

GLASS MARK=E001084

main64801-02350iZWE183201904

GLASS MARK=E005771

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-02230iZWE183201904

90105C0081

main90105-C0081

90119C0116

main90119-C0116

90178C0069

main90178-C0069

22 parts on this diagram · 2 diagrams in section
