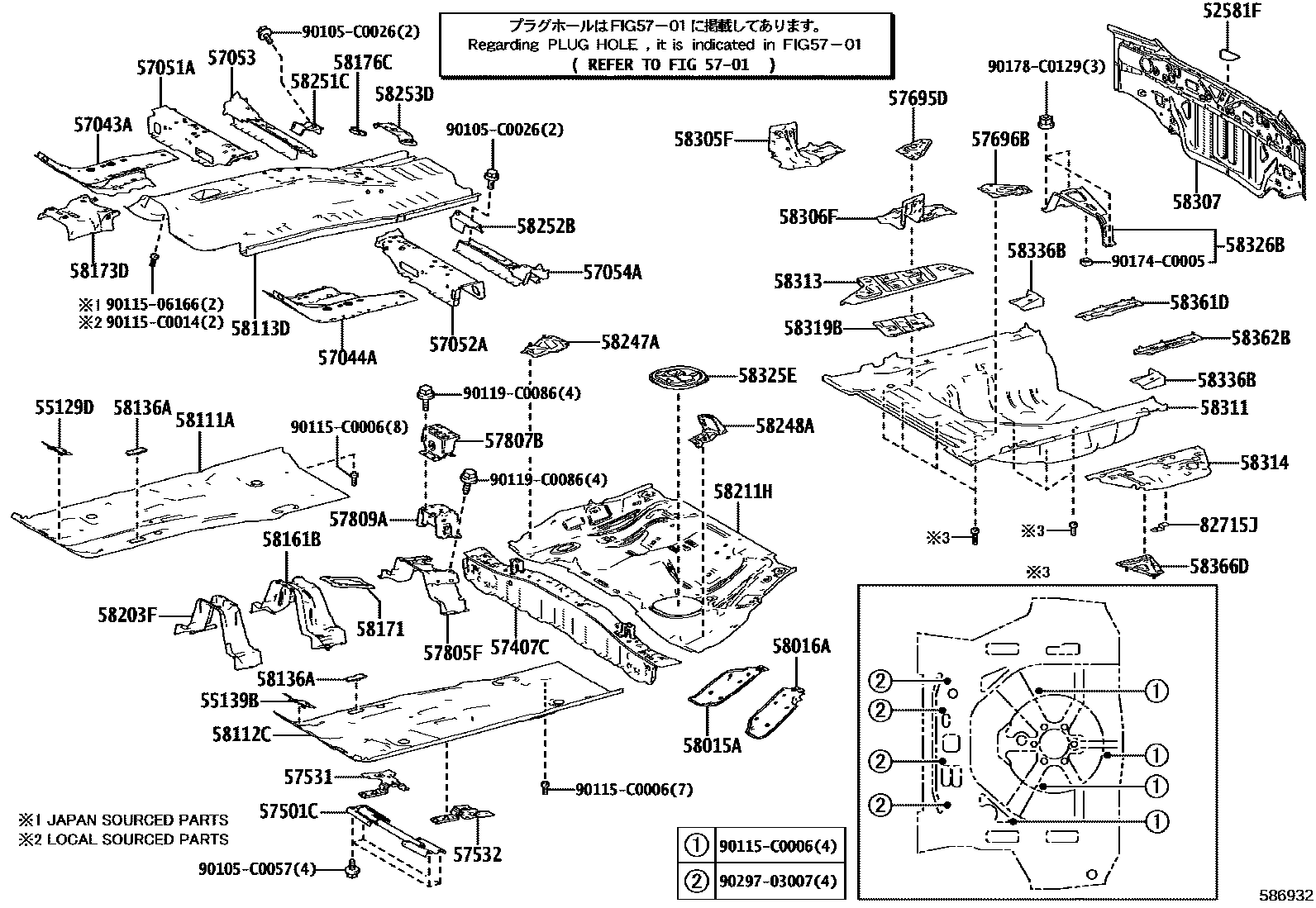

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR UNDER COVER

52581FPROTECTOR, REAR BUMPER

main52581-0F010iZWE183201904

55129DCOVER, DASH PANEL HOLE, RH

main55129-02040iZWE183201904

55139BCOVER, DASH PANEL HOLE, LH

main55139-02030iZWE183201904

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-02020iZWE183201904

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-02020iZWE183201904

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02040iZWE183201904

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02030iZWE183201904

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-0F010iZWE183201904

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-0F010iZWE183201904

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02210iZWE183201904

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-0F010iZWE183201904

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-02020iZWE183201904

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-02020iZWE183201904

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-02080iZWE183201904

57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH

main57696-02060iZWE183201904

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-0F010iZWE183201904

57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2

main57807-02060iZWE183201904

57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3

main57809-02070iZWE183201904

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02221iZWE183201904

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02181iZWE183201904

58111APAN, FRONT FLOOR, RH

main58111-02938iZWE183201904

58112CPAN, FRONT FLOOR, LH

main58112-02907iZWE183201904

58113DPANEL, FRONT FLOOR SIDE, NO.1 RH

main58113-02914iZWE183201904

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-0F020iZWE183201904

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0F020iZWE183201904

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02071iZWE183201904

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-02020iZWE183201904

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-02030iZWE183201904

58203FBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

main58203-0F020iZWE183201904

58211HPAN, CENTER FLOOR

main58211-02470iZWE183201904

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-02200iZWE183201904

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-02050iZWE183201904

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-02040iZWE183201904

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-02020iZWE183201904

58253DBRACKET, PARKING BRAKE CABLE

main58253-02070iZWE183201904

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-02160iZWE183201904

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-02170iZWE183201904

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02440iZWE183201904

58311PAN, REAR FLOOR

main58311-02323iZWE183201904

58313PANEL, REAR FLOOR SIDE, RH

main58313-02280iZWE183201904

58314PANEL, REAR FLOOR SIDE, LH

main58314-02173iZWE183201904

58319BBRACKET, REAR FLOOR SIDE PANEL

main58319-02080iZWE183201904

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02200iZWE183201904

58326BBRACKET, FLEXIBLE HOSE MOUNTING

main58326-02020iZWE183201904

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-0F010iZWE183201904

58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

main58361-02030iZWE183201904

58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH

main58362-02020iZWE183201904

58366DREINFORCEMENT, FUEL TANK SUPPORT, REAR

main58366-02040iZWE183201904

82715JBRACKET, WIRING HARNESS CLAMP

main82715-02M40iZWE183201904

90105C0026

main90105-C0026

90105C0057

main90105-C0057

9011506166

main90115-06166¥90

90115C0006

main90115-C0006

90115C0014

main90115-C0014

90119C0086

main90119-C0086

90174C0005

main90174-C0005

90178C0129

main90178-C0129

9029703007

main90297-03007¥60

59 parts on this diagram · 2 diagrams in section
