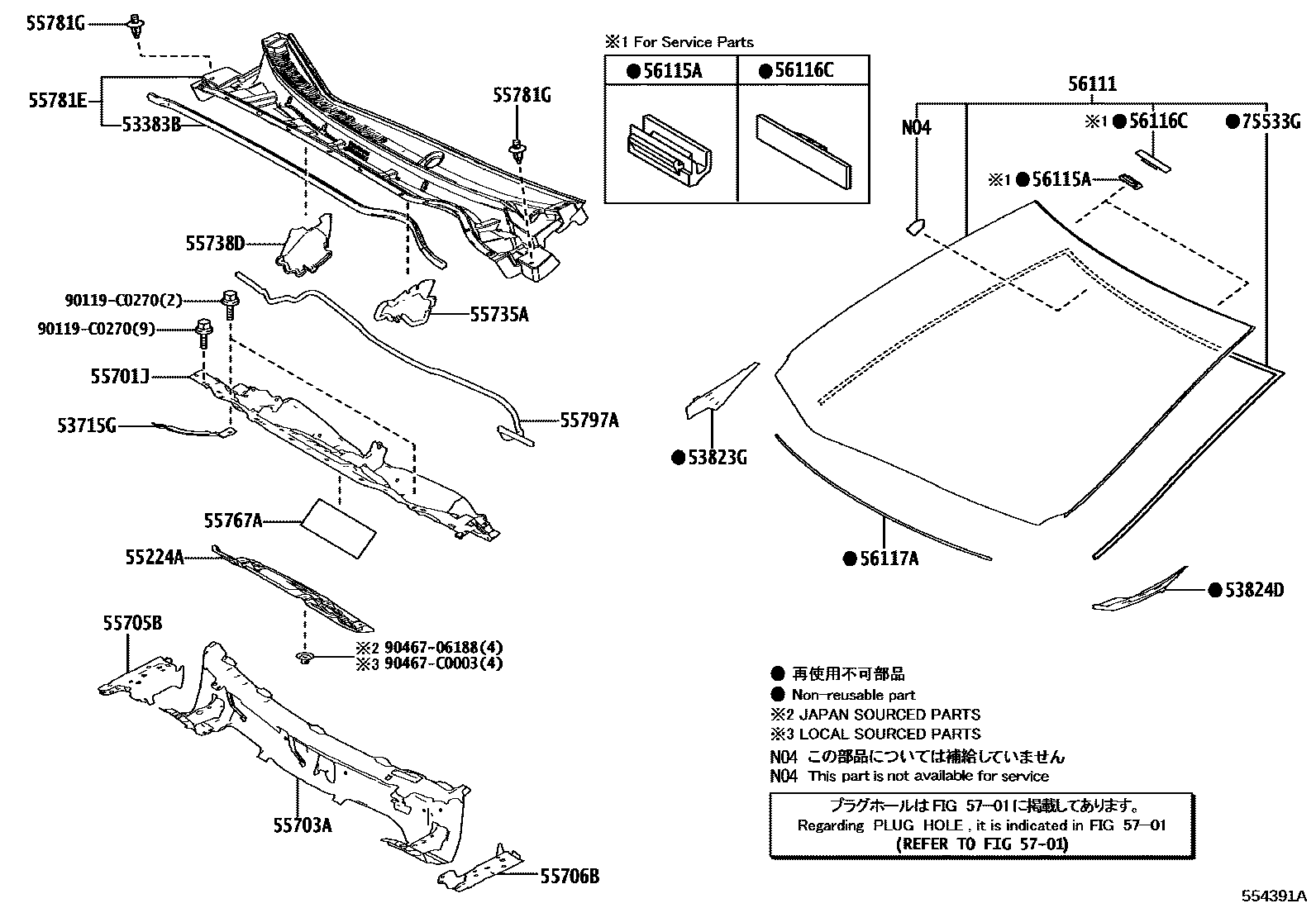

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02250iZWE183201904

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-02080iZWE183201904

53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02140iZWE183201904

53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02140iZWE183201904

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02280iZWE183201904

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02660iZWE183201904

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-02480iZWE183201904

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02190iZWE183201904

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02190iZWE183201904

55735APLATE, WATER GUARD, LH

main55734-02360iZWE183201904

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-02210iZWE183201904

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-02050iZWE183201904

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02700iZWE183201904

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7iZWE183201904

BLACK,(J)

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

main90467-C0013-C1iZWE183201904

BLACK,(L)

55797ASEAL, COWL WATER EXTRACT

main55797-02160iZWE183201904

56111GLASS, WINDSHIELD

main56101-02J01iZWE183201904

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iZWE183¥130201904

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZWE183¥120201904

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02240iZWE183201904

L=1262.5

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02190iZWE183201904

90119C0270

main90119-C0270

9046706188

main90467-06188¥160

90467C0003

main90467-C0003

24 parts on this diagram · 1 diagram in section
