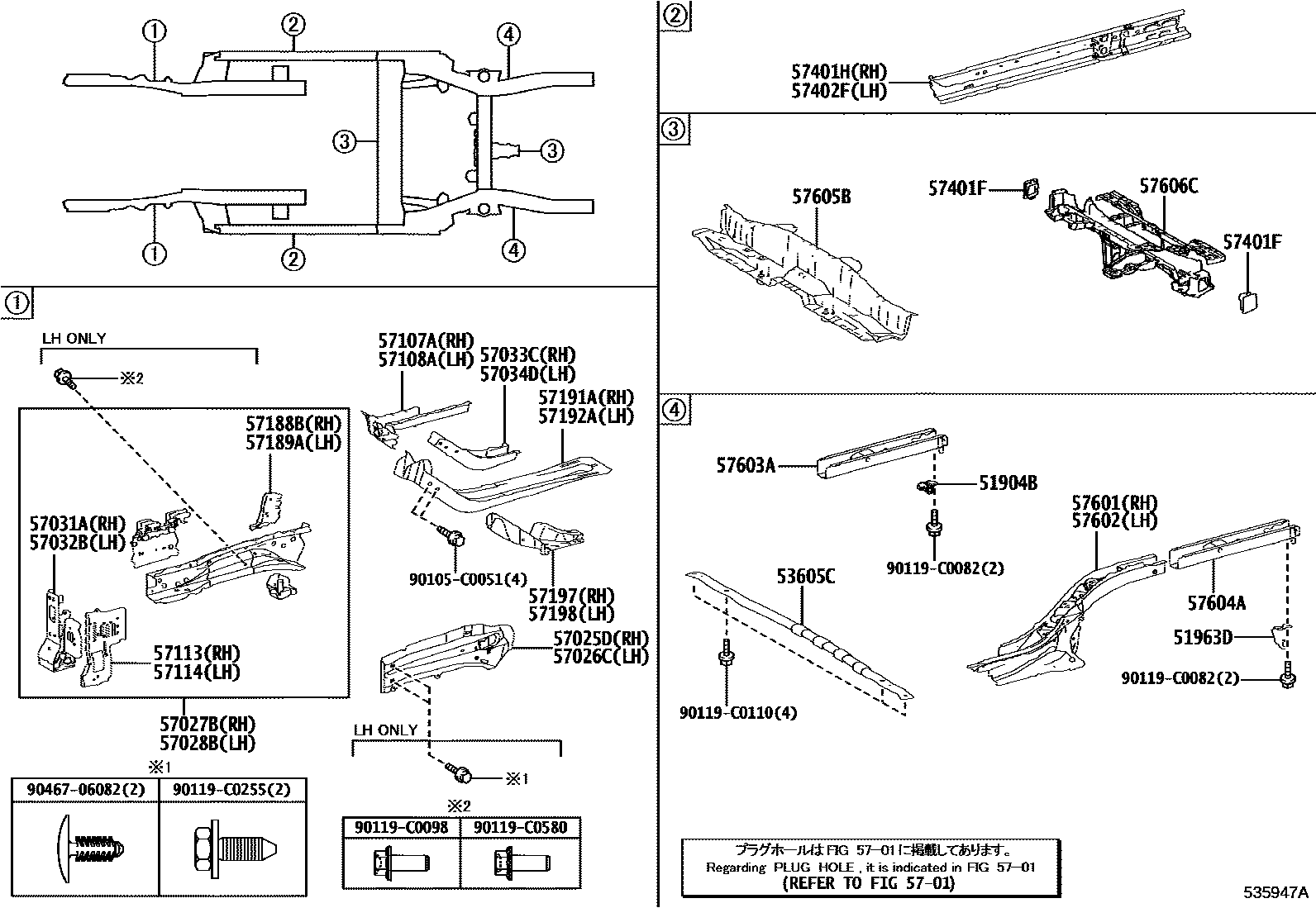

FLOOR SIDE MEMBER

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-02030iZWE183201904

51963DHOOK, TRANSPORT, REAR LH

main51968-02090iZWE183201904

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-02050iZWE183201904

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02040iZWE183201904

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02040iZWE183201904

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02050iZWE183201904

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02040iZWE183201904

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-02030iZWE183201904

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-02030iZWE183201904

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02060iZWE183201904

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02060iZWE183201904

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-0F020iZWE183201904

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-0F020iZWE183201904

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02090iZWE183201904

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02090iZWE183201904

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-02030iZWE183201904

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-02030iZWE183201904

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-0F011iZWE183201904

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-0F011iZWE183201904

57197BOX, TORQUE, FRONT RH

main57197-02060iZWE183201904

57198BOX, TORQUE, FRONT LH

main57198-02060iZWE183201904

57401FPLUG, HOLE

main58565-02030iZWE183201904

RH

main58566-02040iZWE183201904

LH

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-02300iZWE183201904

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-02300iZWE183201904

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02480iZWE183201904

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02580iZWE183201904

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-02170iZWE183201904

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-02071iZWE183201904

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02280iZWE183201904

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-02350iZWE183201904

90105C0051

main90105-C0051

90119C0082

main90119-C0082

90119C0098

main90119-C0098

90119C0110

main90119-C0110

90119C0255

main90119-C0255

90119C0580

main90119-C0580

9046706082

main90467-06082

38 parts on this diagram · 1 diagram in section
