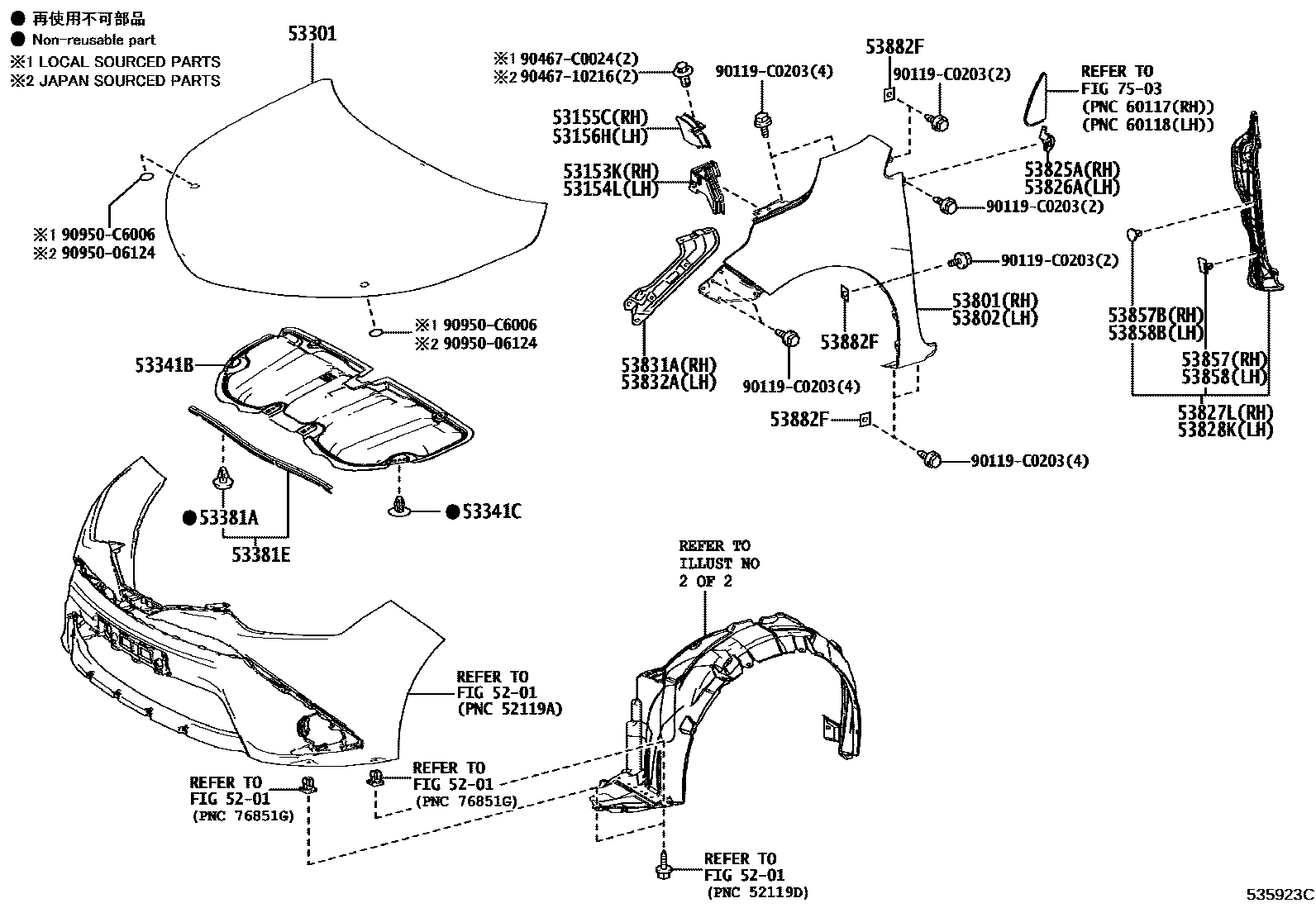

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

5201

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-02080iZWE183201904

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-02080iZWE183201904

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-02100iZWE183201904

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-02090iZWE183201904

53301HOOD SUB-ASSY

main53301-02350iZWE183201904

53341BINSULATOR, HOOD

main53341-02360iZWE183201904

53341CCLIP(FOR HOOD INSULATOR)

main90467-C0006iZWE183201904

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iZWE183201904

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-02250iZWE183201904

53801FENDER SUB-ASSY, FRONT RH

main53811-02430iZWE183201904

53802FENDER SUB-ASSY, FRONT LH

main53812-02430iZWE183201904

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02140iZWE183201904

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02140iZWE183201904

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02151iZWE183201904

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02231iZWE183201904

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-02150iZWE183201904

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-02130iZWE183201904

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iZWE183201904

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06020iZWE183202009

(L)

main53857-47011iZWE183201904-202009

main53857-47011iZWE183202009

(J)

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iZWE183201904

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06020iZWE183202009

(L)

main53857-47011iZWE183201904-202009

main53857-47011iZWE183202009

(J)

53882FSEAL, FRONT FENDER

main53882-0D030iZWE183201904

(L)

main53882-33060iZWE183201904

(J)

7503

90119C0203

main90119-C0203

9046710216

main90467-10216

90467C0024

main90467-C0024

9095006124

main90950-06124

90950C6006

main90950-C6006

29 parts on this diagram · 2 diagrams in section
