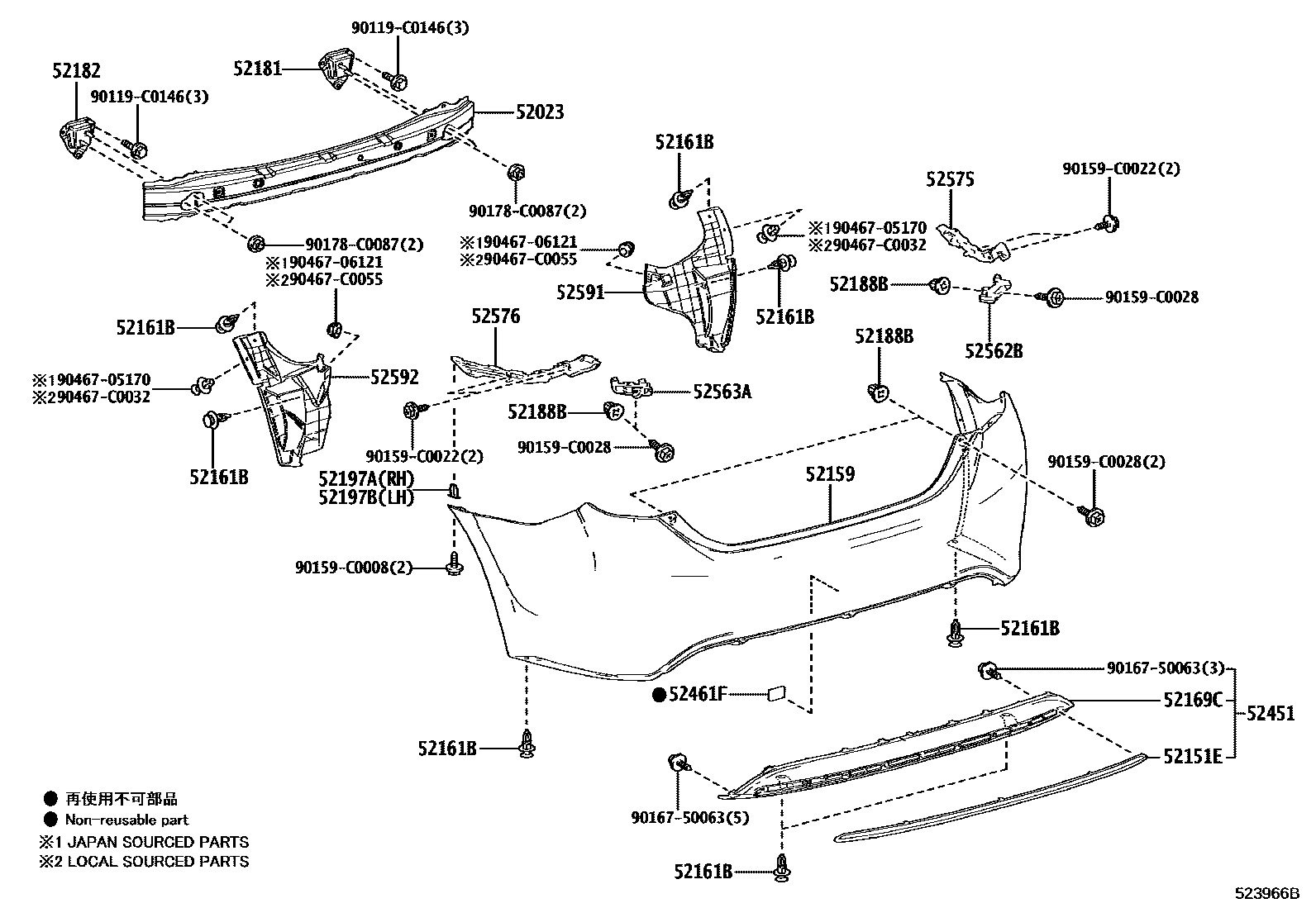

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-02220iZWE183201904

52151EBAR, REAR BUMPER

main52151-02070iZWE183201904

52159COVER, REAR BUMPER

main52159-0Z918iZWE183201904

52161BPIECE, REAR BUMPER

main52161-02040iZWE183201904

(L)

main52161-16010iZWE183¥120201904

(J)

sub52161-0K040¥120

52169CCOVER, REAR BUMPER, LOWER

main52169-02150iZWE183201904

52181ARM, REAR BUMPER, RH

main52181-02230iZWE183201904

52182ARM, REAR BUMPER, LH

main52182-02200iZWE183201904

52188BSPACER, REAR BUMPER MOUNTING

main52188-06040iZWE183201904

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-06010iZWE183201904

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-06010iZWE183201904

52451GUARD, REAR BUMPER

main52105-02010iZWE183201904

52461FPAD, REAR BUMPER

main52462-02230iZWE183201904

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02280iZWE183201904

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02280iZWE183201904

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02170iZWE183201904

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02170iZWE183201904

52591SEAL, REAR BUMPER SIDE, RH

main52591-02351iZWE183201904

52592SEAL, REAR BUMPER SIDE, LH

main52592-02331iZWE183201904

90119C0146

main90119-C0146

90159C0008

main90159-C0008

90159C0022

main90159-C0022

90159C0028

main90159-C0028

9016750063

main90167-50063¥60

90178C0087

main90178-C0087

9046705170

main90467-05170¥80

9046706121

main90467-06121¥220

90467C0032

main90467-C0032

90467C0055

main90467-C0055

28 parts on this diagram · 1 diagram in section
