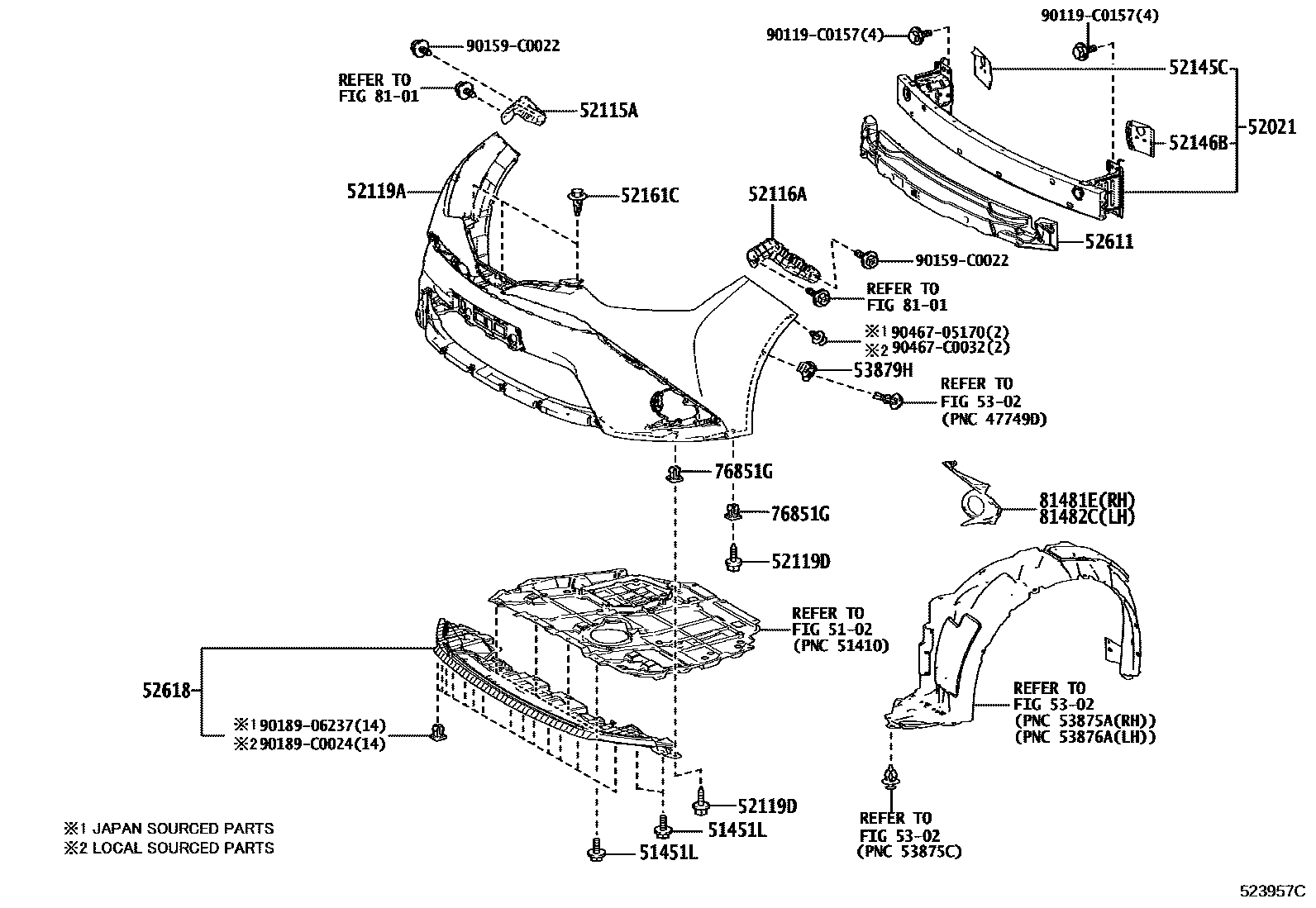

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

51451LBOLT, NO.1

main90119-C0186iZWE183201904

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02290iZWE183201904

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02300iZWE183201904

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02300iZWE183201904

52119ACOVER, FRONT BUMPER

main52119-F2923iZWE183201904

52119DSCREW, NO.1

main90159-60477iZWE183201904

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-02180iZWE183201904

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-02160iZWE183201904

52161CPIECE, FRONT BUMPER

main52161-02040iZWE183201904

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02480iZWE183201904

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02120iZWE183201904

5302

53879HRETAINER, FRONT FENDER LINER

main53879-06080iZWE183201904

76851GGROMMET, SCREW, NO.1

main90189-06237iZWE183201904-202008

main90189-06237iZWE183202008

(J)

main90189-C0024iZWE183202008

(L)

8101

81481ECOVER, FOG LAMP, RH

main81481-02550iZWE183201904

81482CCOVER, FOG LAMP, LH

main81482-02540iZWE183201904

90119C0157

main90119-C0157

90159C0022

main90159-C0022

9018906237

main90189-06237

90189C0024

main90189-C0024

9046705170

main90467-05170

90467C0032

main90467-C0032

24 parts on this diagram · 2 diagrams in section
