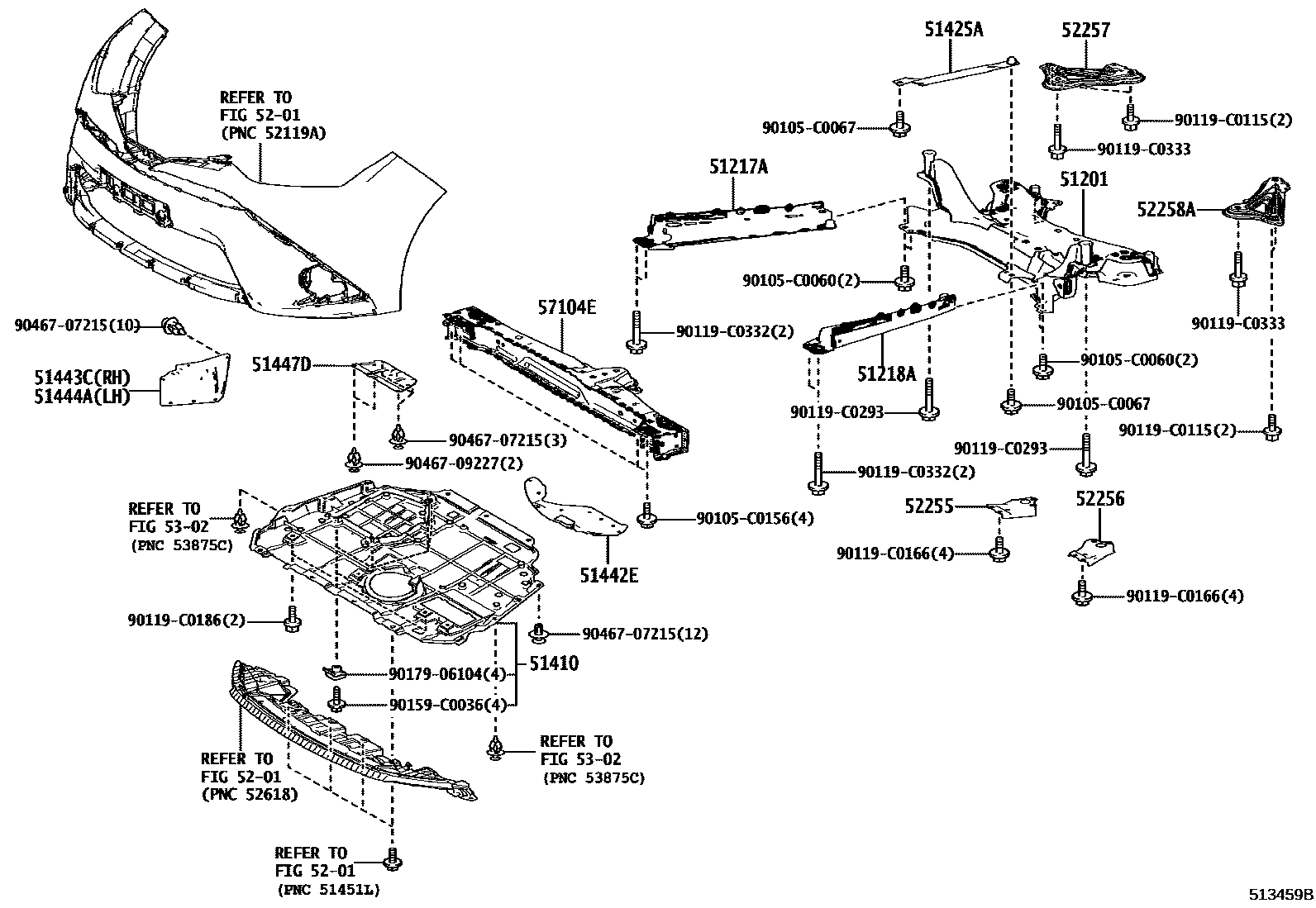

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02190iZWE183201904

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02050iZWE183201904

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02050iZWE183201904

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-02340iZWE183201904

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02040iZWE183201904

51442ECOVER, ENGINE UNDER, NO.2

main51442-02580iZWE183201904

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02070iZWE183201904

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02060iZWE183201904

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02030iZWE183201904

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02030iZWE183201904

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02030iZWE183201904

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02090iZWE183201904

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02090iZWE183201904

5302

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02390iZWE183201904

90105C0060

main90105-C0060

90105C0067

main90105-C0067

90105C0156

main90105-C0156

90119C0115

main90119-C0115

90119C0166

main90119-C0166

90119C0186

main90119-C0186

90119C0293

main90119-C0293

90119C0332

main90119-C0332

90119C0333

main90119-C0333

90159C0036

main90159-C0036

9017906104

main90179-06104

9046707215

main90467-07215

9046709227

main90467-09227

29 parts on this diagram · 1 diagram in section
