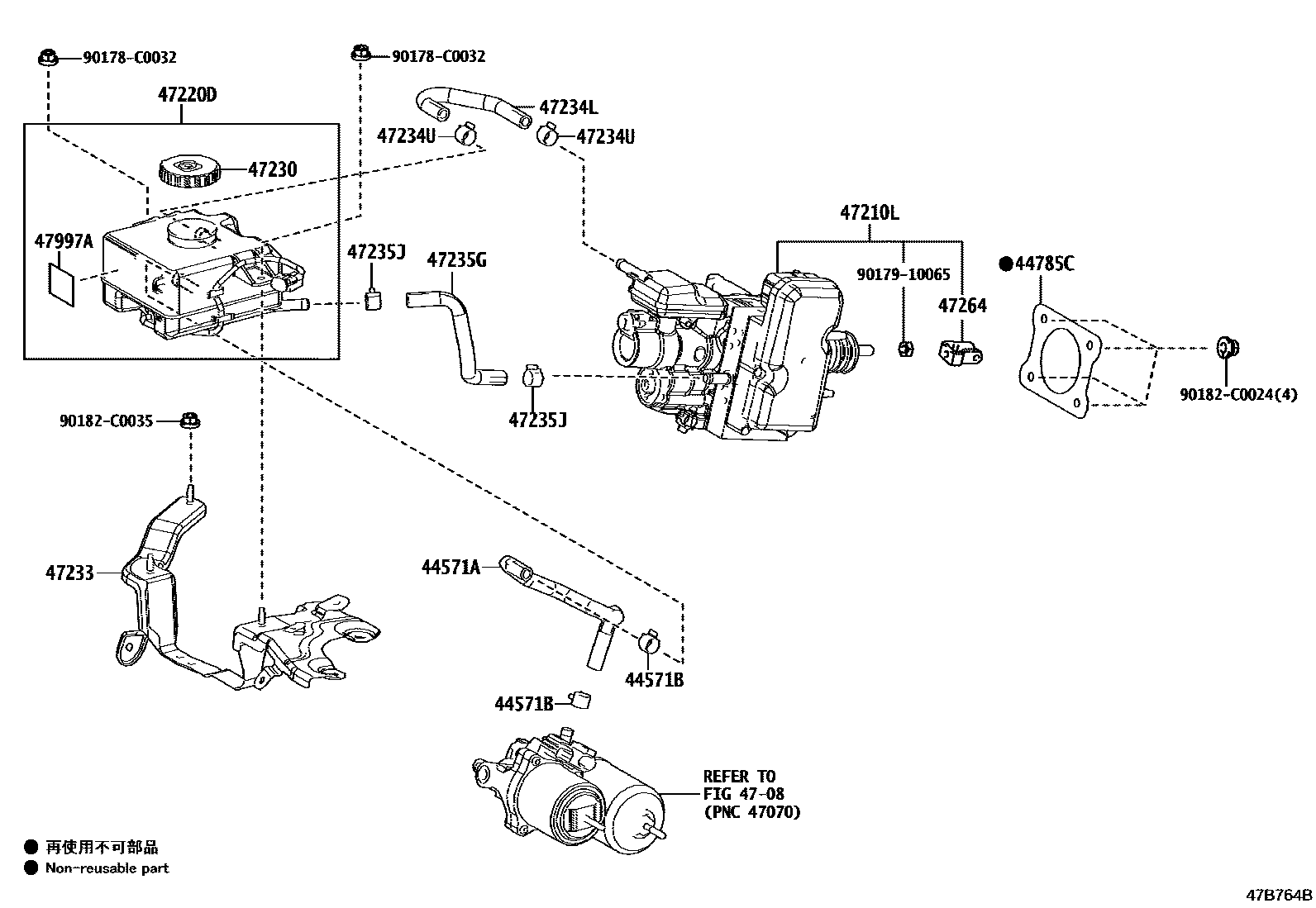

BRAKE MASTER CYLINDER

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-02100iZWE183201904

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main90466-C0026iZWE183201904

44785CGASKET, BRAKE BOOSTER

main44785-02050iZWE183201904

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-02100iZWE183202012

main47050-12C30iZWE183201904-202011

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-12380iZWE183201904

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iZWE183201904

47233BRACKET, RESERVOIR

main47233-02050iZWE183201904

47234LHOSE, RESERVOIR, NO.1

main47234-02050iZWE183201904

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main90466-C0026iZWE183201904

47235GHOSE, RESERVOIR, NO.2

main47235-02050iZWE183201904

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main90466-C0026iZWE183201904

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iZWE183201904

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZWE183201904

90178C0032

main90178-C0032

9017910065

main90179-10065

90182C0024

main90182-C0024

90182C0035

main90182-C0035

18 parts on this diagram · 1 diagram in section
