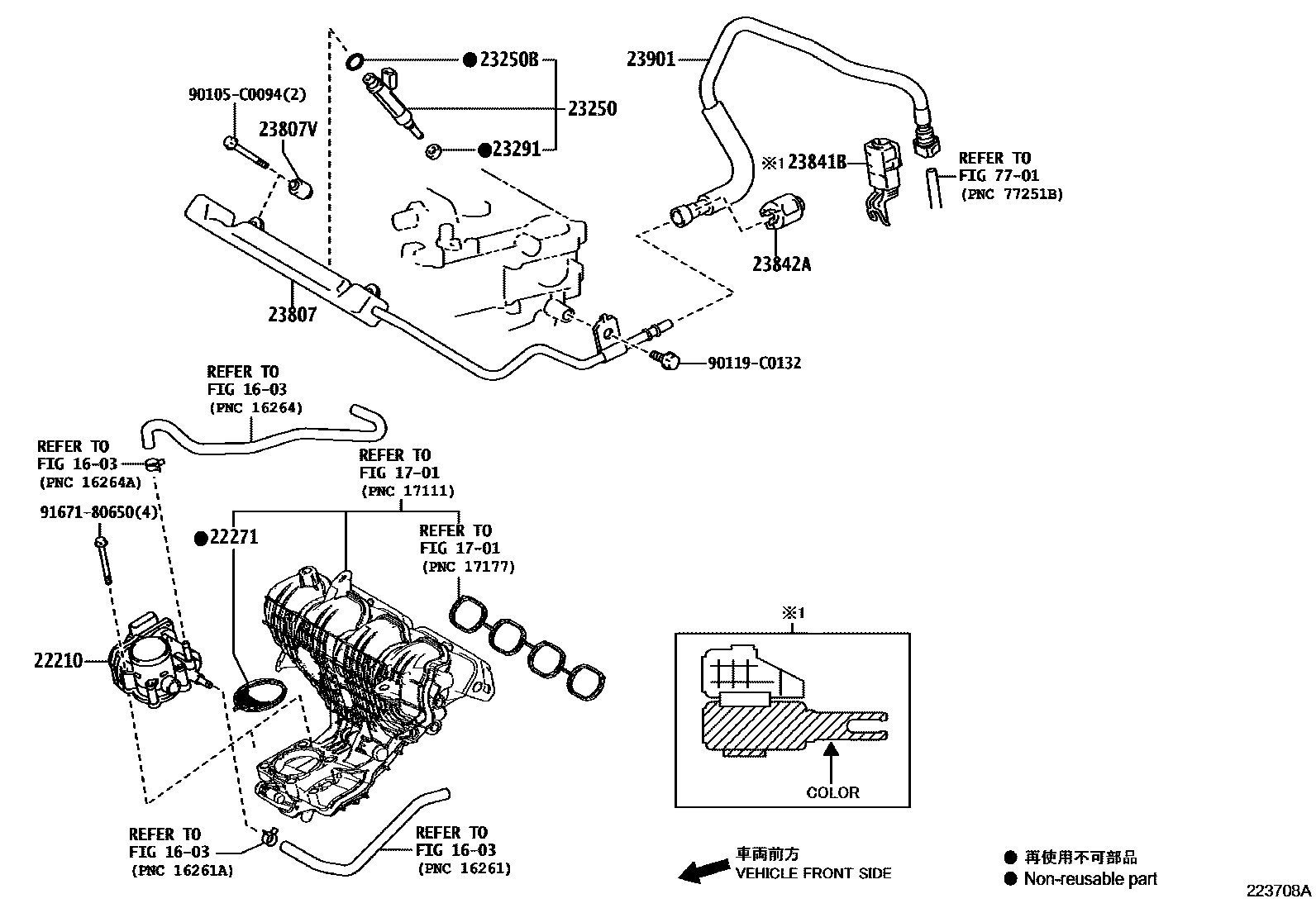

FUEL INJECTION SYSTEM

1603

1701

22210BODY ASSY, THROTTLE

main22030-0T060i8ZRFXE..ZWE183201904

22271GASKET, THROTTLE BODY

main22271-0T010i8ZRFXE..ZWE183201904

23250INJECTOR ASSY, FUEL

main23209-09120i8ZRFXE..ZWE183201904

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i8ZRFXE..ZWE183201904

(J)

main90301-C0072i8ZRFXE..ZWE183201904

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020i8ZRFXE..ZWE183201904

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-0T020i8ZRFXE..ZWE183201904

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i8ZRFXE..ZWE183201904

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37090i8ZRFXE..ZWE183201904

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0D020i8ZRFXE..ZWE183201904

(L)

main23842-28010i8ZRFXE..ZWE183201904

(J)

23901TUBE SUB-ASSY, FUEL

main23901-0T261i8ZRFXE..ZWE183201904

7701

90105C0094

main90105-C0094

90119C0132

main90119-C0132

9167180650

main91671-80650

16 parts on this diagram · 1 diagram in section
