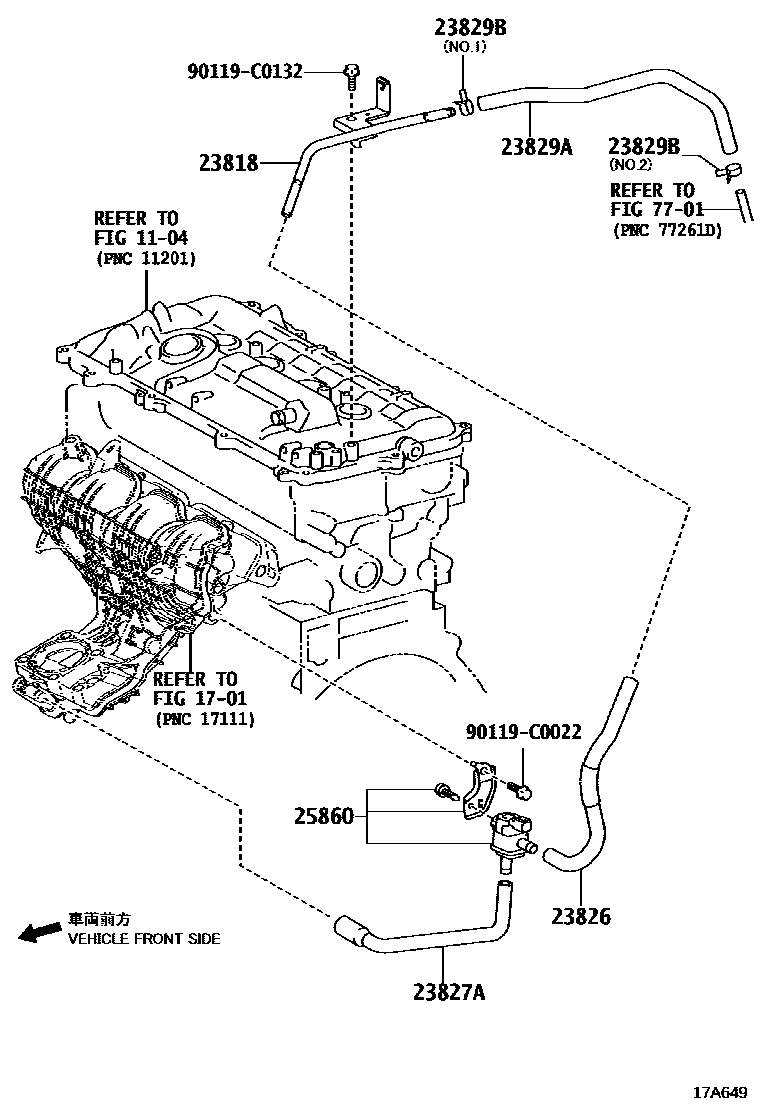

VACUUM PIPING

1104

1701

23818PIPE, FUEL VAPOR FEED

main23818-0T020i8ZRFXE..ZWE183202102

main23818-37010i8ZRFXE..ZWE183201904-202102

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0T380i8ZRFXE..ZWE183201904

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37040i8ZRFXE..ZWE183201904

23829AHOSE, FUEL VAPOR FEED

main23826-0T340i8ZRFXE..ZWE183201904

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-C0039i8ZRFXE..ZWE183201904

(L),NO.1

main96136-41901i8ZRFXE..ZWE183201904

(J),NO.1

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-37020i8ZRFXE..ZWE183201904

7701

90119C0022

main90119-C0022

90119C0132

main90119-C0132

11 parts on this diagram · 1 diagram in section
