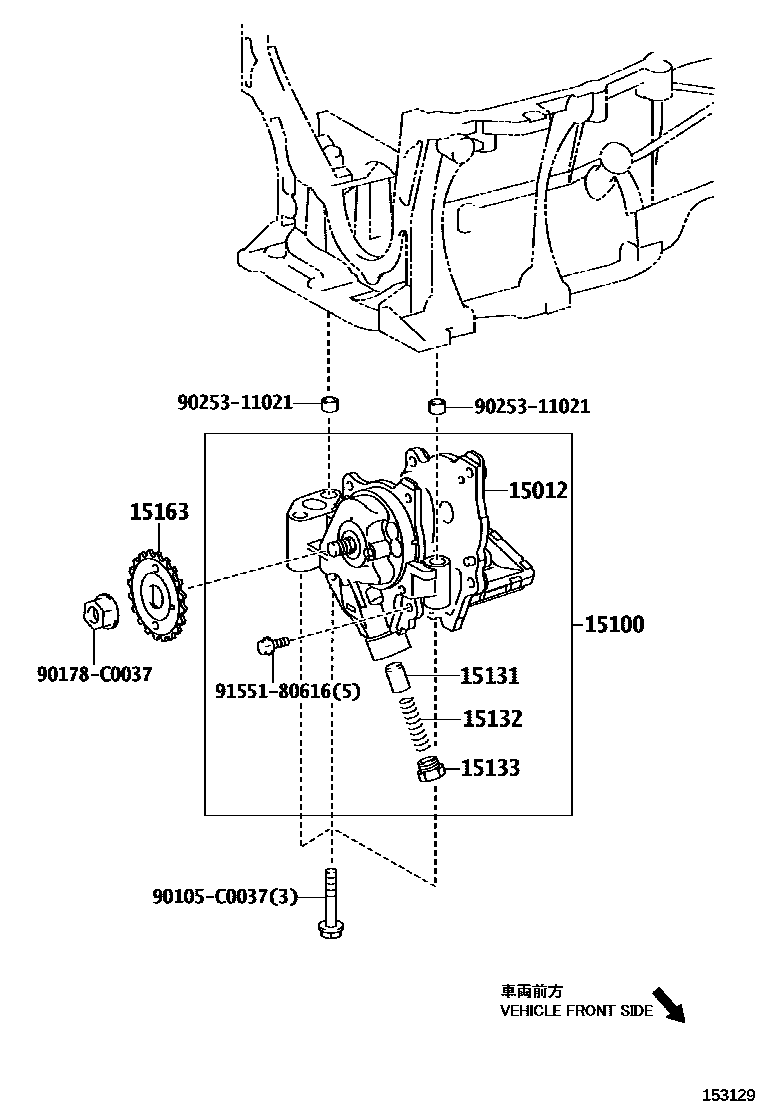

ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-37010i8ZRFXE..ZWE183201904

15100PUMP ASSY, OIL

main15100-37040i8ZRFXE..ZWE183201904

15131VALVE, OIL PUMP RELIEF

main15131-0A040i8ZRFXE..ZWE183201904

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i8ZRFXE..ZWE183201904

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i8ZRFXE..ZWE183201904

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H050i8ZRFXE..ZWE183201904

90105C0037

main90105-C0037

90178C0037

main90178-C0037

9025311021

main90253-11021

9155180616

main91551-80616

10 parts on this diagram · 1 diagram in section
