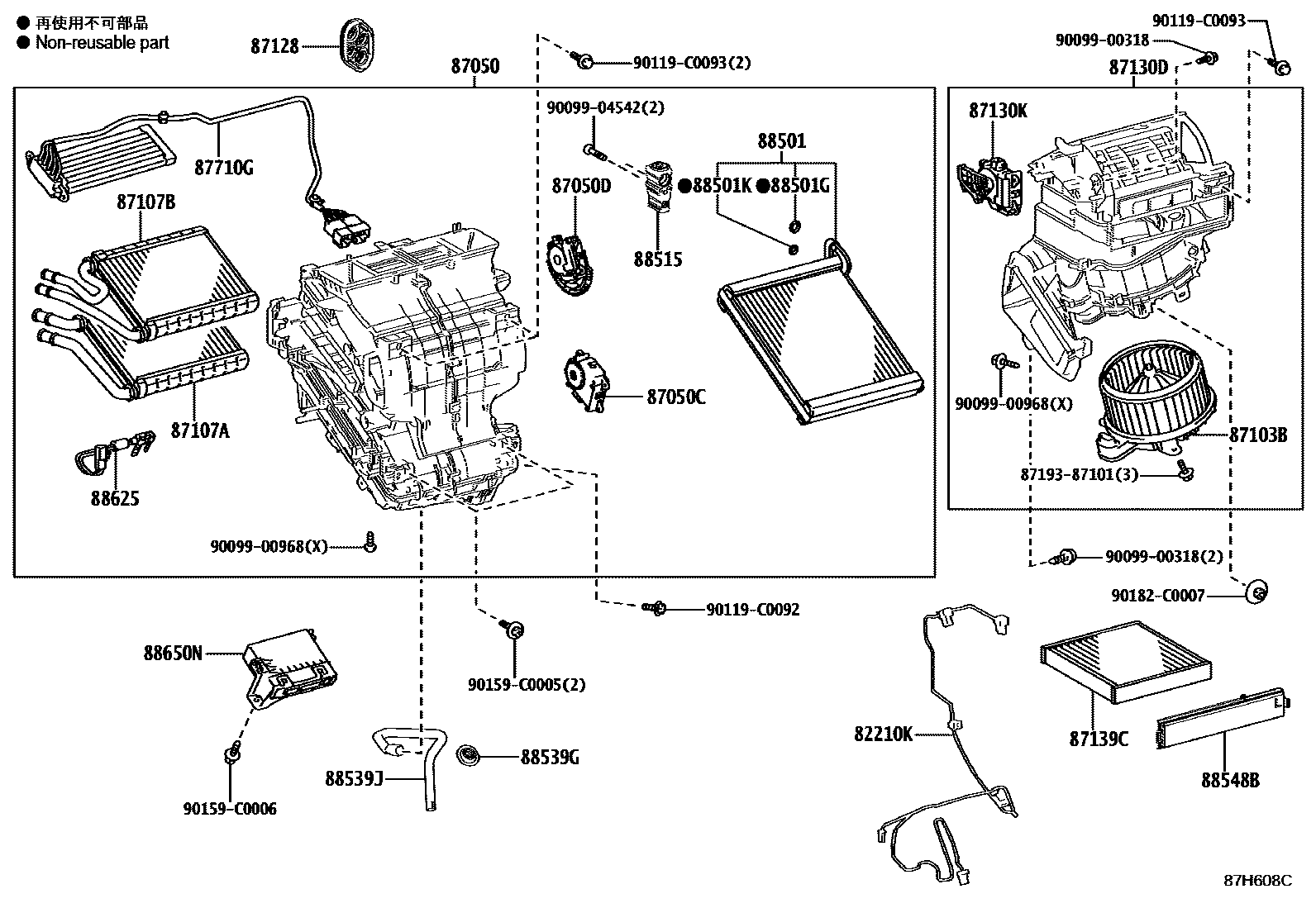

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02170iZWE183201903-202207

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0ZG80iZWE183201903-202207

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-02310iZWE183201903-202207

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-02320iZWE183201903-202207

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02600iZWE183201903-202207

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02380iZWE183201903-202207

87107BUNIT SUB-ASSY, HEATER RADIATOR

main87107-02390iZWE183201903-202207

87128GROMMET, HEATER

main87128-02160iZWE183201903-202207

87130DBLOWER ASSY

main87130-02B90iZWE183201903-202207

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-02340iZWE183201903-202207

87139CFILTER, CLEAN AIR

main87139-0R020iZWE183201903-202207

MICRO DUST FILTER,OE PART

main87139-50100iZWE183201903-202207

POLLEN DEODORANT

87710GQUICK HEATER ASSY

main87710-02120iZWE183201903-202207

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02340iZWE183201903-202207

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iZWE183201903-202207

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iZWE183201903-202207

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-02810iZWE183201903-202207

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iZWE183201903-202207

88539JHOSE, DRAIN COOLER

main88539-02390iZWE183201903-202207

88548BCASE, AIR FILTER

main88548-02100iZWE183201903-202207

88625THERMISTOR, COOLER, NO.1

main88625-0D100iZWE183201903-202207

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02L90iZWE183201903-202207

8719387101

main87193-87101

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

90119C0092

main90119-C0092

90119C0093

main90119-C0093

90159C0005

main90159-C0005

90159C0006

main90159-C0006

90182C0007

main90182-C0007

30 parts on this diagram · 1 diagram in section
