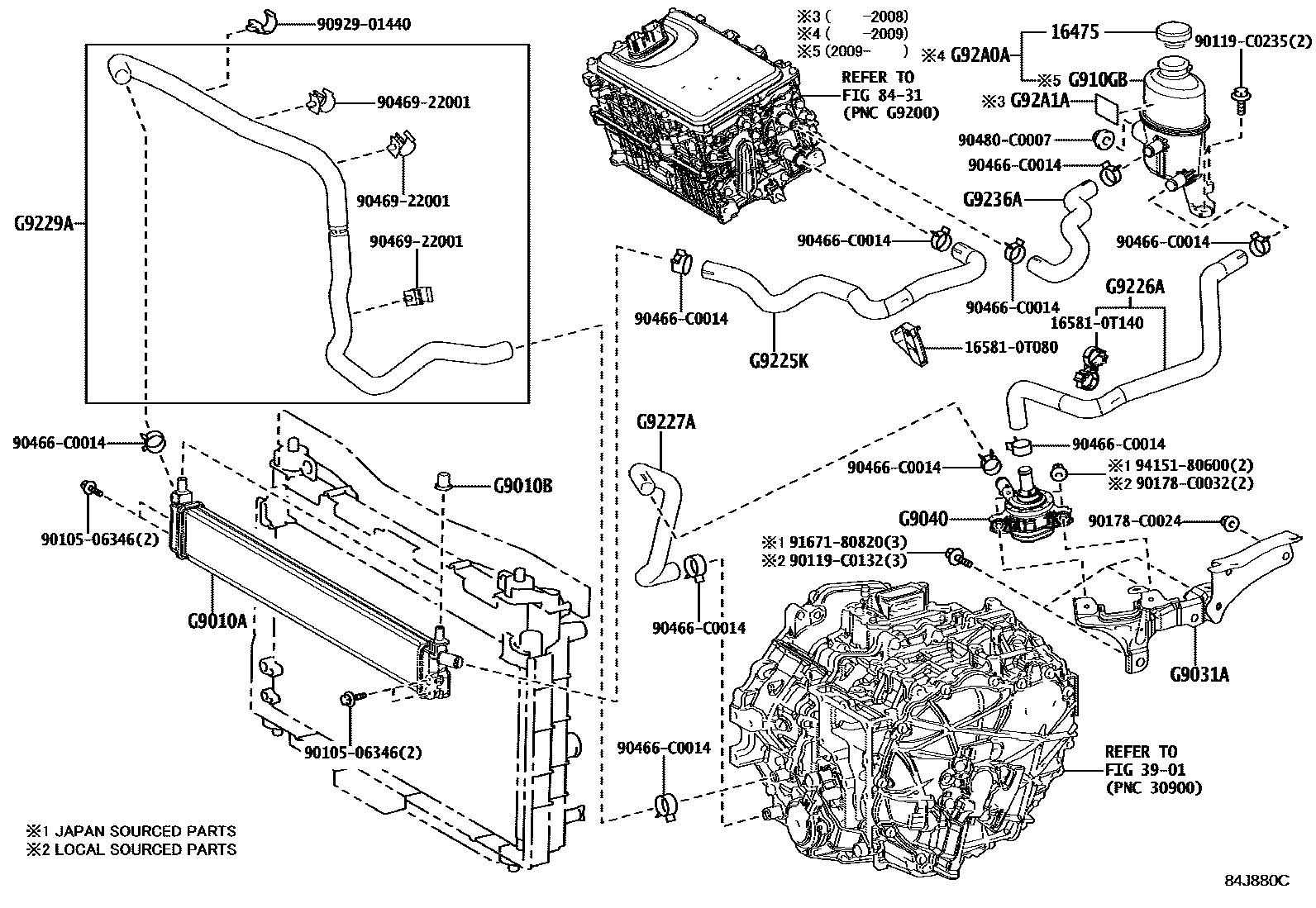

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-0T081i8ZRFXE..ZWE183202010-202207

LOCAL SOURCED PARTS

main16475-28140i8ZRFXE..ZWE183201903-202010

main16475-28140i8ZRFXE..ZWE183202010-202207

JAPAN SOURCED PARTS

3901

8431

G9010ARADIATOR ASSY

mainG901012010iZWE183201903-202207

G9010BCUSHION, INVERTER RADIATOR

main16716-37010iZWE183201903-202207

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903102010iZWE183201903-202207

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904002040iZWE183202104-202207

LOCAL SOURCED PARTS

mainG904052020iZWE183202104-202207

JAPAN SOURCED PARTS

mainG904052020iZWE183201903-202104

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G02010iZWE183202009-202207

G9225KHOSE, INVERTER COOLING, NO.1

mainG922502020iZWE183201903-202207

G9226AHOSE, INVERTER COOLING, NO.2

mainG922602020iZWE183201903-202207

G9227AHOSE, INVERTER COOLING, NO.3

mainG922702020iZWE183201903-202207

G9229AHOSE, INVERTER COOLING, NO.5

mainG922902010iZWE183201903-202207

G9236AHOSE, INVERTER COOLING, NO.6

mainG923602010iZWE183201903-202207

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H002020iZWE183201903-202009

subG910G-02010

sub16475-0T081

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iZWE183201903-202008

165810T080CLAMP, HOSE(FOR WATER HOSE)

main16581-0T080

165810T140CLAMP, HOSE(FOR WATER HOSE)

main16581-0T140

9010506346

main90105-06346

90119C0132

main90119-C0132

90119C0235

main90119-C0235

90178C0024

main90178-C0024

90178C0032

main90178-C0032

90466C0014

main90466-C0014

9046922001

main90469-22001

90480C0007

main90480-C0007

9092901440

main90929-01440

9167180820

main91671-80820

9415180600

main94151-80600

28 parts on this diagram · 1 diagram in section
