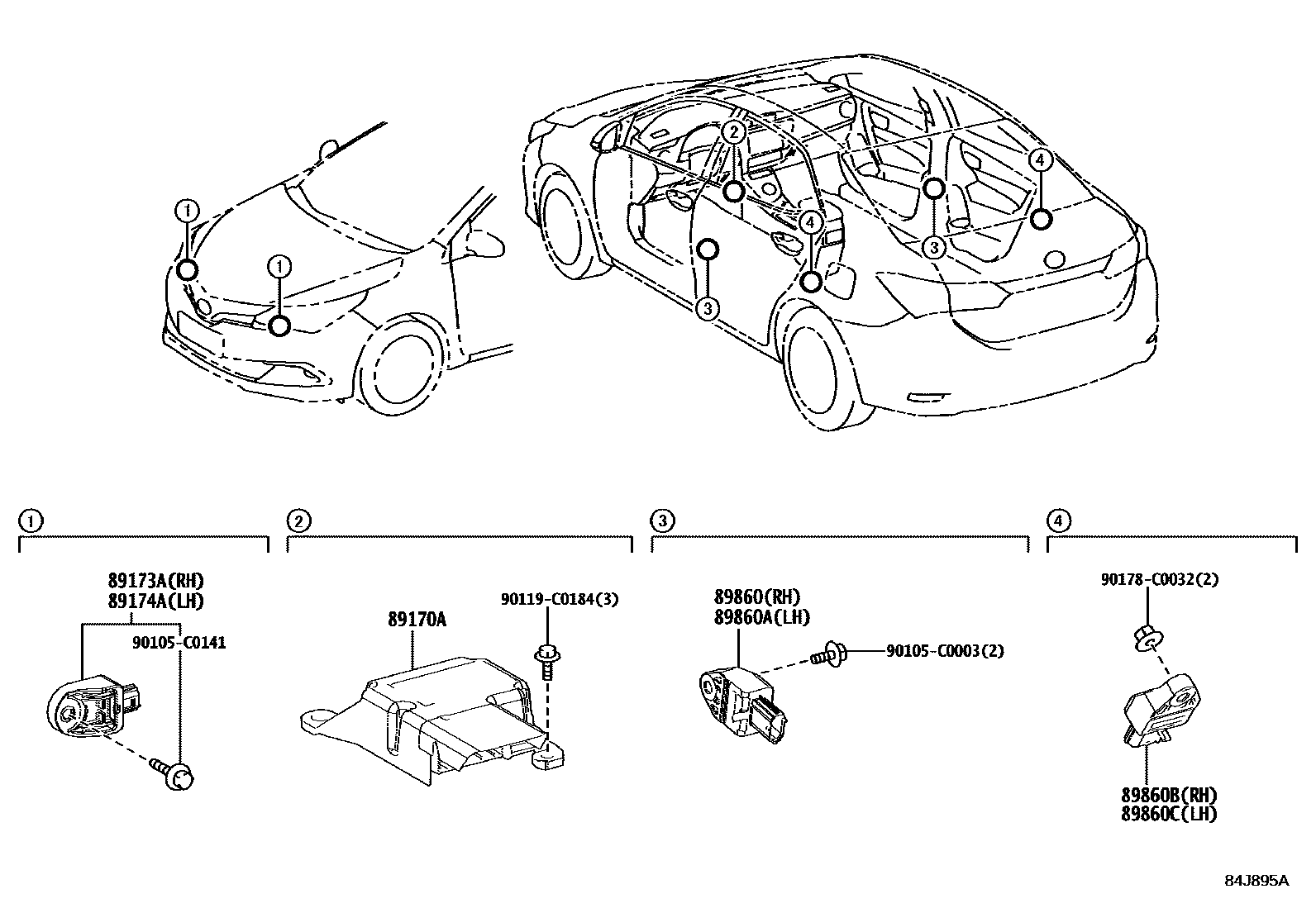

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-02S50iZWE183201903-202007

sub89170-02U40

main89170-02U40iZWE183202008-202207

89173ASENSOR, AIRBAG, FRONT RH

main89173-09B10iZWE183201903-202103

main89173-09B10iZWE183202103-202207

MARK 89173-02110

main89173-79095iZWE183202103-202207

MARK 89173-78010

89174ASENSOR, AIRBAG, FRONT LH

main89173-09B10iZWE183201903-202103

main89173-09B10iZWE183202103-202207

MARK 89173-02110

main89173-79095iZWE183202103-202207

MARK 89173-78010

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02240iZWE183201903-202103

main89831-02240iZWE183202103-202207

MARK 89831-02240

main89831-28060iZWE183202103-202207

MARK 89831-28060

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02240iZWE183201903-202103

main89831-02240iZWE183202103-202207

MARK 89831-02240

main89831-28060iZWE183202103-202207

MARK 89831-28060

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-02250iZWE183201903-202207

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-02250iZWE183201903-202207

90105C0003

main90105-C0003

90105C0141

main90105-C0141

90119C0184

main90119-C0184

90178C0032

main90178-C0032

11 parts on this diagram · 1 diagram in section
