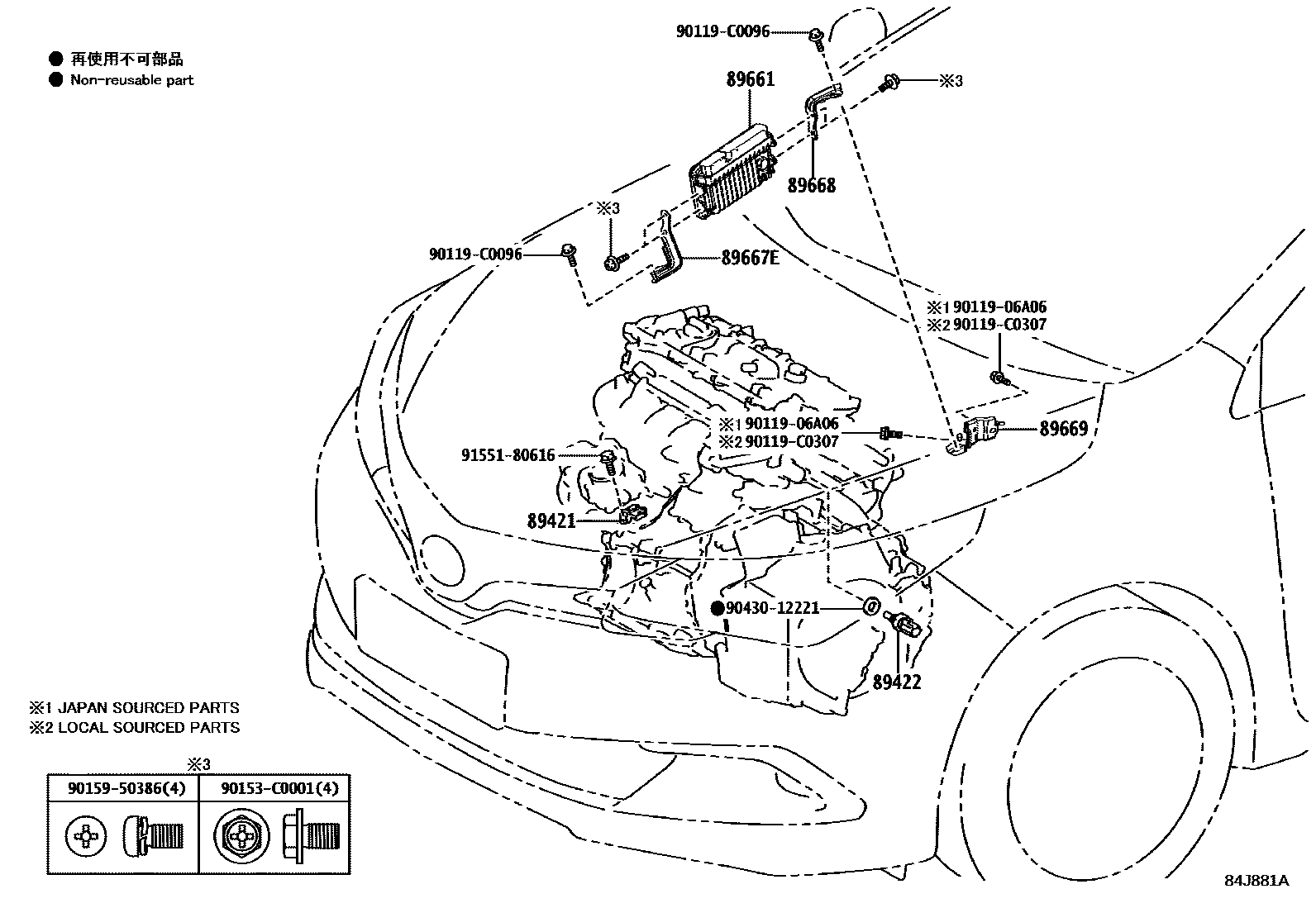

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZWE183201903-202207

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iZWE183201903-202207

89661COMPUTER, ENGINE CONTROL

main89666-02520iZWE183201903-202207

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02310iZWE183201903-202207

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02290iZWE183201903-202207

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-02100iZWE183201903-202207

9011906A06

main90119-06A06

90119C0096

main90119-C0096

90119C0307

main90119-C0307

90153C0001

main90153-C0001

9015950386

main90159-50386

9043012221

main90430-12221

9155180616

main91551-80616

13 parts on this diagram · 1 diagram in section
