WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1HIGH TENSION CABLE 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CONNECTOR 1/2 0011 1CONNECTOR 2/2

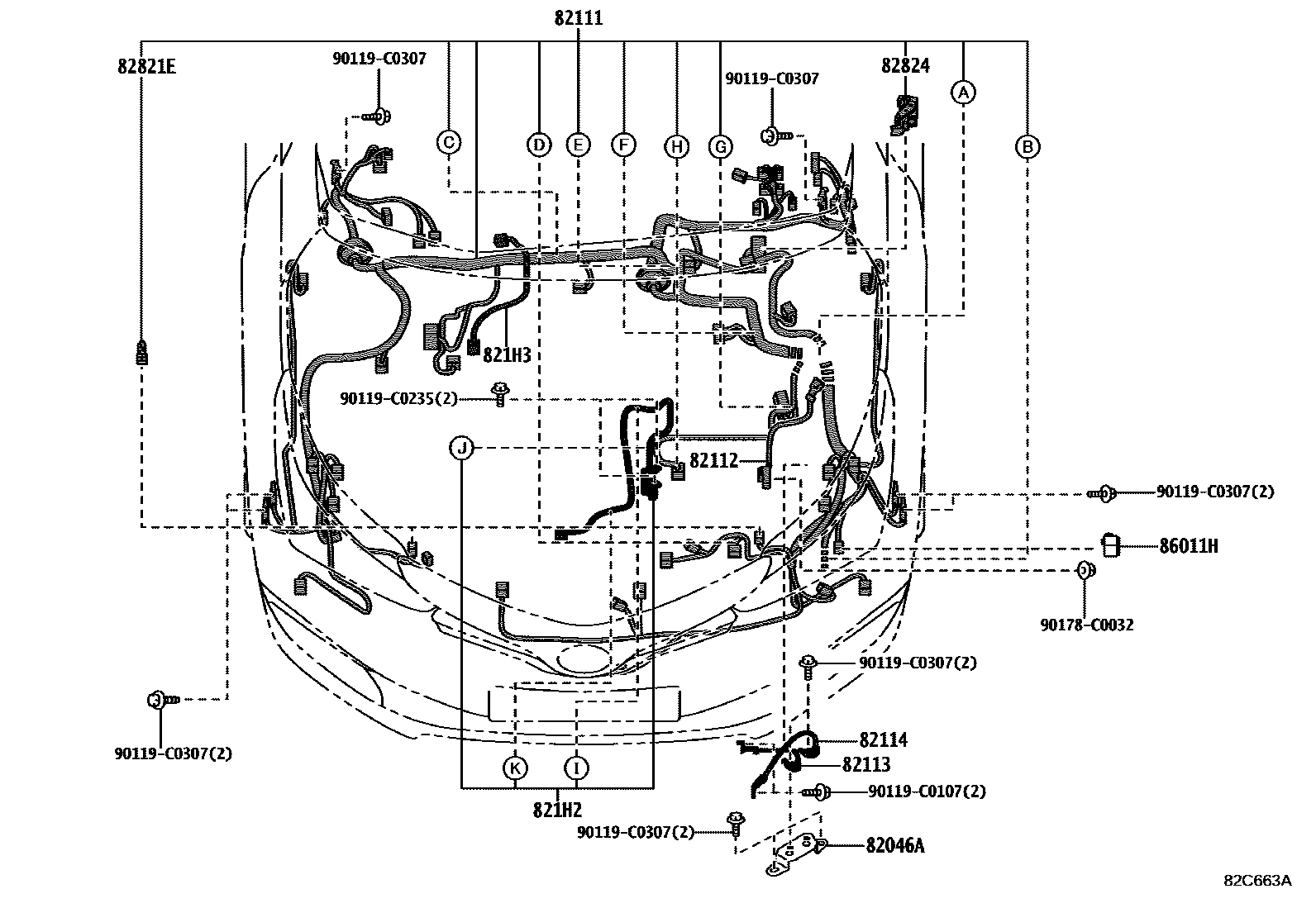

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-02010iZWE183201903-202207

82111WIRE, ENGINE ROOM MAIN

main82115-F2080iZWE183..GLXI,PREM201903-201911

main82115-F2081iZWE183..GLXI,PREM201911-202207

main82115-F2090iZWE183..GLI201903-201911

main82115-F2091iZWE183..GLI201911-202207

82112WIRE, ENGINE ROOM, NO.2

main82112-02050iZWE183201903-202207

82113WIRE, ENGINE ROOM, NO.3

main82113-02040iZWE183201903-202207

82114WIRE, ENGINE ROOM, NO.4

main82114-02030iZWE183201903-202207

821H2WIRE, HV AIR CONDITIONER

main821H2-02110iZWE183201903-202207

821H3WIRE, HV BATTERY PACK

main821H3-02030iZWE183201903-202207

82821ECOVER, CONNECTOR

main82821-42040iZWE183¥170201903-202207

82824CONNECTOR, WIRING HARNESS

main90980-12E30iZWE183201903-202207

86011HFILTER, NOISE

main90980-05383iZWE183¥3,180201903-202207

90119C0107

main90119-C0107

90119C0235

main90119-C0235

90119C0307

main90119-C0307

90178C0032

main90178-C0032

14 parts on this diagram · 11 diagrams in section
