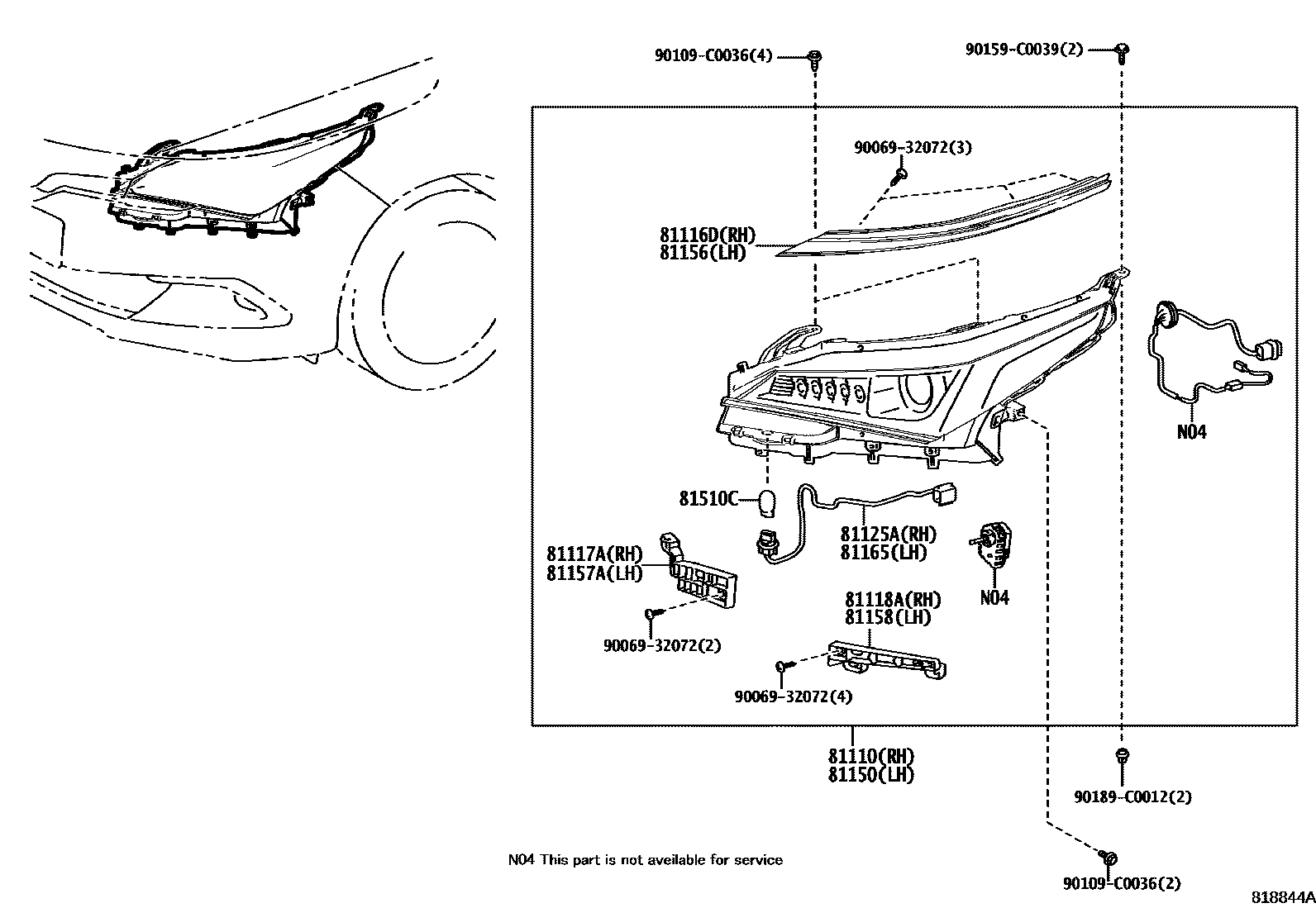

HEADLAMP
81110HEADLAMP ASSY, RH
81116DRIM, HEAD LAMP, RH
81117ABRACKET, HEADLAMP, RH
81118ABRACKET, HEADLAMP, RH
81125ACORD, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81156RIM, HEADLAMP, LH
81157ABRACKET, HEADLAMP, LH
81158BRACKET, HEADLAMP, LH
81165CORD, HEADLAMP, LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
9006932072
main90069-32072
90109C0036
main90109-C0036
90159C0039
main90159-C0039
90189C0012
main90189-C0012
15 parts on this diagram · 1 diagram in section
