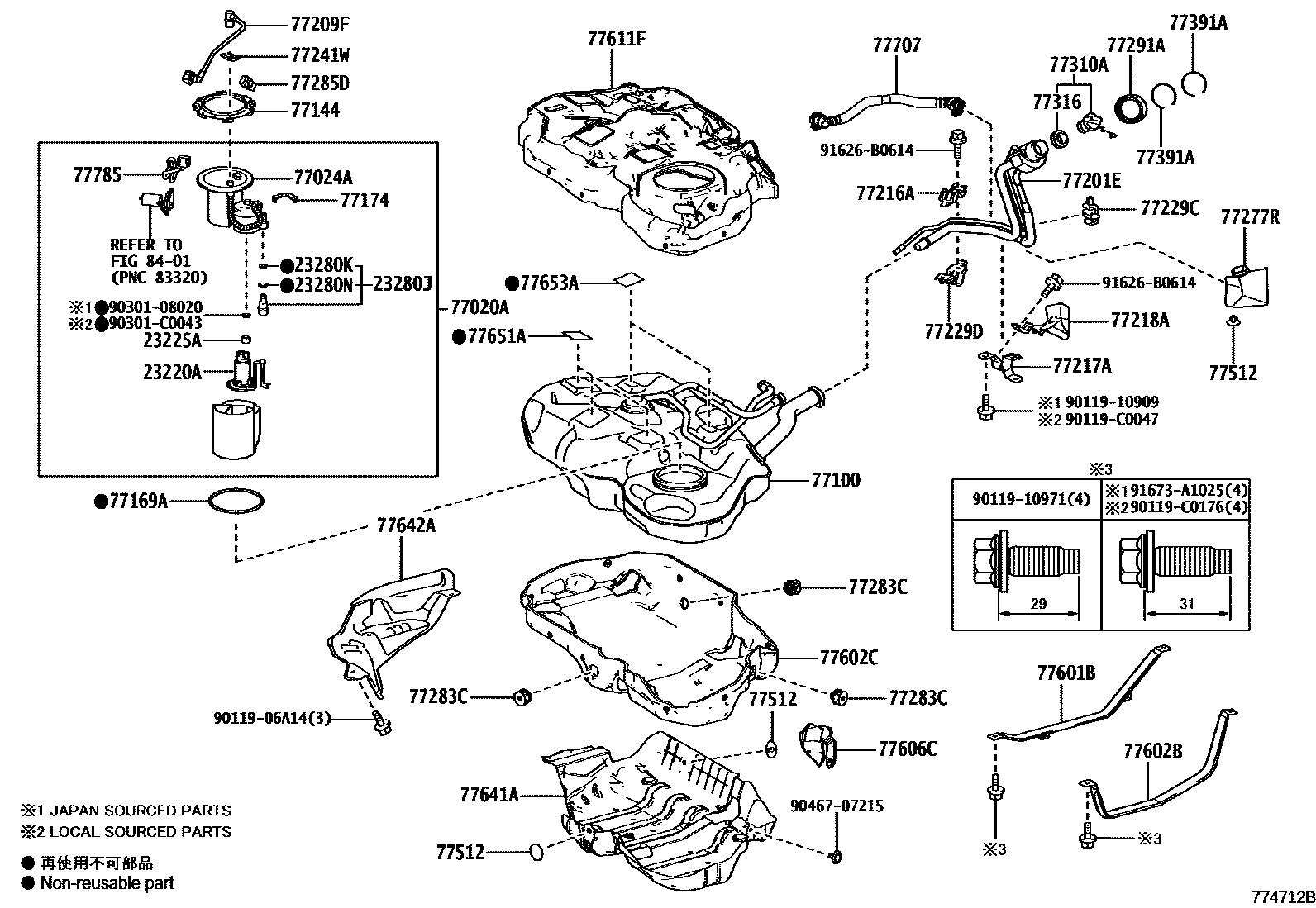

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
(L)
(J)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
(L)
(J)
77174SUPPORT, FUEL SUCTION, NO.1
(L)
(J)
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77229CCLAMP, BREATHER TUBE
77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4
77277RPROTECTOR, FUEL TANK FILLER PIPE
77283CBRACKET, FUEL TANK PROTECTOR
77285DCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77602CCOVER SUB-ASSY, FUEL TANK, LOWER
77606CPROTECTOR, FUEL TANK, NO.2
77611FCOVER, FUEL TANK, UPPER
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77651ACUSHION, FUEL TANK, NO.1
77653ACUSHION, FUEL TANK, NO.3
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
8401
9011906A14
main90119-06A14
9011910909
main90119-10909
9011910971
main90119-10971
90119C0047
main90119-C0047
90119C0176
main90119-C0176
9030108020
main90301-08020
90301C0043
main90301-C0043
9046707215
main90467-07215
91626B0614
main91626-B0614
91673A1025
main91673-A1025
49 parts on this diagram · 4 diagrams in section
