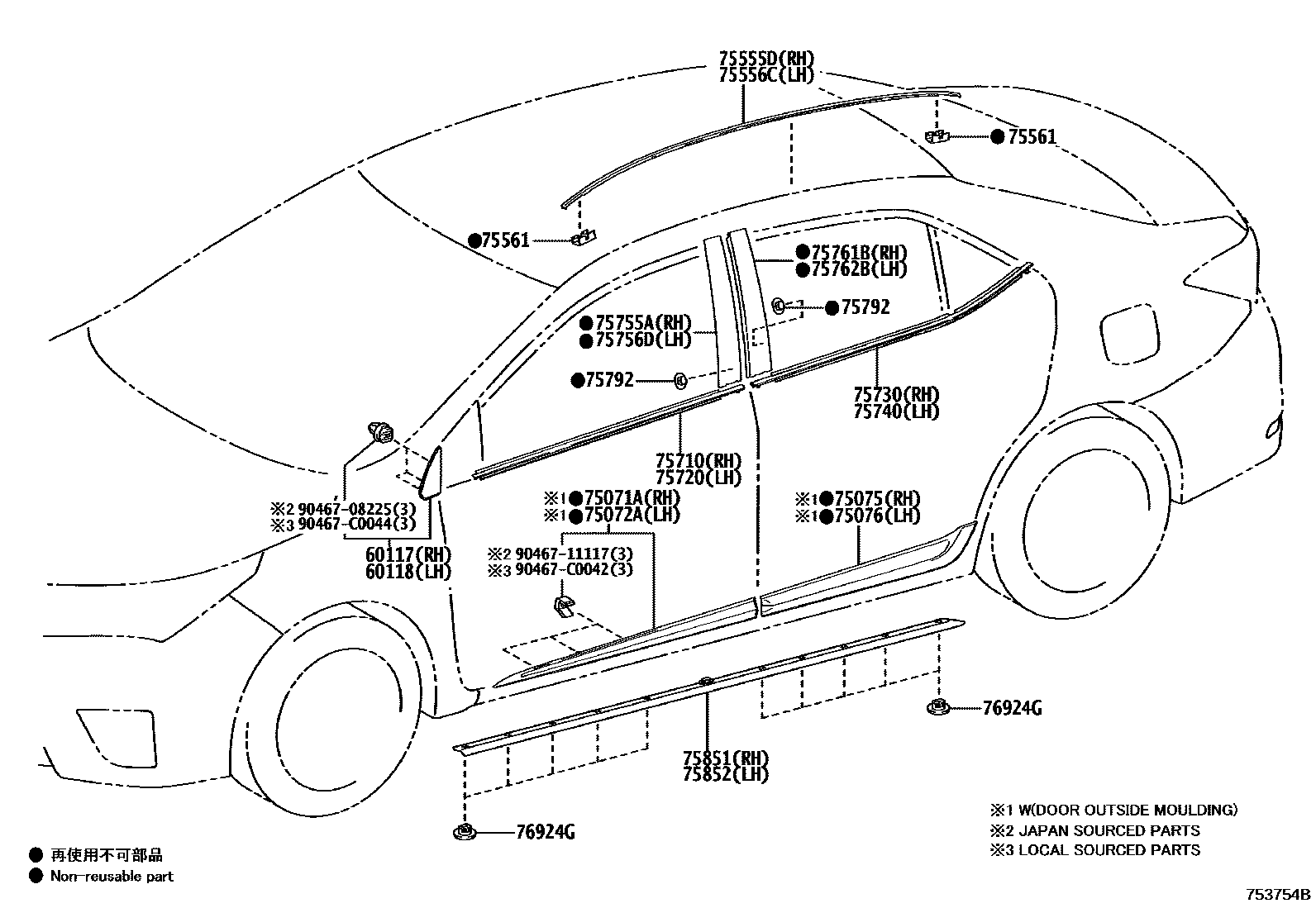

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
BLACK MC.,209
AVANT-GARDE BRONZE ME.,4V8
SILKY BEIGE ME.,4W1
SPIRITED AQUA ME.,791
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
BLACK MC.,209
AVANT-GARDE BRONZE ME.,4V8
SILKY BEIGE ME.,4W1
SPIRITED AQUA ME.,791
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
BLACK MC.,209
AVANT-GARDE BRONZE ME.,4V8
SILKY BEIGE ME.,4W1
SPIRITED AQUA ME.,791
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
BLACK MC.,209
AVANT-GARDE BRONZE ME.,4V8
SILKY BEIGE ME.,4W1
SPIRITED AQUA ME.,791
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
(L)
(J)
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75792CLIP, DOOR WINDOW FRAME MOULDING
75851MOULDING, ROCKER PANEL, RH
75852MOULDING, ROCKER PANEL, LH
76924GRETAINER, ROCKER PANEL MOULDING
9046708225
main90467-08225
9046711117
main90467-11117
90467C0042
main90467-C0042
90467C0044
main90467-C0044
25 parts on this diagram · 1 diagram in section
