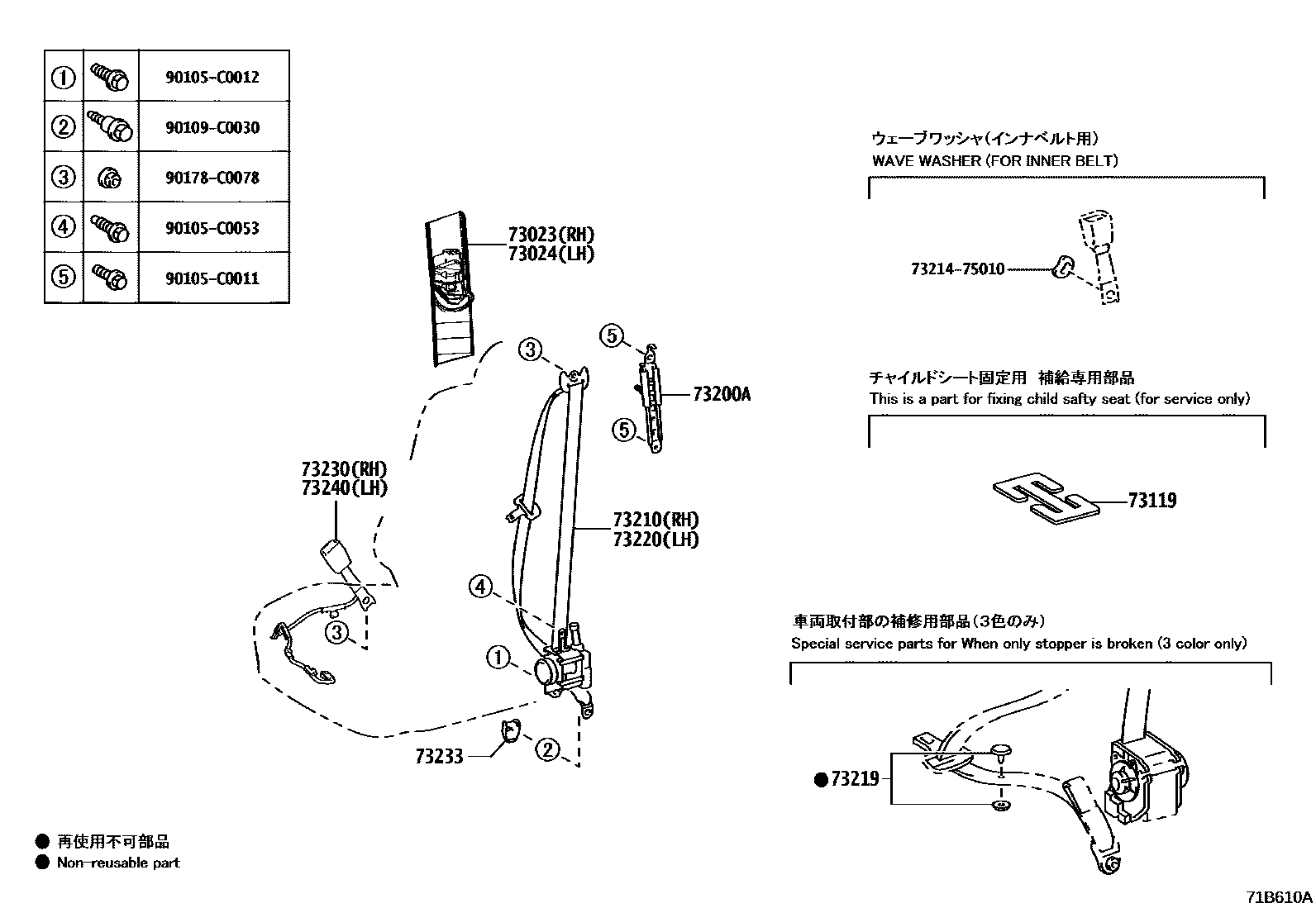

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02070-B0iZWE183201903-202207

LT.GRAY,TRIM2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02070-B0iZWE183201903-202207

LT.GRAY,TRIM2#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iZWE183201903-202207

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020iZWE183201903-202207

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02620-C0iZWE183201903-202207

BLACK,TRIM2#,4#

73219STOPPER, TONGUE PLATE

main73219-33010iZWE183201903-202207

BLACK

main73219-33020iZWE183201903-202207

GRAY

main73219-33030iZWE183201903-202207

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02440-C0iZWE183201903-202207

BLACK,TRIM2#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02A80-C0iZWE183201903-202207

BLACK,TRIM2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R030-C0iZWE183..GLXI201903-202207

BLACK,TRIM2#,4#

main73233-0R030-C0iZWE183..GLXI201903-202207

BLACK,TRIM0#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02A70-C0iZWE183..GLI,GLXI201903-202207

BLACK,TRIM2#,4#

main73230-02B00-C0iZWE183..PREM201903-202207

BLACK,TRIM2#,4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0053

main90105-C0053

90109C0030

main90109-C0030

90178C0078

main90178-C0078

16 parts on this diagram · 2 diagrams in section
