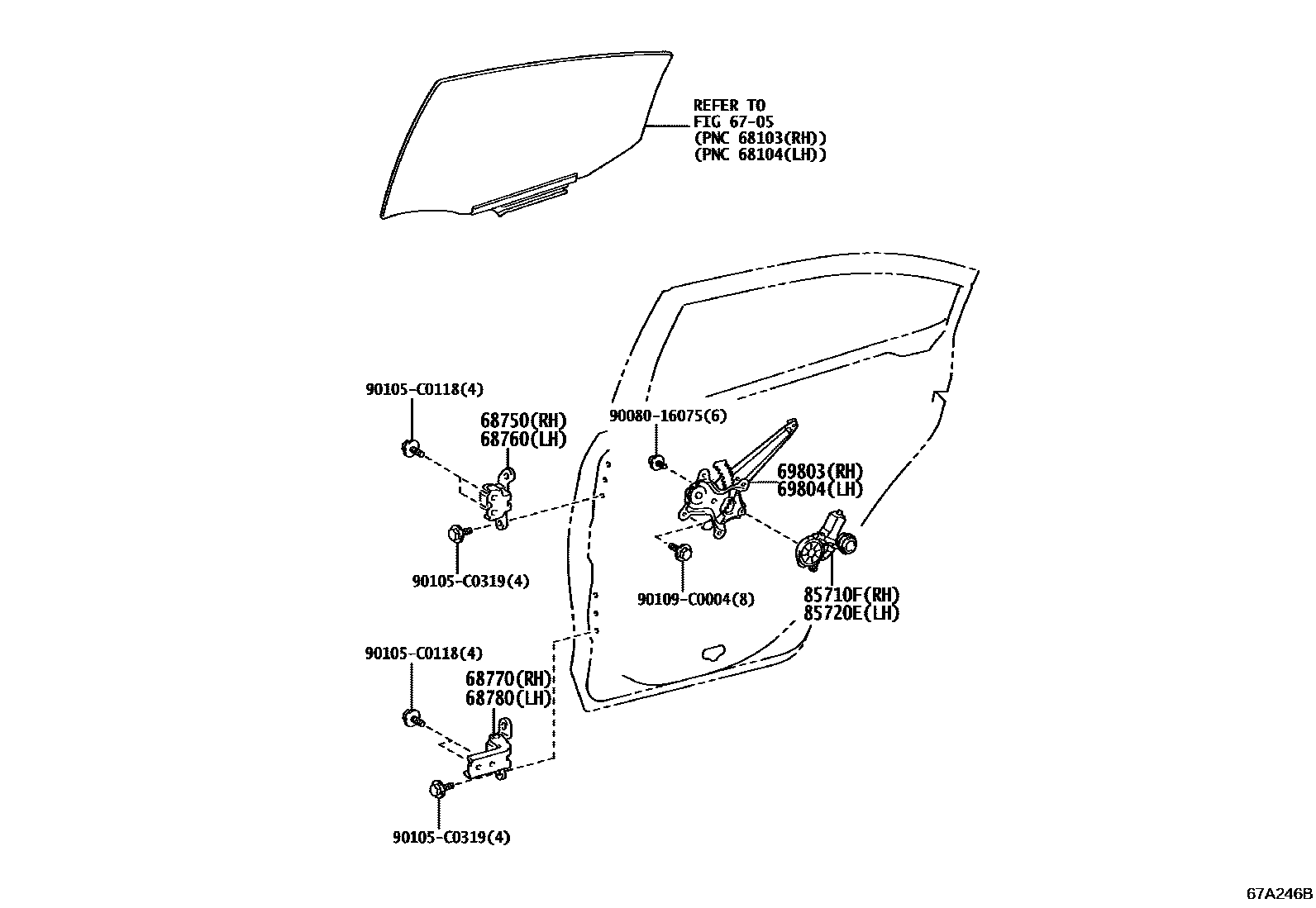

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iZWE183201903-202207

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iZWE183201903-202207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D021iZWE183201903-202207

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D021iZWE183201903-202207

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D150iZWE183201903-202207

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D150iZWE183201903-202207

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06210iZWE183201903-202207

sub85720-35140

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-06190iZWE183201903-202207

sub85710-35180

9008016075

main90080-16075

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90109C0004

main90109-C0004

13 parts on this diagram · 1 diagram in section
