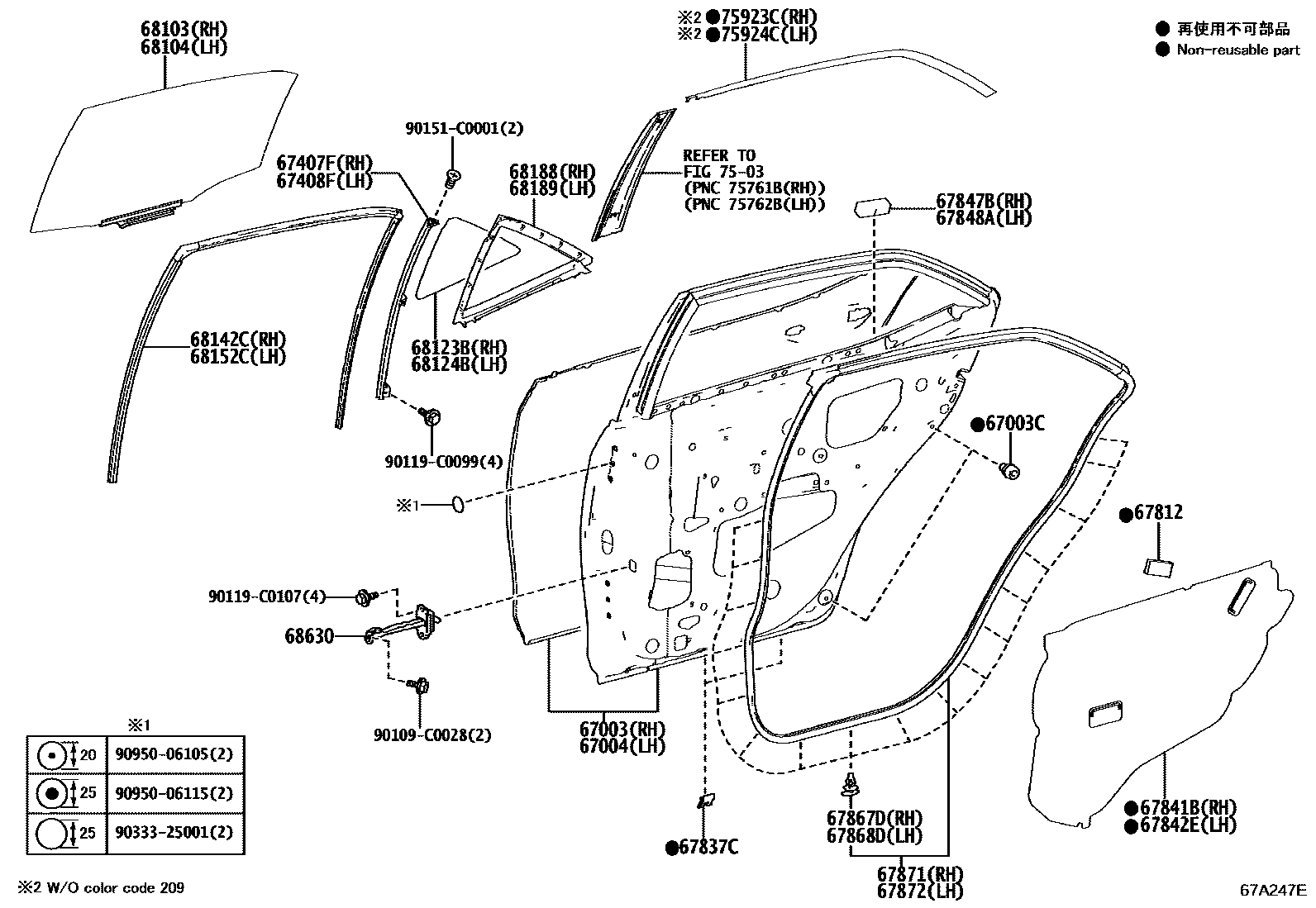

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02490iZWE183..GLI201903-202207

main67003-02500iZWE183..GLXI,PREM201903-202207

67003CCUSHION, REAR DOOR PANEL

main90541-09124iZWE183201903-202207

(J)

main90541-C0003iZWE183201903-202207

(L)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02490iZWE183..GLI201903-202207

main67004-02500iZWE183..GLXI,PREM201903-202207

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-02170iZWE183201903-202207

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-02170iZWE183201903-202207

67812PAD, REAR DOOR SILENCER

main67811-02390iZWE183201903-202207

67837CSEAL, REAR DOOR DUST PROOF

main67837-02150iZWE183201903-202207

(L)

main67837-48050iZWE183201903-202207

(J)

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-02410iZWE183201903-202207

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02380iZWE183201903-202207

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02080iZWE183201903-202207

67848ASEAL, REAR DOOR VENT, LH NO.1

main67847-02080iZWE183201903-202207

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-0D030iZWE183201903-202207

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iZWE183201903-202207

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02290iZWE183201903-202207

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02290iZWE183201903-202207

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02520iZWE183201903-202207

MARK=ASAHI(E000011)

main68103-02680iZWE183201903-202207

MARK=FUYAO(E006888)

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02530iZWE183201903-202207

MARK=ASAHI(E000011)

main68104-02680iZWE183201903-202207

MARK=FUYAO(E006888)

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02440iZWE183201903-202207

MARK=ASAHI(E000011)

main68123-02590iZWE183201903-202207

MARK=FUYAO(E006888)

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02440iZWE183201903-202207

MARK=ASAHI(E000011)

main68124-02590iZWE183201903-202207

MARK=FUYAO(E006888)

68142CRUN, REAR DOOR GLASS, RH

main68142-02260iZWE183201903-202207

68152CRUN, REAR DOOR GLASS, LH

main68152-02260iZWE183201903-202207

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02210iZWE183201903-202207

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02210iZWE183201903-202207

68630CHECK ASSY, REAR DOOR

main68630-02310iZWE183201903-202207

7503

75923CTAPE, BLACK OUT, NO.2 RH

main75923-02270iZWE183201903-202207

0 OR 1PIECE,REF.ILL.

75924CTAPE, BLACK OUT, NO.2 LH

main75924-02270iZWE183201903-202207

0 OR 1PIECE,REF.ILL.

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

9033325001

main90333-25001

9095006105

main90950-06105

9095006115

main90950-06115

34 parts on this diagram · 2 diagrams in section
