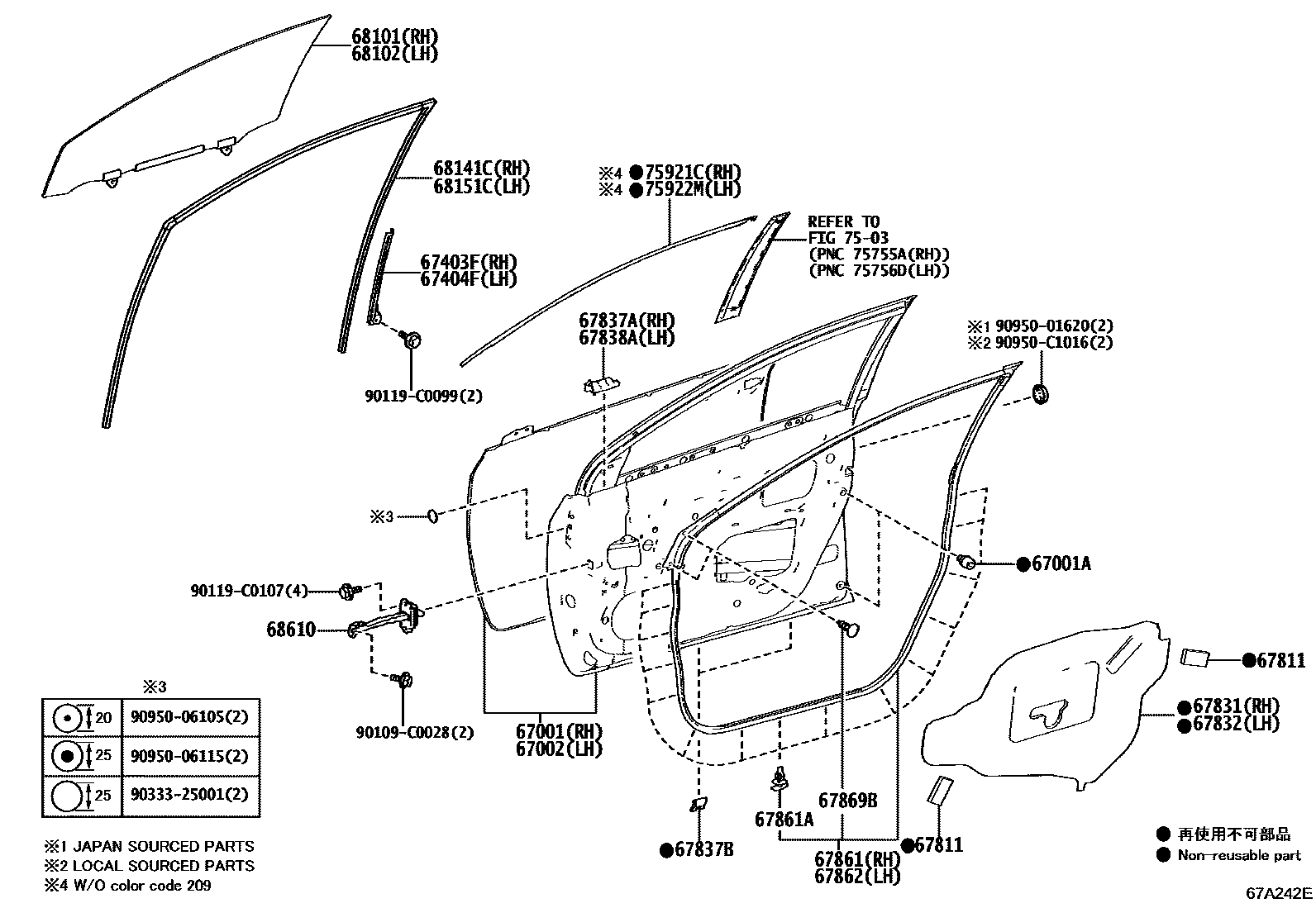

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
(J)
(L)
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
67837BSEAL, FRONT DOOR DUST PROOF
(L)
(J)
67838ASEAL, FRONT DOOR VENT, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
7503
75921CTAPE, BLACK OUT, NO.1 RH
0 OR 1PIECE,REF.ILL.
75922MTAPE, BLACK OUT, NO.1 LH
0 OR 1PIECE,REF.ILL.
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0107
main90119-C0107
9033325001
main90333-25001
9095001620
main90950-01620
9095006105
main90950-06105
9095006115
main90950-06115
90950C1016
main90950-C1016
31 parts on this diagram · 2 diagrams in section
