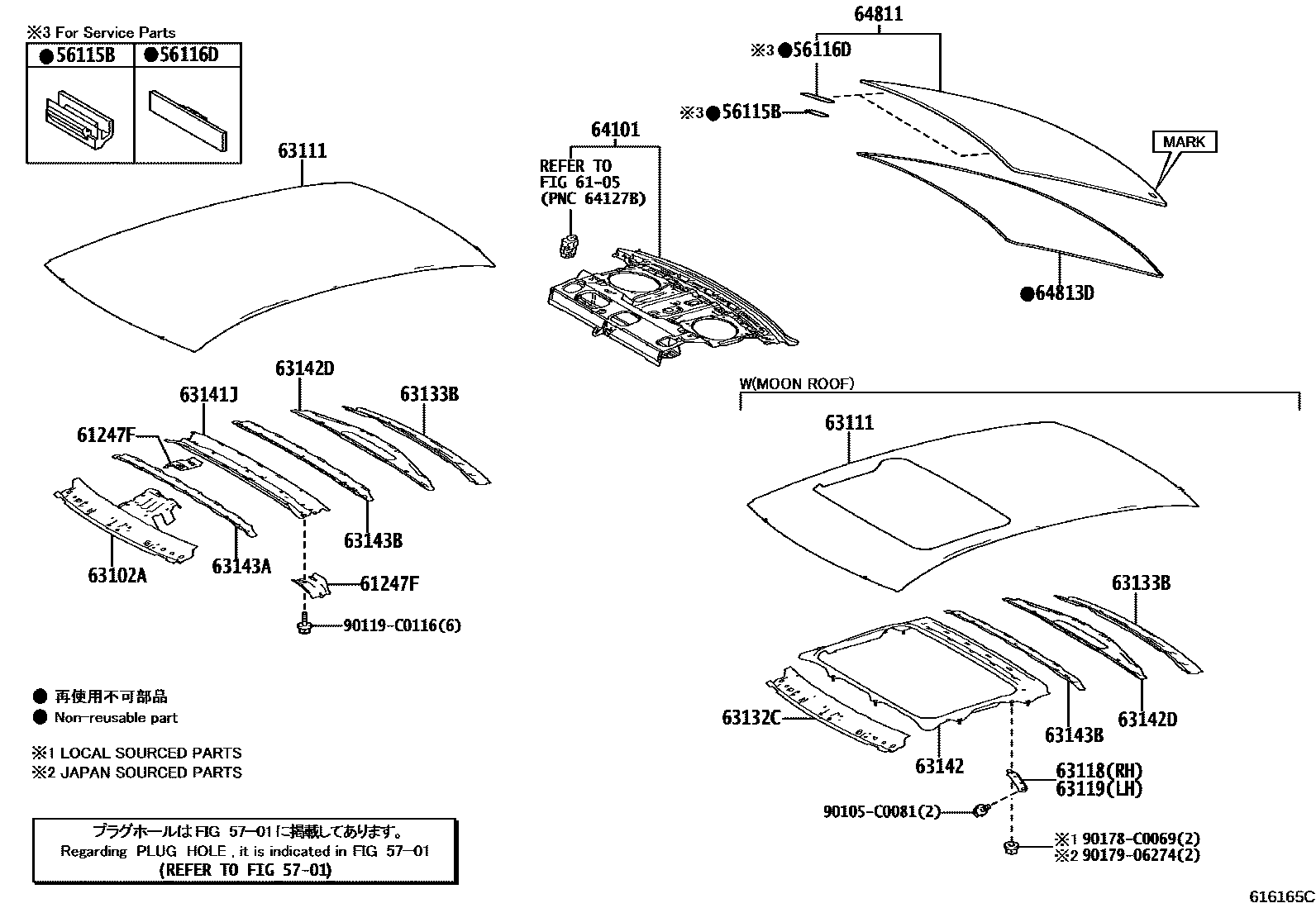

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2iZWE183201903-202207

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iZWE183201903-202207

5701

6105

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-02200×2iZWE183..GLI201903-202207

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02390iZWE183..GLI201903-202207

63111PANEL, ROOF

main63111-02540supersedes 63111-02570iZWE183..GLXI,PREM201903-202207

MOON ROOF PACKAGE

63118SUPPORT, ROOF PANEL, RH

main63118-02090

63119SUPPORT, ROOF PANEL, LH

main63118-02090

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-02220iZWE183..GLXI,PREM201903-202207

MOON ROOF PACKAGE

63133BFRAME, BACK WINDOW

main63133-02170iZWE183201903-202207

63141JREINFORCEMENT, ROOF PANEL

main63141-02210iZWE183..GLI201903-202207

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-02100iZWE183..GLXI,PREM201903-202207

MOON ROOF PACKAGE

63142DREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63127-02120iZWE183201903-202207

63143AREINFORCEMENT, ROOF PANEL

main63143-02190iZWE183..GLI201903-202207

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63148-02090supersedes 63144-02220iZWE183..GLXI,PREM201903-202207

MOON ROOF PACKAGE

64101PANEL SUB-ASSY, UPPER BACK

main64101-02650iZWE183201903-202207

64811GLASS, BACK WINDOW

main64801-02300iZWE183201903-202207

GLASS MARK=E000546

main64801-02340iZWE183201903-202104

GLASS MARK=E000011

main64801-02390iZWE183201903-202207

GLASS MARK=E005771

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-02120iZWE183201903-202207

90105C0081

main90105-C0081

90119C0116

main90119-C0116

90178C0069

main90178-C0069

9017906274

main90179-06274

23 parts on this diagram · 2 diagrams in section
