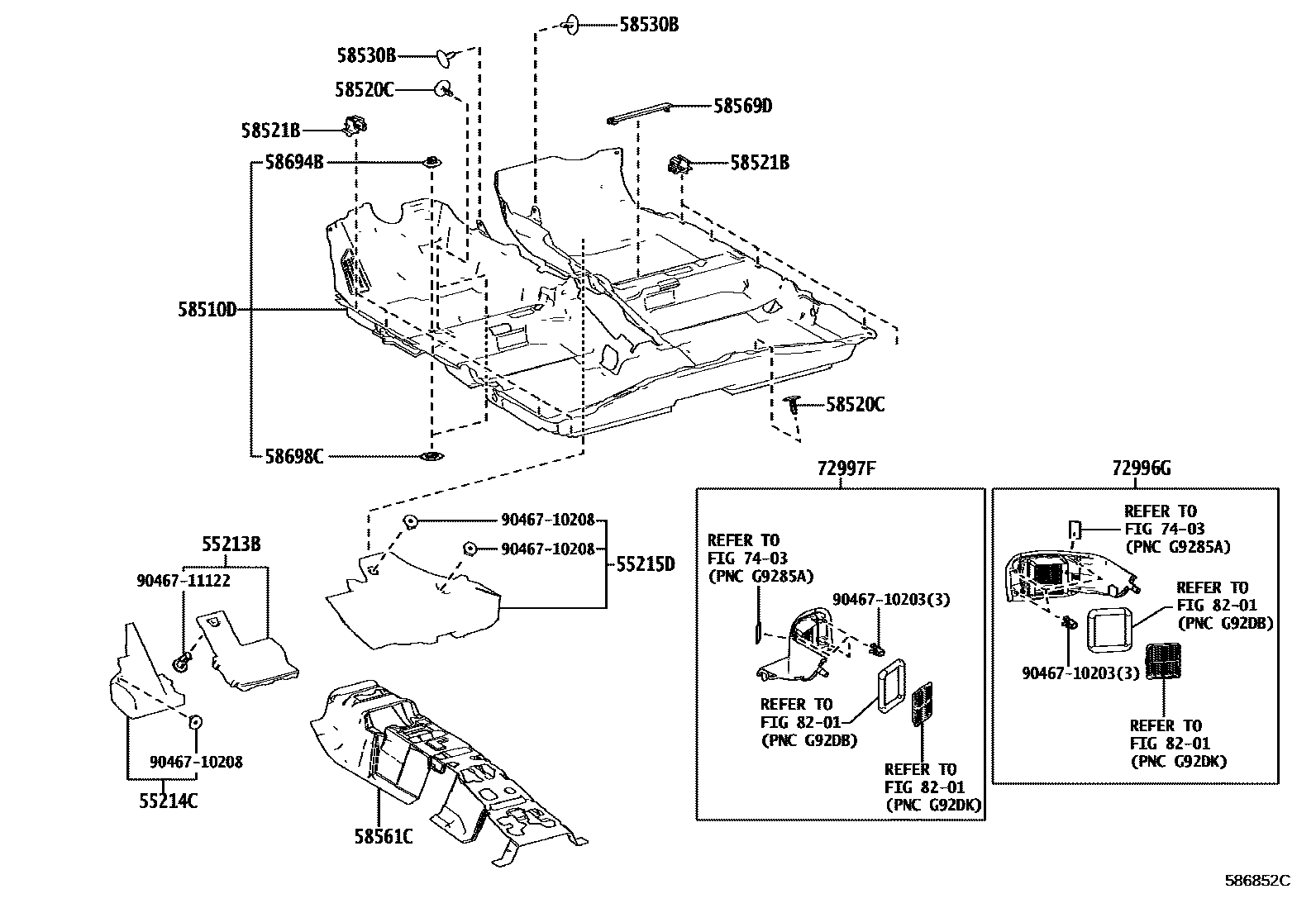

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-02270iZWE183201903-202207

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-02050iZWE183201903-202207

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-02050iZWE183201903-202207

58510DCARPET ASSY, FLOOR, FRONT

main58510-02U80-C0iZWE183201903-202207

BLACK,TRIM2#,4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iZWE183201903-201907

BLACK,TRIM0#,2#,4#

sub90467-07049¥90

main90467-C0059-C0iZWE183201907-202207

BLACK,TRIM2#,4#

58521BHOOK, FLOOR CARPET

main58521-02180iZWE183201903-202207

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-C0016-C1iZWE183201903-202207

BLACK

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02400iZWE183201903-202207

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02070-C0iZWE183201903-202207

BLACK,TRIM0#,2#,4#

58694BPLATE, MAT SET, UPPER

main58694-76010iZWE183¥200201903-202207

58698CPLATE, MAT SET, LOWER

main58698-76010iZWE183¥190201903-202207

72996GCOVER, REAR SEAT, NO.2 RH

main72996-02160-C0iZWE183201903-202207

BLACK,TRIM2#,4#

72997FCOVER, REAR SEAT, NO.2 LH

main72997-02080-C0iZWE183201903-202207

BLACK,TRIM2#,4#

7403

8201

9046710203

main90467-10203¥60

9046710208

main90467-10208¥90

9046711122

main90467-11122¥100

18 parts on this diagram · 2 diagrams in section
