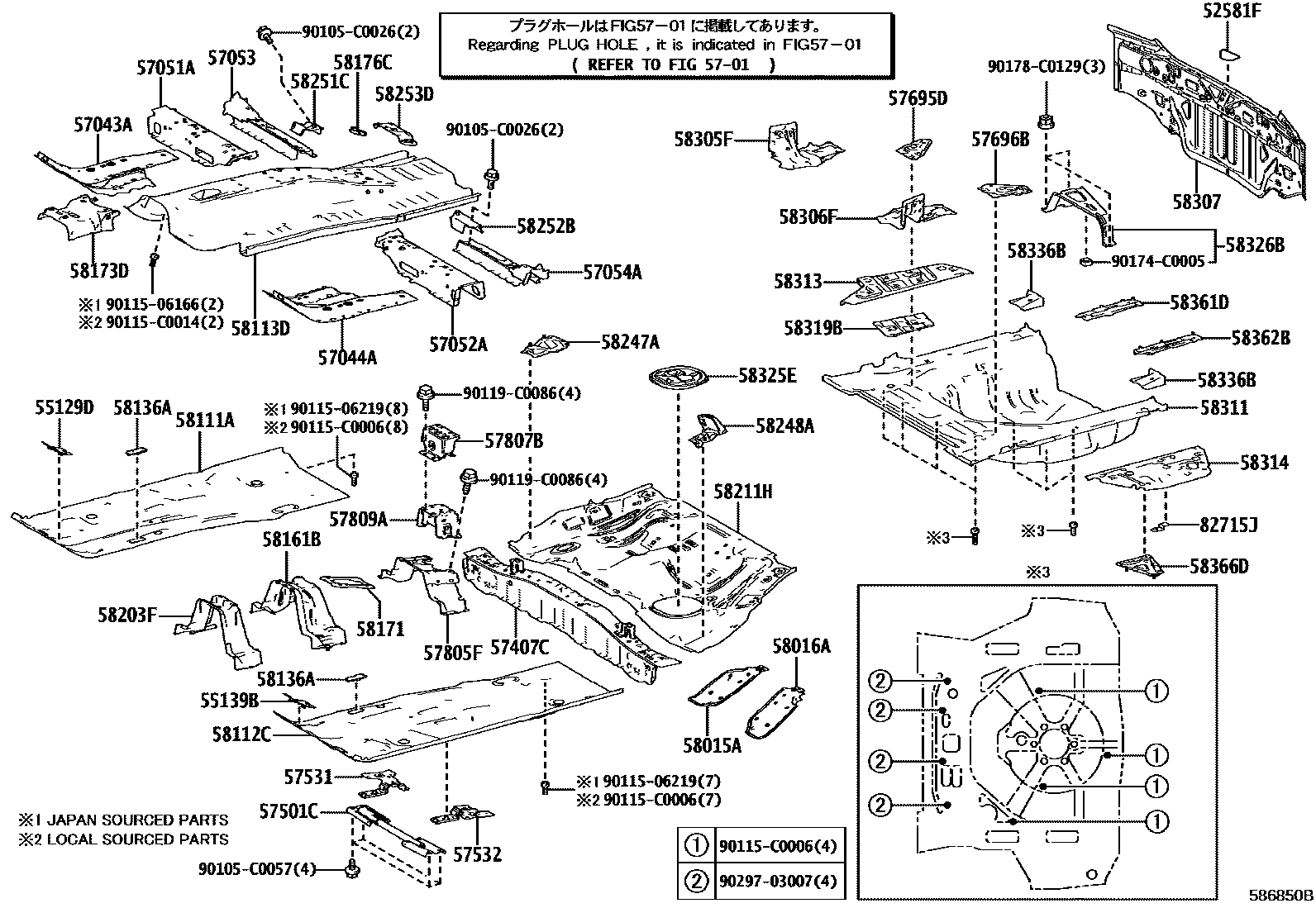

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR UNDER COVER

52581FPROTECTOR, REAR BUMPER

main52581-02080iZWE183201903-202207

55129DCOVER, DASH PANEL HOLE, RH

main55129-02040iZWE183201903-202207

55139BCOVER, DASH PANEL HOLE, LH

main55139-02030iZWE183201903-202207

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-02020iZWE183201903-202207

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-02020iZWE183201903-202207

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02040iZWE183201903-202207

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02030iZWE183201903-202207

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02040iZWE183201903-202207

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02050iZWE183201903-202207

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02110iZWE183201903-202207

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-12020iZWE183¥4,540201903-202207

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-02020iZWE183201903-202207

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-02020iZWE183201903-202207

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-02070iZWE183201903-202207

57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH

main57696-02050iZWE183201903-202207

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-02060iZWE183201903-202207

57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2

main57807-02040iZWE183201903-202207

57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3

main57809-02060iZWE183201903-202207

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02083iZWE183201903-202207

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02093iZWE183201903-202207

58111APAN, FRONT FLOOR, RH

main58111-02937iZWE183201903-202207

58112CPAN, FRONT FLOOR, LH

main58112-02906iZWE183201903-202207

58113DPANEL, FRONT FLOOR SIDE, NO.1 RH

main58113-02913iZWE183201903-202207

sub58113-02911

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-02040iZWE183201903-202207

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-02060iZWE183201903-202207

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02071iZWE183201903-202207

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-02010iZWE183201903-202207

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-02030iZWE183201903-202207

58203FBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

main58203-02030iZWE183201903-202207

58211HPAN, CENTER FLOOR

main58211-02460iZWE183201903-202207

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-02190iZWE183201903-202207

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-02040iZWE183201903-202207

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-02040iZWE183201903-202207

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-02020iZWE183201903-202207

58253DBRACKET, PARKING BRAKE CABLE

main58253-02060iZWE183201903-202207

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-02150iZWE183201903-202207

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-02160iZWE183201903-202207

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02430iZWE183201903-202207

58311PAN, REAR FLOOR

main58311-02163iZWE183201903-202207

58313PANEL, REAR FLOOR SIDE, RH

main58313-02270iZWE183201903-202207

58314PANEL, REAR FLOOR SIDE, LH

main58314-02073iZWE183201903-202207

58319BBRACKET, REAR FLOOR SIDE PANEL

main58319-02070iZWE183201903-202207

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02190iZWE183201903-202207

58326BBRACKET, FLEXIBLE HOSE MOUNTING

main58326-02010iZWE183201903-202207

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-02080iZWE183201903-202207

58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

main58361-02020iZWE183201903-202207

58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH

main58362-02010iZWE183201903-202207

58366DREINFORCEMENT, FUEL TANK SUPPORT, REAR

main58366-02030iZWE183201903-202207

82715JBRACKET, WIRING HARNESS CLAMP

main82715-0D100iZWE183201903-202207

90105C0026

main90105-C0026

90105C0057

main90105-C0057

9011506166

main90115-06166¥90

9011506219

main90115-06219¥80

90115C0006

main90115-C0006

90115C0014

main90115-C0014

90119C0086

main90119-C0086

90174C0005

main90174-C0005

90178C0129

main90178-C0129

9029703007

main90297-03007¥60

60 parts on this diagram · 2 diagrams in section
