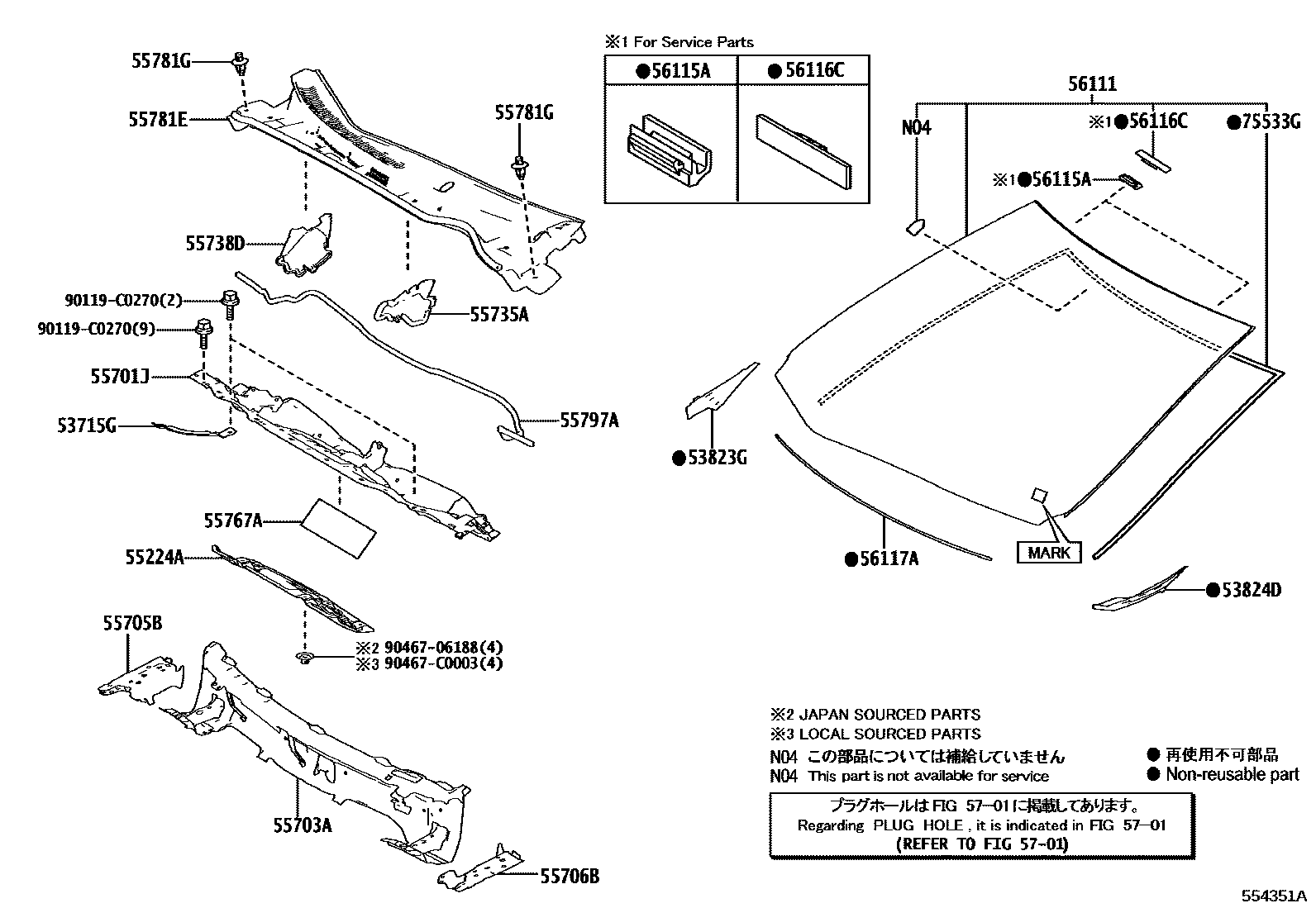

COWL PANEL & WINDSHIELD GLASS

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-02070iZWE183201903-202207

53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02130iZWE183201903-202207

53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02130iZWE183201903-202207

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02260iZWE183201903-202207

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02650iZWE183201903-202207

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-02330iZWE183201903-202207

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02180iZWE183201903-202207

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02180iZWE183201903-202207

55735APLATE, WATER GUARD, LH

main55734-02350iZWE183201903-202207

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-02200iZWE183201903-202207

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-02010iZWE183201903-202207

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02681iZWE183201903-202207

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-C0026iZWE183201903-202207

55797ASEAL, COWL WATER EXTRACT

main55797-02150iZWE183201903-202207

56111GLASS, WINDSHIELD

main56101-02G91iZWE183..GLI201903-202207

MARK=NSG(E000546)

main56101-0Z330iZWE183..GLI201903-202207

MARK=FUYAO(E006888)

main56101-0Z350iZWE183..GLXI,PREM201903-202207

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iZWE183¥130201903-202207

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZWE183¥120201903-202207

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02270iZWE183201903-202207

L=1262.5

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02180iZWE183201903-202207

GLASS MARK=NSG

main75533-02200iZWE183201903-202207

GLASS MARK=FUYAO

90119C0270

main90119-C0270

9046706188

main90467-06188¥160

90467C0003

main90467-C0003

23 parts on this diagram · 1 diagram in section
