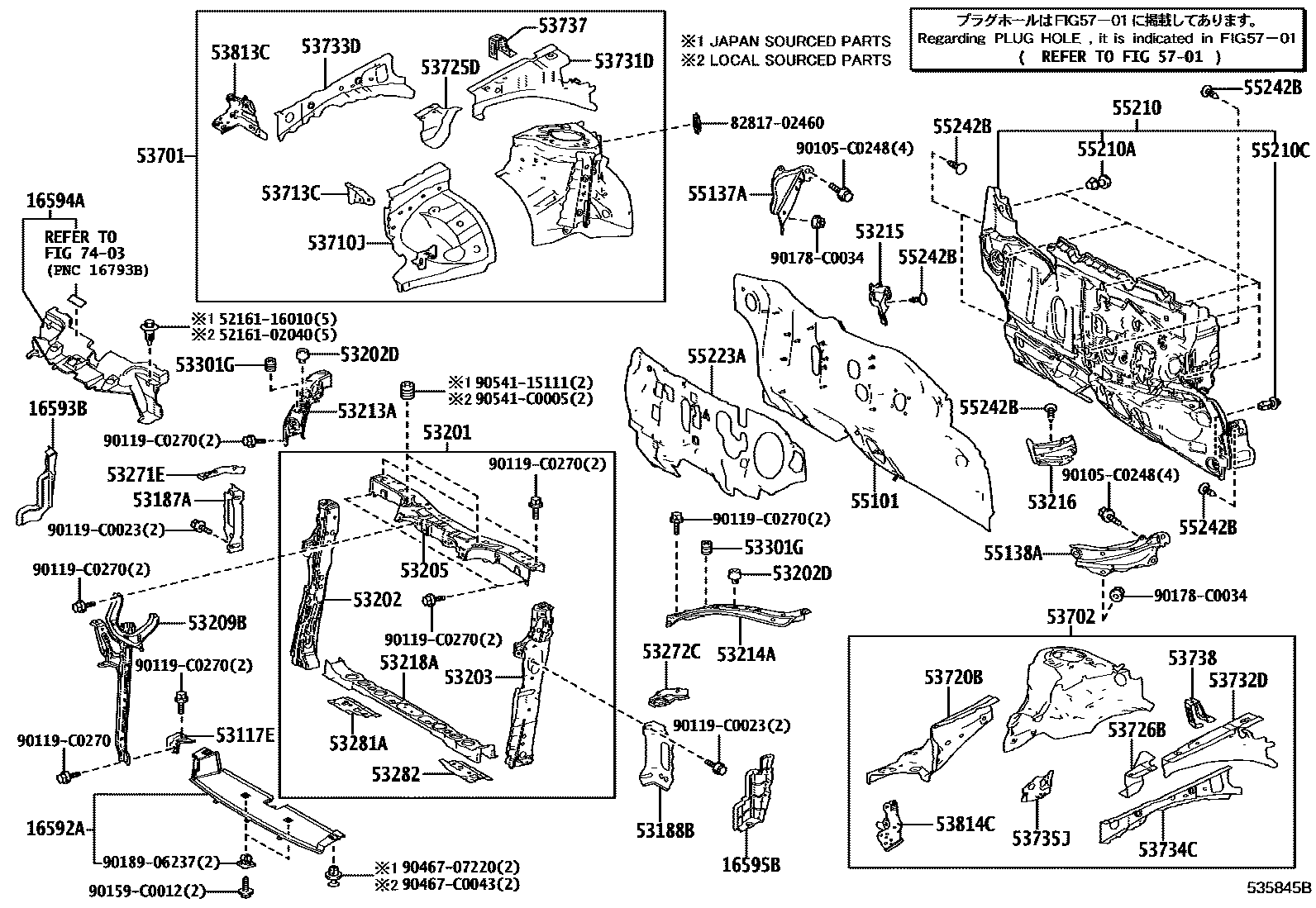

FRONT FENDER APRON & DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-0T010i201903-202207

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0T010i201903-202207

16594AGUIDE, RADIATOR AIR, NO.2

main16594-0T010i201903-201910

main16594-0T200i201911-202207

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-0T010i201903-202207

53117EBRACKET, RADIATOR GRILLE, LOWER

main53117-02060i201903-202207

53187ASTAY, RADIATOR SUPPORT, RH

main53187-02030i201903-202207

53188BSTAY, RADIATOR SUPPORT, LH

main53188-02030i201903-202207

53201SUPPORT SUB-ASSY, RADIATOR

main53201-02410i201903-202207

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-02220i201903-202207

53202DCUSHION, RADIATOR SUPPORT

main90541-09117i201903-202207

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-02220i201903-202207

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02280i201903-202207

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-02120i201903-201910

sub53209-02121

main53209-02121i201911-202207

53213ASUPPORT, RADIATOR, UPPER RH

main53213-02180i201903-202207

53214ASUPPORT, RADIATOR, UPPER LH

main53214-02170i201903-202207

53215SILENCER, FRONT PANEL, RH

main55211-02390i201903-202207

53216SILENCER, FRONT PANEL, LH

main55212-02030i201903-202207

53218ASUPPORT, RADIATOR, LOWER

main53218-02030i201903-202207

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-02100i201903-202207

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-02100i201903-202207

53281AREINFORCEMENT, FRONT BODY MOUNTING, RH

main53281-02030i201903-202207

53282REINFORCEMENT, FRONT BODY MOUNTING, LH

main53282-02030i201903-202207

53301GCUSHION, HOOD BUMPER

main53384-50010i201903-202006

main90541-C0006i202007-202207

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02380i201903-202207

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02300i201903-202207

53710JAPRON ASSY, FRONT FENDER, RH

main53710-02906i201903-202207

sub53710-02904

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-02050i201903-202207

53720BAPRON ASSY, FRONT FENDER, LH

main53720-02050i201903-202207

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-02030i201903-202207

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-02030i201903-202207

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02070i201903-202207

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02080i201903-202207

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-02030i201903-202207

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-02030i201903-202207

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-02030i201903-202207

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-02180i201903-202207

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-02150i201903-202207

53813CEXTENSION, FRONT FENDER, RH

main53813-02160i201903-202207

53814CEXTENSION, FRONT FENDER, LH

main53814-02160i201903-202207

55101PANEL SUB-ASSY, DASH

main55101-02840i201903-202207

55137ABRACE, DASH TO FRAME, RH

main55137-02122i201903-202207

55138ABRACE, DASH TO FRAME, LH

main55138-02112i201903-202207

55210INSULATOR ASSY, DASH PANEL

main55210-02571i201903-202207

55210ACLIP

main90467-11122i201903-202207

55210CCLIP

main90467-11127i201903-202207

55223AINSULATOR, DASH PANEL, OUTER

main55223-02361i201903-202207

55242BCLIP, FRONT PANEL SIDE SILENCER

main90467-C0045-C0i201903-202207

BLACK

5701

7403

5216102040CUSHION, REAR BUMPER GUARD, NO.1

main52161-02040

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

8281702460PROTECTOR, WIRING HARNESS, NO.1

main82817-02460

90105C0248

main90105-C0248

90119C0023

main90119-C0023

90119C0270

main90119-C0270

90159C0012

main90159-C0012

90178C0034

main90178-C0034

9018906237

main90189-06237

9046707220

main90467-07220

90467C0043

main90467-C0043

9054115111

main90541-15111

90541C0005

main90541-C0005

62 parts on this diagram · 1 diagram in section
