RADIATOR GRILLE

52161RPIECE, FRONT BUMPER

main52161-02040iZWE183201903-202207

(L)

main52161-16010iZWE183201903-202207

(J)

sub52161-0K040

53111GRILLE, RADIATOR

main53100-YK010iZWE183201903-202207

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-YK010iZWE183201903-202207

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-YK010iZWE183201903-202207

53125CMOULDING, RADIATOR GRILLE, NO.5

main53125-YK010iZWE183201903-202207

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-02180iZWE183201903-202207

7501

90109C0036

main90109-C0036

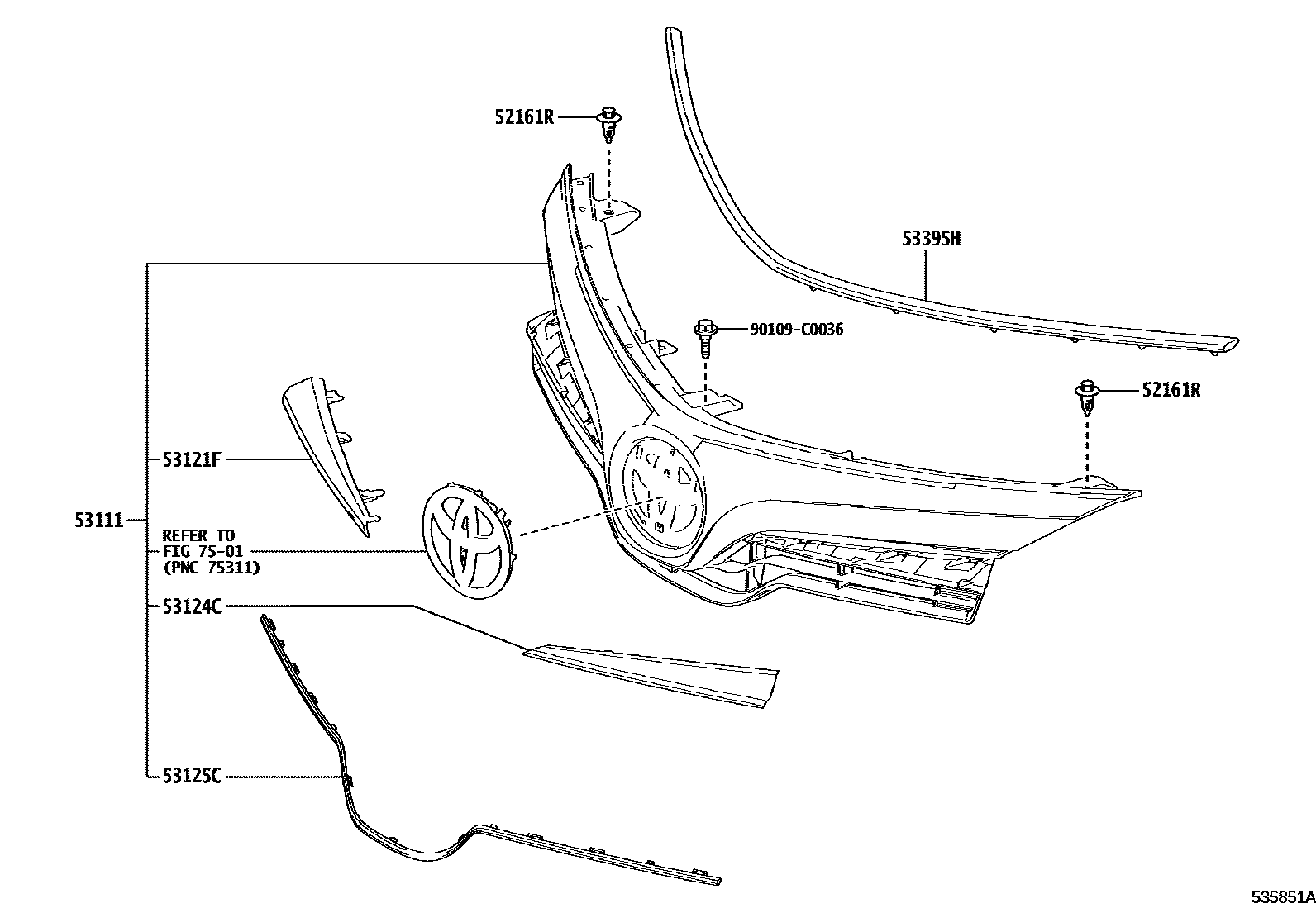

8 parts on this diagram · 1 diagram in section
