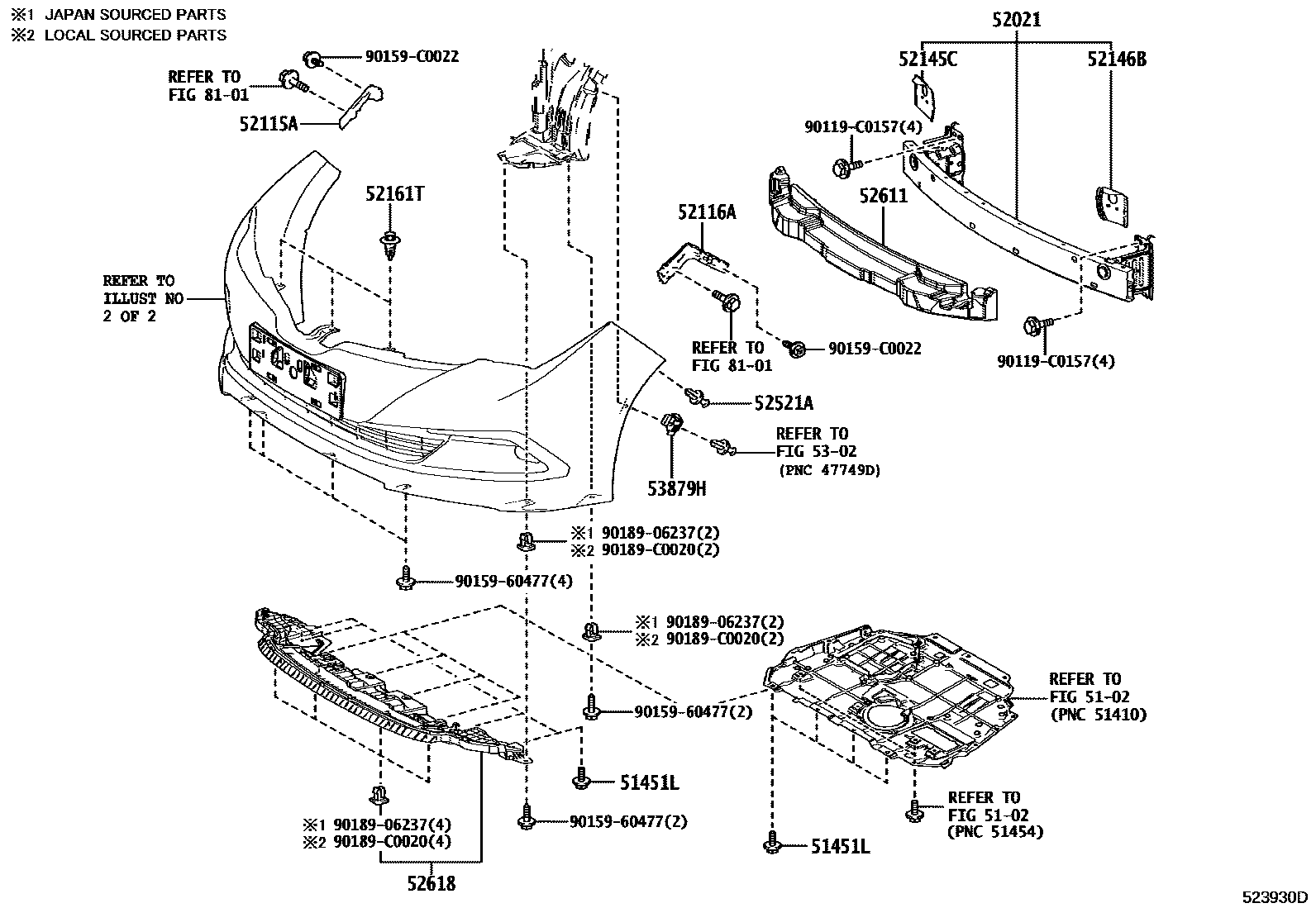

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

51451LBOLT, NO.1

main90119-C0186iZWE183201903-202207

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02280iZWE183201903-202207

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02210iZWE183201903-202207

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02210iZWE183201903-202207

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-02180iZWE183201903-202207

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-02160iZWE183201903-202207

52161TPIECE, FRONT BUMPER

main52161-02040iZWE183201903-202207

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170iZWE183201903-202207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-YK030iZWE183201903-202207

52618ABSORBER, FRONT BUMPER, LOWER

main52618-YK010iZWE183201903-202207

5302

53879HRETAINER, FRONT FENDER LINER

main53879-02060iZWE183201903-202207

(L)

main53879-58010iZWE183201903-202207

(J)

8101

90119C0157

main90119-C0157

9015960477

main90159-60477

90159C0022

main90159-C0022

9018906237

main90189-06237

90189C0020

main90189-C0020

19 parts on this diagram · 2 diagrams in section
