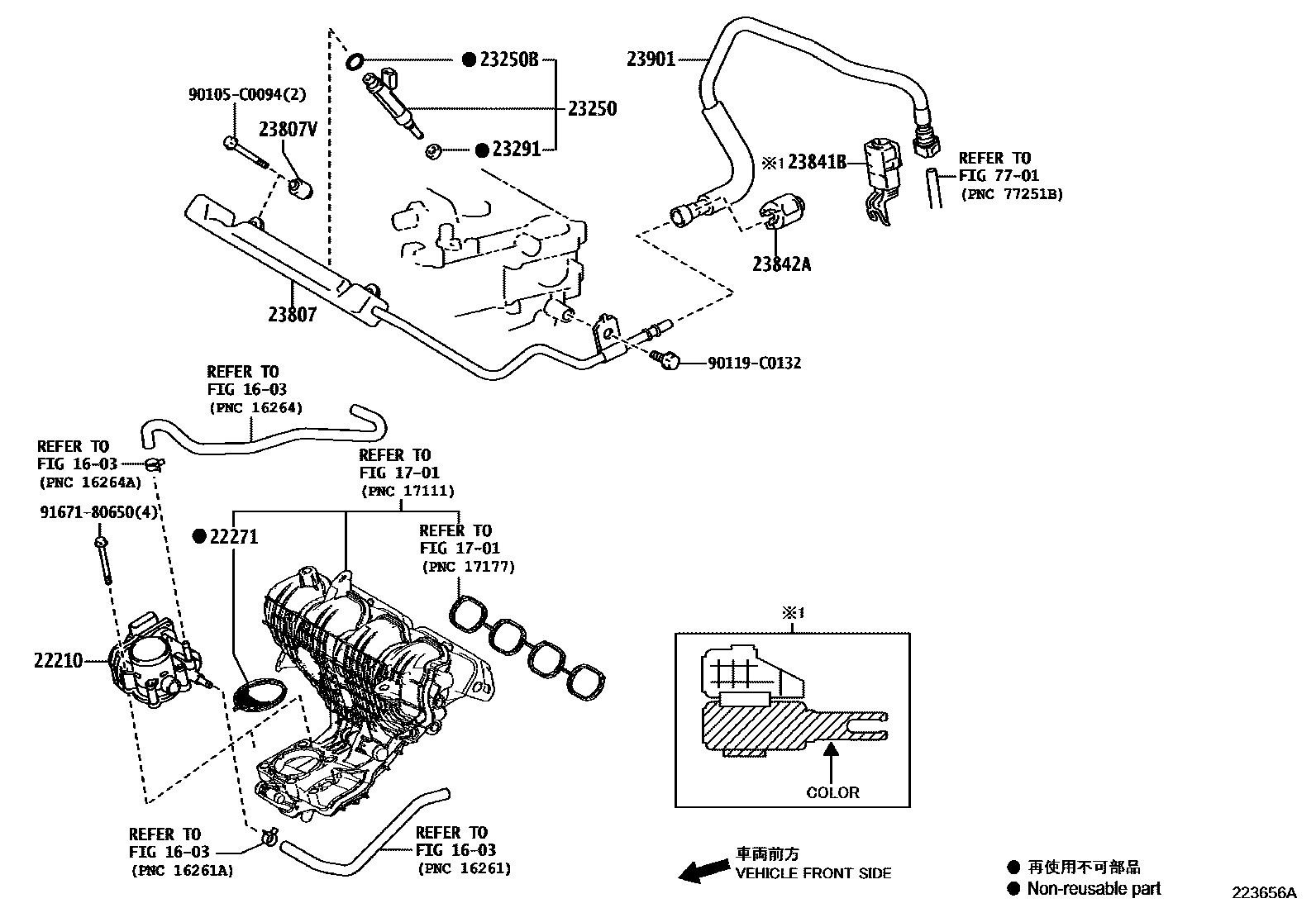

FUEL INJECTION SYSTEM
1603
1701
22210BODY ASSY, THROTTLE
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
(L)
(J)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
(L)
(J)
7701
90105C0094
main90105-C0094
90119C0132
main90119-C0132
9167180650
main91671-80650
16 parts on this diagram · 1 diagram in section
