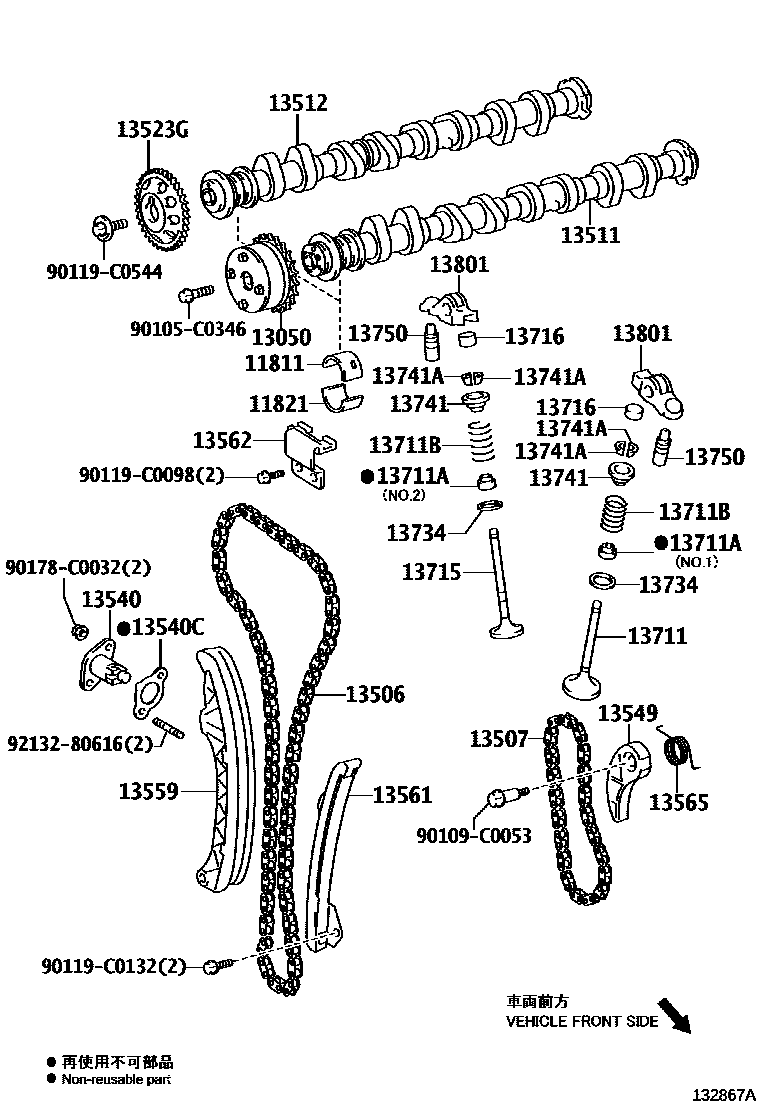

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523GSPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13565SPRING, CHAIN DAMPER
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
sub13715-0T070
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
90105C0346
main90105-C0346
90109C0053
main90109-C0053
90119C0098
main90119-C0098
90119C0132
main90119-C0132
90119C0544
main90119-C0544
90178C0032
main90178-C0032
9213280616
main92132-80616
32 parts on this diagram · 1 diagram in section
