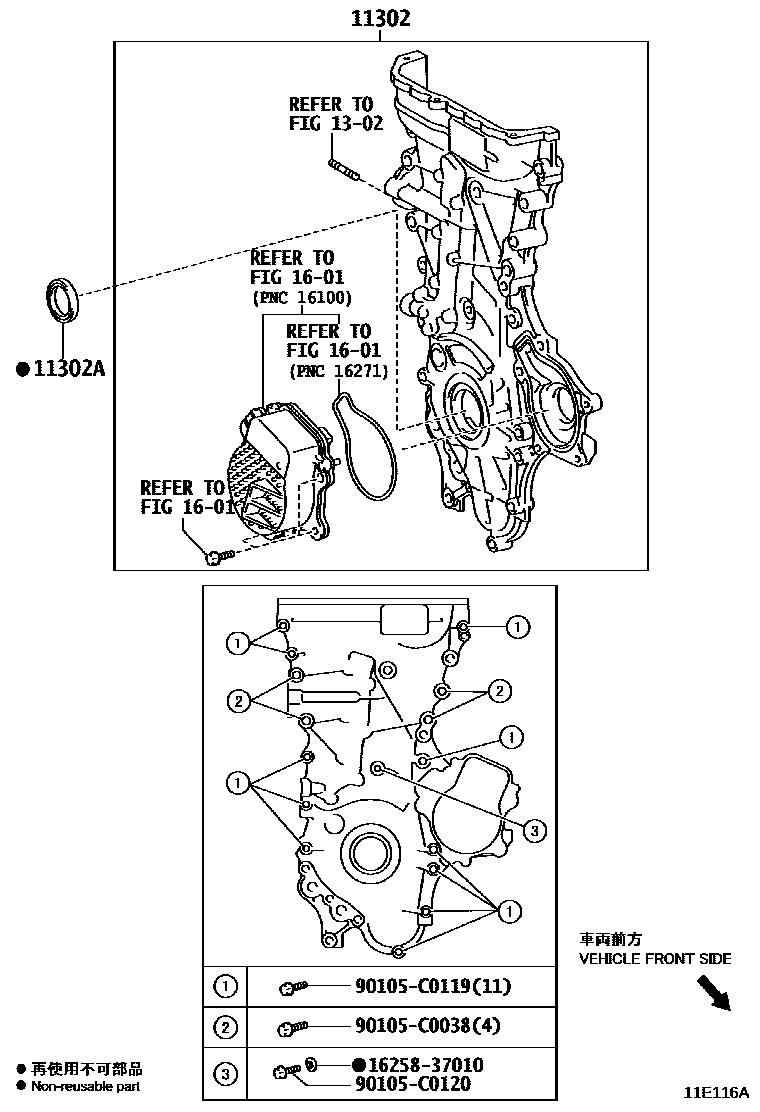

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T120i8ZRFXE..ZWE183201903-202207

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-T0024i8ZRFXE..ZWE183201903-202207

1302

1601

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

90105C0038

main90105-C0038

90105C0119

main90105-C0119

90105C0120

main90105-C0120

8 parts on this diagram · 1 diagram in section
