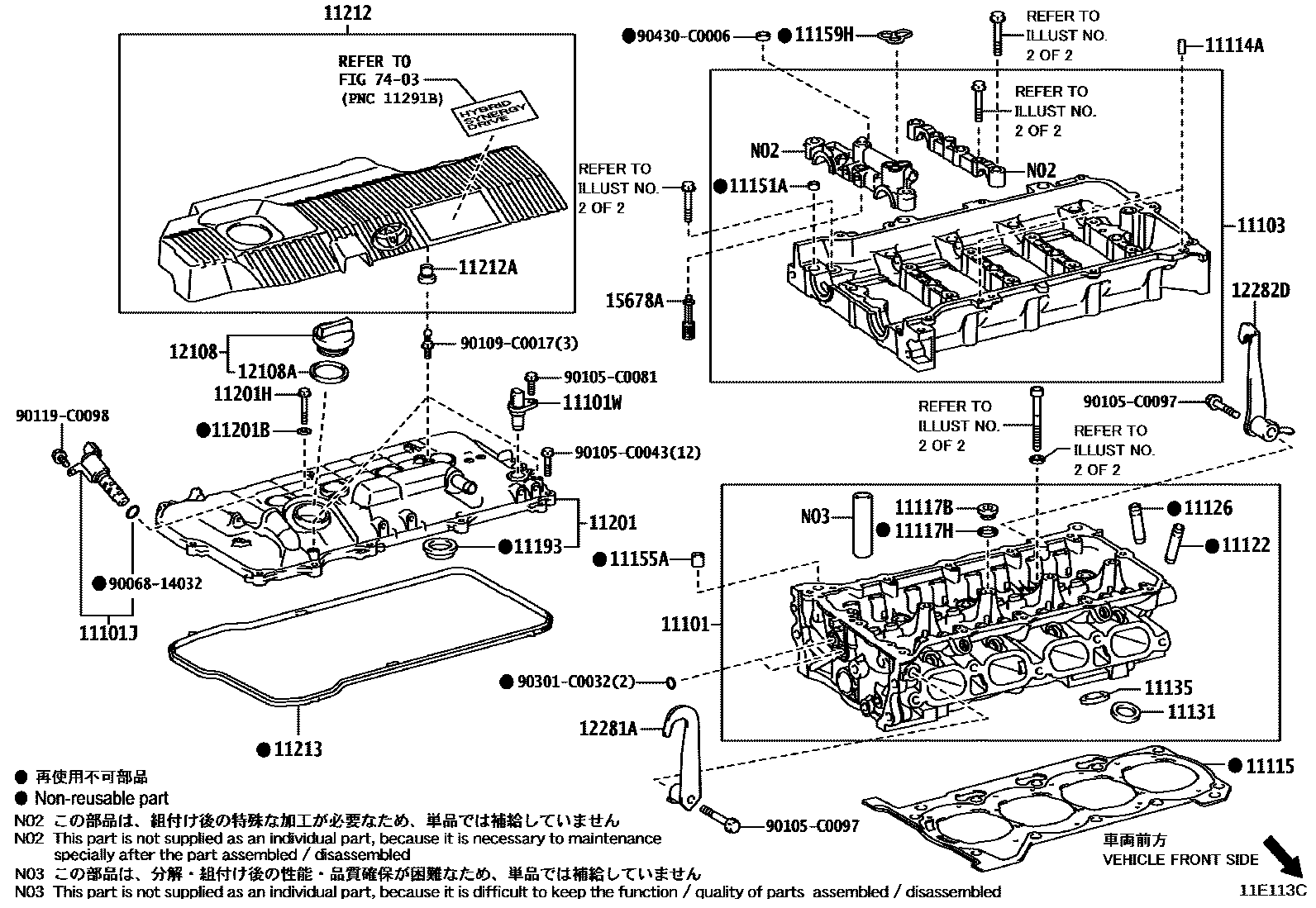

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11101WSENSOR, CRANK POSITION, NO.1
11103HOUSING SUB-ASSY, CAMSHAFT
11114APIN, STRAIGHT
L=14,OD=6
11115GASKET, CYLINDER HEAD
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
(L)
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
11212ACUSHION, CYLINDER HEAD COVER
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15678AFILTER, OIL CONTROL VALVE
7403
9006814032
main90068-14032
90105C0043
main90105-C0043
90105C0081
main90105-C0081
90105C0097
main90105-C0097
90109C0017
main90109-C0017
90119C0098
main90119-C0098
90301C0032
main90301-C0032
90430C0006
main90430-C0006
36 parts on this diagram · 2 diagrams in section
