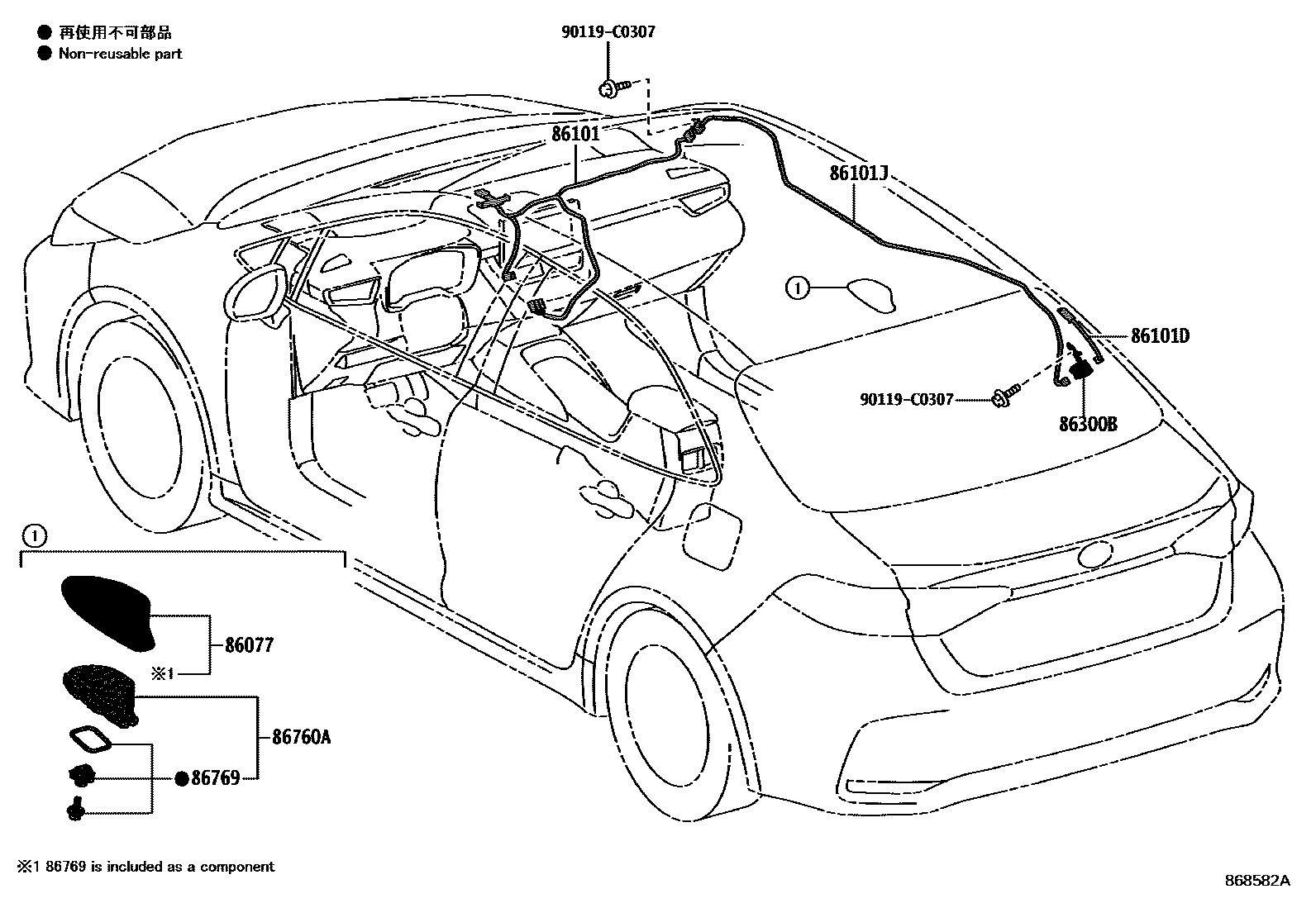

ANTENNA

86077COVER KIT, ANTENNA

main86077-30010-A0iMZEA12202104-202304

SUPER WHITE 2,040

main86077-30010-A2iMZEA12202104-202111

WHITE PEARL CS.,070

main86077-30010-A3iMZEA12202111-202304

PLATINUM WHITE PEARL MC.,089

main86077-30010-B0iMZEA12202104-202304

SILVER ME.,1F7

main86077-30010-C5iMZEA12,MZEH16202104-202304

SPARKLING BLACK PEARL CS.,220

main86077-30010-D4iMZEA12202104-202304

RED MC.,3T3

main86077-30010-E7iMZEA12202104-202304

AVANT-GARDE BRONZE ME.,4V8

main86077-30010-J8iMZEA12,MZEH16202305

NEBULA BLUE ME.,8X2

main86077-30010-P3iMZEA12,MZEH16202305

SILVER ME.,1L0

86101CORD SUB-ASSY, ANTENNA

main86101-02L50iMZEA12202104-202207

main86101-02S80iMZEA12202207-202304

main86101-02Z90iMZEA12,MZEH16202305

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-02J60iMZEA12202104-202304

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-02S70iMZEA12202104-202304

main86101-0Z150iMZEA12,MZEH16202305

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02630iMZEA12202104-202304

main86300-02670iMZEA12,MZEH16202305

86760AANTENNA ASSY, TELEPHONE

main86760-0N020iMZEA12202104-202304

86769HOUSING, ROOF ANTENNA

main86769-0N010iMZEA12202104-202304

90119C0307

main90119-C0307

8 parts on this diagram · 1 diagram in section
