WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE 1/2 0008 1ENGINE 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1INSTRUMENT PANEL 0012 1DOOR 0013 1FLOOR & ROOF 0014 1HIGH TENSION CABLE 0015 1SEAT 0016 1CLAMP & BRACKET 0017 1CLAMP & BRACKET 0018 1CONNECTOR 1/2 0019 1CONNECTOR 2/2

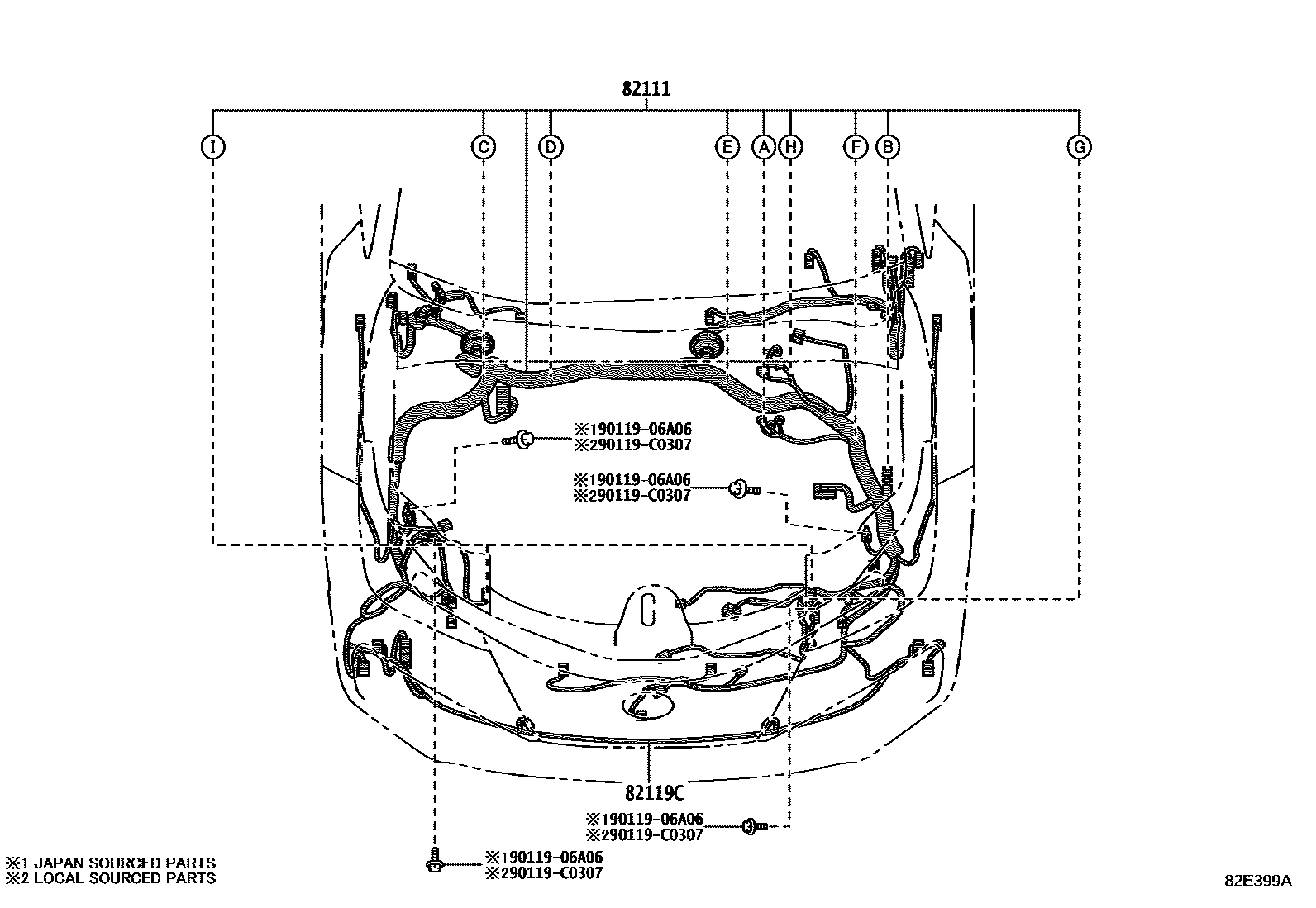

82111WIRE, ENGINE ROOM MAIN

main82111-F2L70iMZEA12..E,N202104-202207

main82111-F2L80iMZEA12..E202104-202207

LEATHER PACKAGE

main82111-FEN50iMZEA12..E,N202305

main82111-FEN60iMZEA12..E202305

LEATHER PACKAGE

main82111-FEN70iMZEH16..E,N202309

main82111-FEN80iMZEH16..G202309

main82111-FEN90iMZEA12..E,N202207-202304

main82111-FEP00iMZEA12..E202207-202304

LEATHER PACKAGE

main82111-FER30iMZEH16..E202309

LEATHER PACKAGE

82119CWIRE, ENGINE ROOM, NO.5

main82119-02150iMZEA12202104-202304

9011906A06

main90119-06A06

90119C0307

main90119-C0307

4 parts on this diagram · 19 diagrams in section
