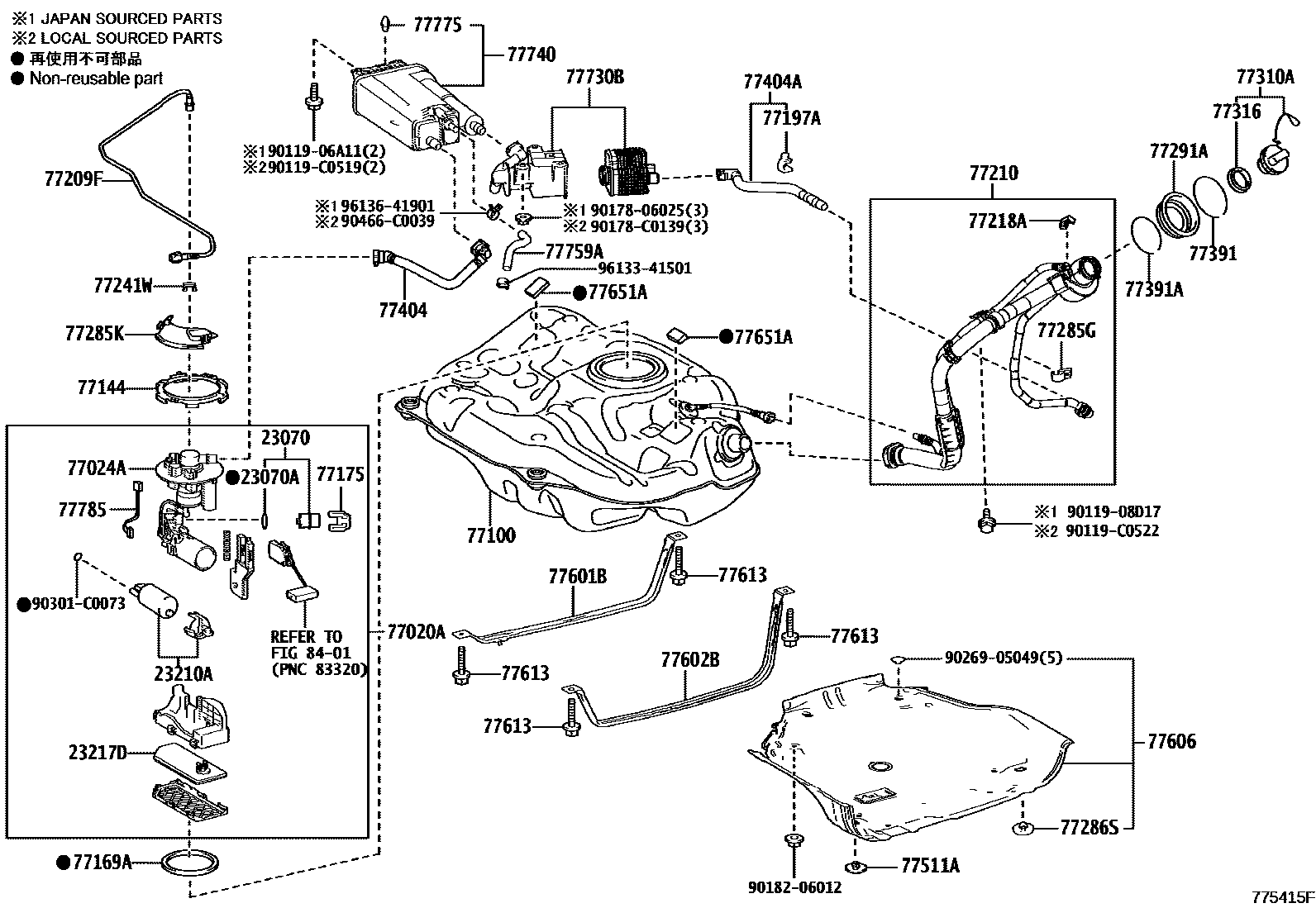

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER 0006 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM20..MZEA12¥2,560202104-202304

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM20..MZEA12,MZEH16¥140202104-202304

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-F0010iM20..MZEA12202110-202304

main23210-F2010iM20..MZEA12202104-202110

23217DFILTER, FUEL PUMP

main23217-24020iM20..MZEA12,MZEH16202104-202304

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-F4080iMZEA12202104-202304

main77020-F4100iMZEH16202309

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-F4090iMZEA12202104-202304

main77024-F4100iMZEH16202309

77100TANK ASSY, FUEL

main77001-02C30iMZEH16202309

main77001-F4070iMZEA12202104-202304

77144RETAINER, FUEL PUMP GAUGE

main77144-F4020iMZEA12202104-202304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R050iMZEH16202309

(L)

main77169-47030iMZEA12¥220202104-202304

main77169-47030iMZEH16¥220202309

(J)

77175SUPPORT, FUEL SUCTION, NO.2

main77175-F4020iMZEA12202104-202304

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-07010iMZEA12202204-202304

(L)

main77197-47010iMZEA12¥380202204-202304

(J)

main77197-47010iMZEA12¥380202104-202204

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02401iMZEH16202309

main77209-F4080iMZEA12202104-202304

77210PIPE ASSY, FUEL TANK FILLER

main77210-02872iMZEA12202104-202304

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-02140iMZEA12202104-202304

main77218-02150iMZEA12202305

77241WCLIP, TUBE JOINT

main77241-02020iMZEA12202104-202304

77285GCLAMP, FUEL TUBE, NO.1

main77285-06580iMZEA12202104-202304

77285KCLAMP, FUEL TUBE, NO.1

main77285-02230iMZEA12202104-202304

main77285-0R310iMZEH16202309

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA12¥200202104-202304

(J)

main77286-F4040iMZEH16202309

main77286-F4040iMZEA12202104-202304

(L)

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02341iMZEA12202104-202304

77310ACAP ASSY, FUEL TANK

main77300-06110iMZEH16202309

main77300-0R010iMZEA12202104-202304

77316GASKET, FUEL TANK CAP

main77316-0F020iMZEA12202104-202304

main77316-75020iMZEH16¥200202309

77391RING, FUEL INLET BOX

main77391-02160iMZEA12,MZEH16202104-202304

77391ARING, FUEL INLET BOX

main77391-0R030iMZEA12202104-202304

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-02440iMZEH16202309

main77404-F4070iMZEA12202104-202304

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-02290iMZEH16202309

main77404-F4100iMZEA12202104-202304

77511ABRACKET, FUEL TANK

main77512-07010iMZEA12202104-202304

(L)

main77512-35140iMZEA12,MZEH16¥230202104-202304

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-F4040iMZEA12202104-202304

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-F4040iMZEA12202104-202304

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-F4050iMZEA12202104-202304

77613BOLT, FUEL TANK BAND SET

main90119-10995iMZEA12¥190202104-202304

(J)

main90119-C0526iMZEA12202104-202304

(L)

77651ACUSHION, FUEL TANK, NO.1

main77651-F4020iMZEA12202104-202304

77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE

main77730-02030iMZEA12202104-202304

77740CANISTER ASSY, CHARCOAL

main77740-02260iMZEH16202309

main77740-F4020iMZEA12202104-202304

77759AHOSE, CHARCOAL CANISTER

main77759-12120iMZEH16202309

main77759-F4040iMZEA12202104-202304

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-33010iMZEA12202104-202304

77785HARNESS, FUEL PUMP

main77785-06190iMZEA12202104-202304

main77785-76010iMZEH16¥870202309

8401

9011906A11

main90119-06A11¥60

9011908D17

main90119-08D17¥100

90119C0519

main90119-C0519

90119C0522

main90119-C0522

9017806025

main90178-06025¥80

90178C0139

main90178-C0139

9018206012

main90182-06012¥60

9026905049

main90269-05049¥40

90301C0073

main90301-C0073

90466C0039

main90466-C0039

9613341501

main96133-41501¥90

9613641901

main96136-41901¥120
