ARMREST & VISOR

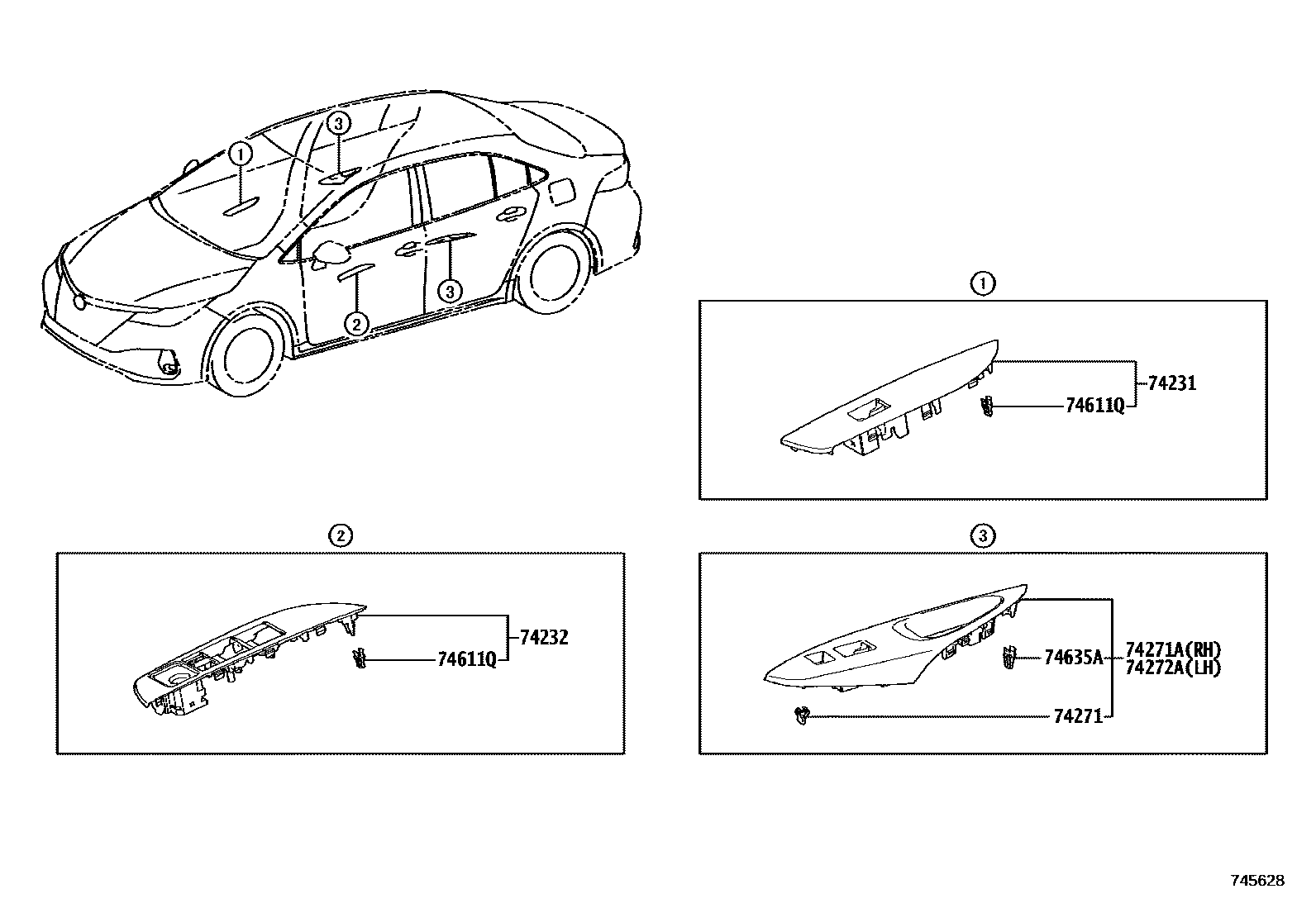

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02K10i202104-202304

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02K80i202104-202304

main74232-02K90i202104-202304

74271RETAINER, DOOR ARMREST

main55416-60030i¥80202104-202304

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02A90i202104-202304

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02A80i202104-202304

74611QCLIP

main90467-C0031i202104-202304

74635ACLIP

main90467-C0031i202104-202304

7 parts on this diagram · 2 diagrams in section
