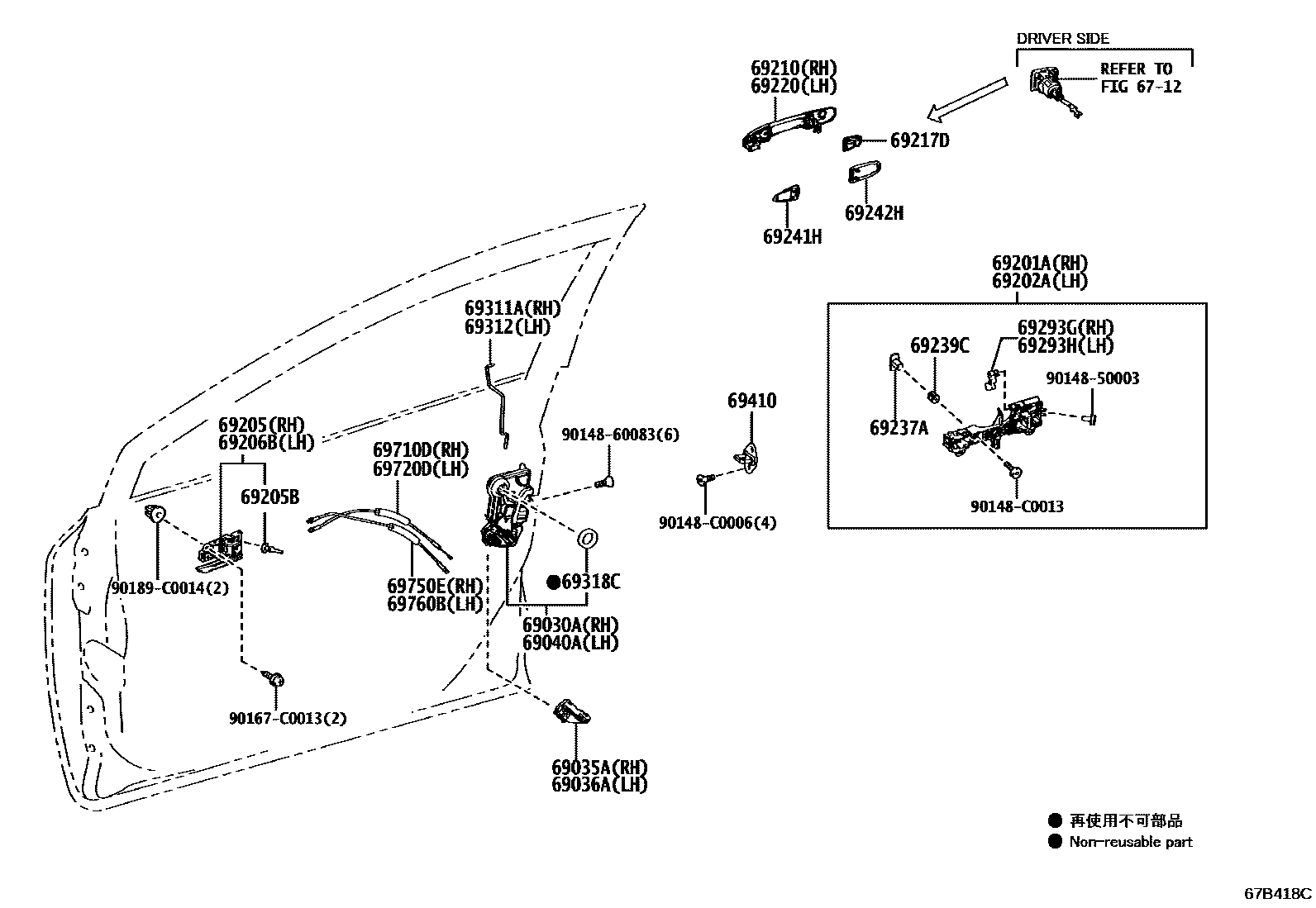

FRONT DOOR LOCK & HANDLE
6712
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
WHITE,TRIM8#
WHITE,TRIM80
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM2#,81
TAUPE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
WHITE,TRIM8#
WHITE,TRIM80
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM2#,81
TAUPE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
PLATED,LEATHER PACKAGE
PLATED
PLATINUM WHITE PEARL MC.,089
SUPER WHITE 2,040
SILVER ME.,1L0
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
NEBULA BLUE ME.,8X2
LEATHER PACKAGE
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SILVER ME.,1L0
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
NEBULA BLUE ME.,8X2
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
PLATED
PLATED,LEATHER PACKAGE
PLATINUM WHITE PEARL MC.,089
SUPER WHITE 2,040
SILVER ME.,1L0
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
NEBULA BLUE ME.,8X2
LEATHER PACKAGE
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SILVER ME.,1L0
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
NEBULA BLUE ME.,8X2
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
90148C0006
main90148-C0006
90148C0013
main90148-C0013
90167C0013
main90167-C0013
90189C0014
main90189-C0014
33 parts on this diagram · 1 diagram in section
