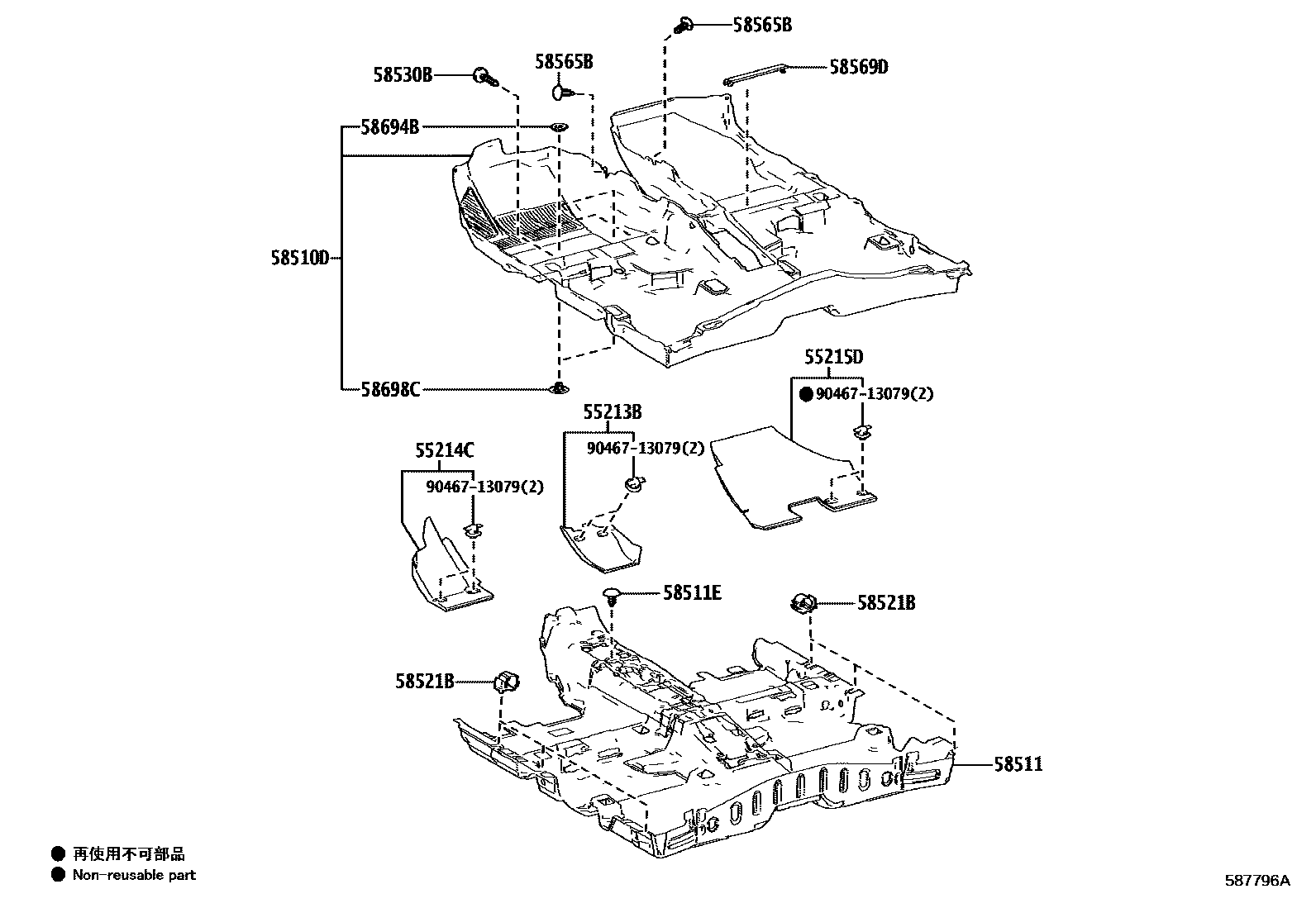

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR CARPET 0004 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-02390iMZEA12202104-202304

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-02350iMZEA12202104-202304

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-02250iMZEA12202104-202304

58510DCARPET ASSY, FLOOR, FRONT

main58510-02V00-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

sub58510-02X00

main58510-02V00-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

sub58510-02X00

main58510-02W80-C0iMZEH16202309

BLACK/BLACK,TRIM2#,8#

main58510-02X00-C0iMZEA12202305

BLACK/BLACK,TRIM2#,8#

58511MAT, FLOOR, FRONT

main58511-02490iMZEH16202309

main58511-02530iMZEA12202104-202304

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-C0054-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main90467-C0054-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

58521BHOOK, FLOOR CARPET

main58521-F4010iMZEA12202104-202304

58530BCLIP(FOR FRONT FLOOR CARPET)

main64726-10020-C2iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

main90467-C0059-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main90467-C0059-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

58565BCLIP

main90467-C0016-C1iMZEA12..N202104-202304

BLACK,TRIM2#

main90467-C0016-C1iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main90467-C0016-C1iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02170-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main58569-02170-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main58569-02170-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

58694BPLATE, MAT SET, UPPER

main58694-78010iMZEA12¥130202104-202304

58698CPLATE, MAT SET, LOWER

main58698-78010iMZEA12¥230202104-202304

9046713079

main90467-13079¥120

13 parts on this diagram · 4 diagrams in section
