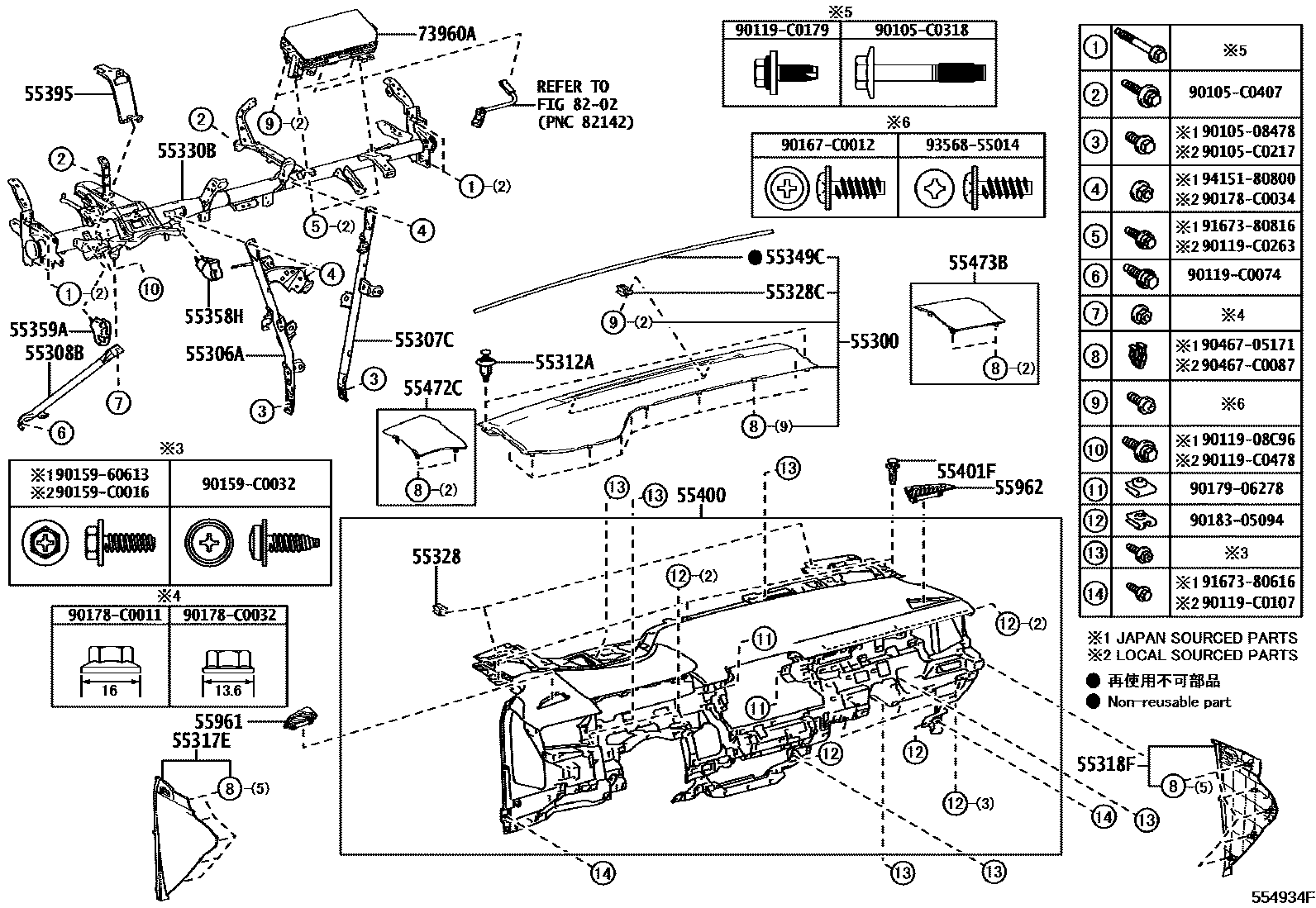

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-02220-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main55300-02250-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02510iMZEA12,MZEH16202305

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02620iMZEA12,MZEH16202305

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-02090iMZEA12202104-202304

55312ACLIP, INSTRUMENT PANEL

main90467-07217×2iMZEA12,MZEH16202305

(J)

main90467-C0051×2iMZEA12202104-202304

(L)

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-02660-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

main55317-02790-C0iMZEA12..N202104-202304

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-02420-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main55318-02440-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100×2iMZEA12202104-202304

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-02800×2iMZEA12202104-202304

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02660iMZEA12202104-202304

main55330-02710iMZEA12,MZEH16202305

55349CCUSHION, INSTRUMENT PANEL

main55349-02390iMZEA12202104-202304

55358HPROTECTOR, INSTRUMENT PANEL

main55358-02200iMZEA12202104-202304

55359APROTECTOR, INSTRUMENT PANEL, NO.2

main55359-02150iMZEA12202104-202304

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-02140iMZEA12202104-202304

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-02520-C1iMZEA12..N202104-202304

SOFT BLACK,TRIM2#

main55400-02530-C1iMZEA12..E,G202104-202304

SOFT BLACK,TRIM2#,4#

main55400-02530-C2iMZEA12,MZEH16..E,G202305

SOFT BLACK,TRIM2#,8#

55401FCLIP(FOR SAFETY PAD)

main52161-02040×3iMZEA12202104-202304

(L)

main52161-16010×3iMZEA12,MZEH16202305

(J)

sub52161-0K040

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-02190-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main55472-02220-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-02170-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main55473-02210-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02340-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02290-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02330iMZEA12,MZEH16202305

main73960-02470iMZEA12202104-202304

8202

9010508478

main90105-08478

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90105C0407

main90105-C0407

9011908C96

main90119-08C96

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0179

main90119-C0179

90119C0263

main90119-C0263

90119C0478

main90119-C0478

9015960613

main90159-60613

90159C0016

main90159-C0016

90159C0032

main90159-C0032

90167C0012

main90167-C0012

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

90467C0087

main90467-C0087

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

47 parts on this diagram · 4 diagrams in section
